DBA530X

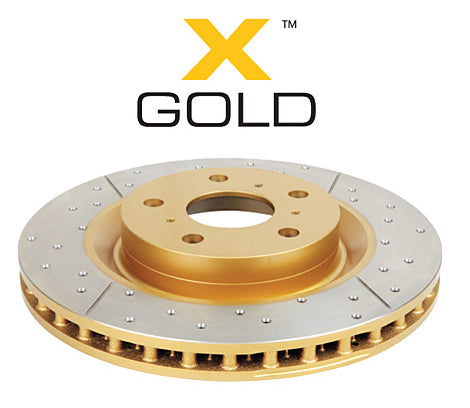

Discover X Gold Brake Rotors: Premium Performance, Stunning Style

X Gold brake rotors combine the reliability of our Street Series with a superior non-directional cross-drilled and slotted design, featuring an eye-catching gold finish on the rotor hub.

Our innovative cross-drilled and slotted pattern enhances brake pad friction, allowing for efficient dust and gas dispersal. This design results in exceptional braking performance, giving your vehicle superior stopping power and control.

Compared to the T2 slot, X Gold offers similar performance benefits, making it a popular choice for show cars seeking both style and substance.

Diameter [mm]	235
Disc Vent	Kangaroo Paw
Number of Holes	4
Inner Diameter [mm]	55
Minimum Thickness [mm]	16
Thickness [mm]	18
Height [mm]	45.5
Stage	Stage 1
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E11 90R-02C01704/72735

Compatibility
MAZDA	121	1.3 DB - Manual (1991-1996)	1991-1996	Brake Caliper: Sumitomo	Front	Brake Pads: DB406	Disc Diameter [mm]: 235
MAZDA	323	1.3 BA1 (1995-1998)	1995-1998	Brake Caliper: Sumitomo	Front	Brake Pads: DB406	Disc Diameter [mm]: 235
MAZDA	323	1.3 BG1 (1989-1991)	1989-1991	Brake Caliper: Sumitomo	Front	Brake Pads: DB406	Disc Diameter [mm]: 235
MAZDA	323	1.3 BG1 (1991-1995)	1991-1995	Brake Caliper: Sumitomo	Front	Brake Pads: DB406	Disc Diameter [mm]: 235
MAZDA	323	1.6 BG1 (1989-1991)	1989-1991	Brake Caliper: Sumitomo	Front	Brake Pads: DB406	Disc Diameter [mm]: 235
MAZDA	323	1.6 BG1 (1991-1994)	1991-1994	Brake Caliper: Sumitomo	Front	Brake Pads: DB406	Disc Diameter [mm]: 235
MAZDA	323	1.7 D (1989-1993)	1989-1993	Brake Caliper: Sumitomo	Front	Brake Pads: DB1158	Disc Diameter [mm]: 235
MAZDA	323 Estate	1.7 D (1989-1993)	1989-1993	Brake Caliper: Sumitomo	Front	Brake Pads: DB1158	Disc Diameter [mm]: 235
MAZDA	MX5 (Mk1) (NA)	1.6 (1989-1998)	1989-1998	Brake Caliper: Sumitomo	Front	Brake Pads: DB1178	Disc Diameter [mm]: 235
