DBA52921.1LS

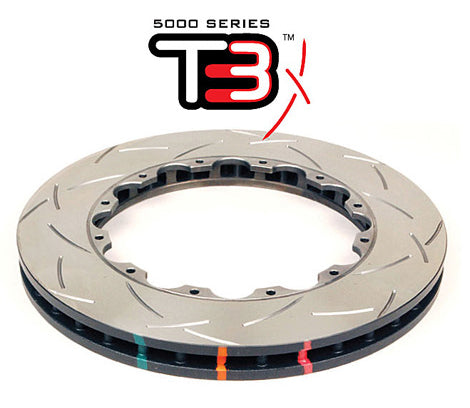

5000 series - T3 Slotted - Rotor Only Left Hand

Diameter [mm]	304
Thickness [mm]	32
Disc Vent	60 Curved Vanes
Annulus [mm] (Maximum useable pad width)	55,5
Pitch Circle Diameter (P.C.D.)	177,8
Inside Diameter [mm]	191
Diameter & Number of Bolt Holes [mm]	6.4 (x12)
Air Gap [mm]	14
Offset [mm]	0
Flange Inside Diameter [mm]	164,3
Flange Thickness [mm]	6,6
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Not Included
