DBA4793XS

Feature Description	Advantage	Benefit
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product
CBN (Cubic Boron Nitride) machine turned	Reduced DTV (Disc thickness variation) and parallelism	Less occurrence of brake shudder or brake pedal

Ideal for enthusiasts looking for an upgrade over stock rotors.

Premium non-directional cross-drilled and slotted design of DBA brake rotors increases the number of outgassing exit points allowing more brake pad friction gasses to escape through.

Brake rotors from DBA Street Series feature with "Kangaroo Paw” – 144 diamond and tear drop pillar ventilation system. Increased surface area results in greater heat dissipation and thus minimises brake fade and increases braking effectiveness of disc brake. CBN (Cubic Boron Nitride) machine turned reduces DTV (Disc thickness variation) and parallelism which brings less occurrence of brake shudder or brake pedal ‘judder’.

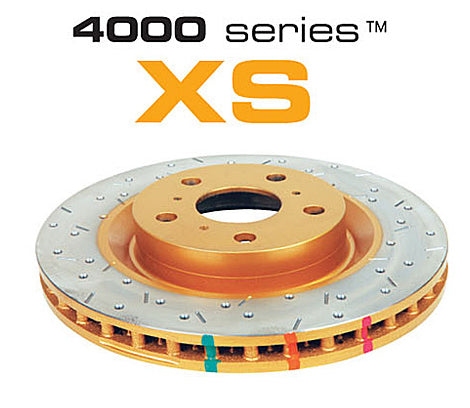

While providing a similar performance benefit to the T3 slot, the 4000 XS Series is a popular alternative for open wheel and show cars. We recommend the T3 slot design for more intensive braking applications.

Diameter [mm]	312
Disc Vent	Kangaroo Paw
Number of Holes	6
Inner Diameter [mm]	106
Minimum Thickness [mm]	16
Thickness [mm]	18
Height [mm]	68
Pitch Circle [mm]	140
Stage	Stage 3
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Compatibility
TOYOTA	Landcruiser GRJ120	4.0 (2003-2008)	2003-2008	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser KDJ120	3.0 TD (2003-2009)	2003-2009	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser KDJ125	3.0 TD (2003-2009)	2003-2009	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser KDJ90	3.0 TD (2000-2003)	2000-2003	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser KDJ95	3.0 TD (2000-2003)	2000-2003	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser KZJ90	3.0 TD (1996-2001)	1996-2001	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser KZJ95	3.0 TD (1996-2001)	1996-2001	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser RZJ90	2.7 (1997-2002)	1997-2002	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser RZJ95	2.7 (1997-2002)	1997-2002	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser VZJ90	3.4 (1996-2002)	1996-2002	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
TOYOTA	Landcruiser VZJ95	3.4 (1996-2003)	1996-2003	Rear	Brake Pads: DB1200	Disc Diameter [mm]: 312
