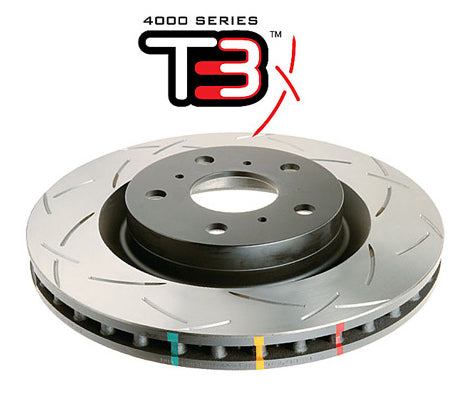

DBA42593S

Feature Description	Advantage	Benefit
"T3 Slot 48 precision CNC machined slots"	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product

Diameter [mm]	330
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	130.00
Minimum Thickness [mm]	26
Thickness [mm]	28
Height [mm]	75
Pitch Circle [mm]	98
Stage	Stage 4
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E11*90R02/06*60533*00

Compatibility
PORSCHE	Panamera (2nd Gen) (971)	2.9 Twin Turbo 440BHP Cast Iron Disc Only (2016-)	2016-	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (2nd Gen) (971)	2.9 Twin Turbo E-Hybrid 462BHP Cast Iron Disc Only - PR-1LN (2016-)	2016-	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (2nd Gen) (971)	2.9 Twin Turbo E-Hybrid 462BHP Cast Iron Disc Only (2016-)	2016-	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (2nd Gen) (971)	3.0 Turbo 330BHP Cast Iron Disc Only - PR-1LN (2016-)	2016-	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (2nd Gen) (971)	3.0 Turbo 330BHP Cast Iron Disc Only (2016-)	2016-	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	3.0 Supercharged Hybrid 380BHP Cast Iron Disc Only (2011-2013)	2011-2013	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	3.0 Supercharged Hybrid 416BHP Cast Iron Disc Only (2013-2016)	2013-2016	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	3.0 TD 250BHP Cast Iron Disc Only (2011-2013)	2011-2013	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	3.0 TD 263BHP Cast Iron Disc Only (2013-2016)	2013-2016	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	3.0 TD 300BHP Cast Iron Disc Only (2013-2016)	2013-2016	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	3.0 Twin Turbo 420BHP Cast Iron Disc Only (2013-2016)	2013-2016	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	3.6 300BHP Cast Iron Disc Only (2010-2013)	2010-2013	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	3.6 310BHP Cast Iron Disc Only (2013-2016)	2013-2016	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
PORSCHE	Panamera (970)	4.8 400BHP Cast Iron Disc Only (2009-2013)	2009-2013	Brake Caliper: Brembo	Rear	Disc Diameter [mm]: 330
