DBA
DBA42168S
DBA42168S
Prezzo di listino
€270,03 EUR
Prezzo di listino
Prezzo scontato
€270,03 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
| Feature Description | Advantage | Benefit |

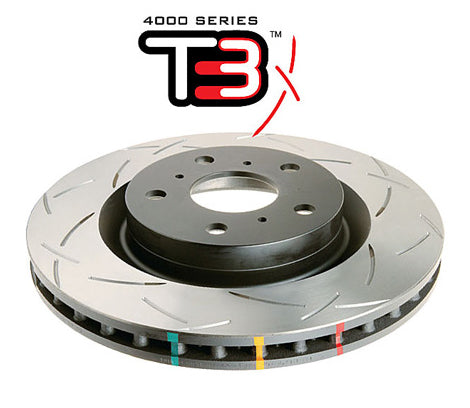

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 316 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 63.50 |
| Minimum Thickness [mm] | 26,5 |
| Thickness [mm] | 28 |
| Height [mm] | 51.00 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60529*00 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| FORD | Mondeo Estate (Mk5) | 1.0 Turbo 125BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 1.0 Turbo 125BHP pads with fitted wear clip (2014-) | 2014- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
| FORD | Mondeo Estate (Mk5) | 1.5 Turbo 160BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 1.5 Turbo 160BHP pads with fitted wear clip (2014-) | 2014- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
| FORD | Mondeo Estate (Mk5) | 1.6 TD 115BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 1.6 TD 115BHP pads with fitted wear clip (2014-) | 2014- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
| FORD | Mondeo Estate (Mk5) | 2.0 Hybrid 187BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 2.0 Hybrid 187BHP pads with fitted wear clip (2014-) | 2014- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
| FORD | Mondeo Estate (Mk5) | 2.0 TD 150BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 2.0 TD 150BHP pads with fitted wear clip (2014-) | 2014- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
| FORD | Mondeo Estate (Mk5) | 2.0 TD 180BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 2.0 TD 180BHP pads with fitted wear clip (2014-) | 2014- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
| FORD | Mondeo Estate (Mk5) | 2.0 Turbo 203BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 2.0 Turbo 203BHP pads with fitted wear clip (2014-) | 2014- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
| FORD | Mondeo Estate (Mk5) | 2.0 Turbo 240BHP (2014-) | 2014- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 2.0 Turbo 240BHP pads with fitted wear clip (2014-) | 2014- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
| FORD | Mondeo Estate (Mk5) | 2.0 Twin TD 210BHP (2015-) | 2015- | Brake Caliper: ATE | Front | Brake Pads: DB2405 | Disc Diameter [mm]: 316 |
| FORD | Mondeo Estate (Mk5) | 2.0 Twin TD 210BHP pads with fitted wear clip (2015-) | 2015- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 316 | |
