DBA

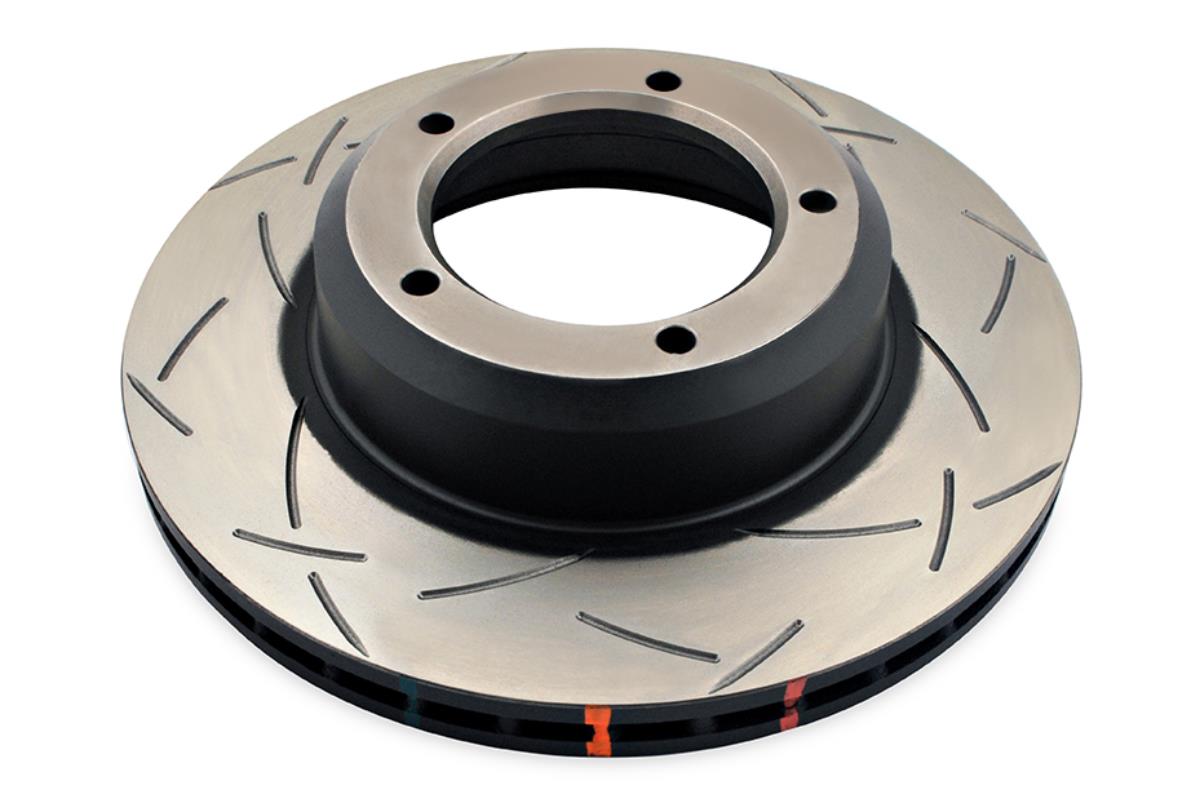

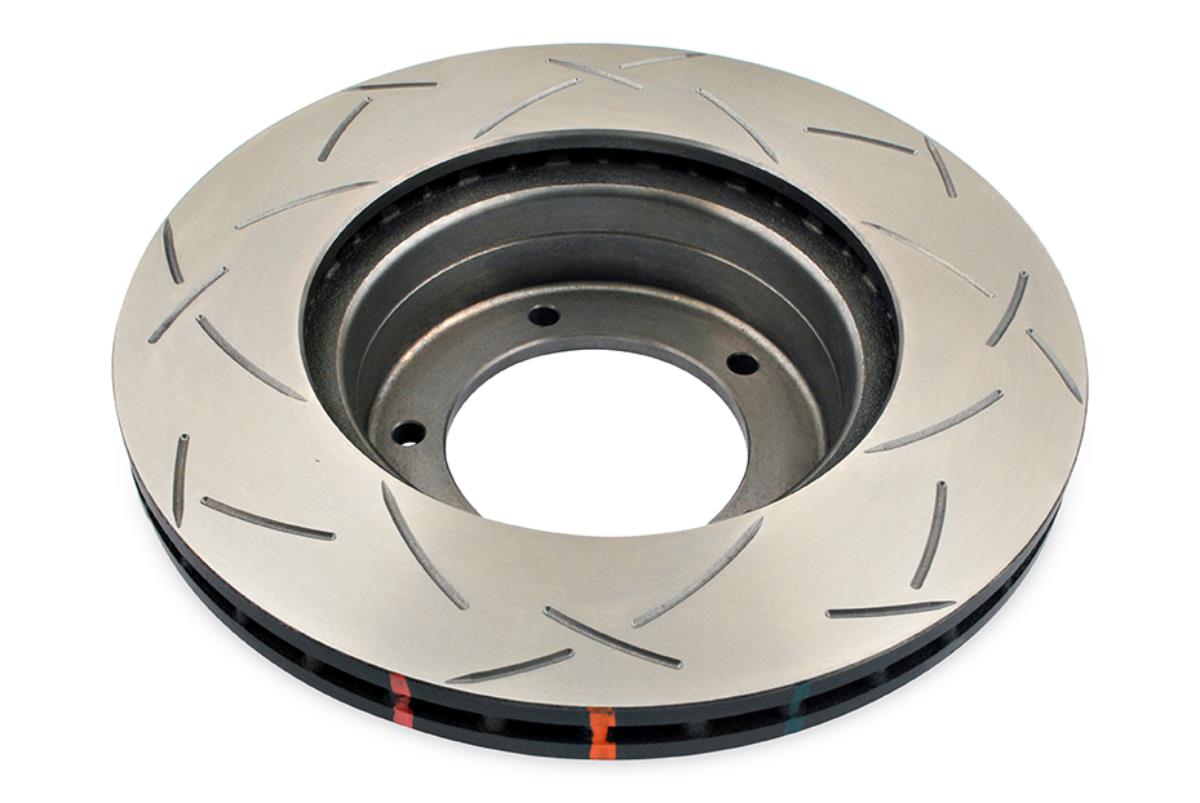

DBA4086S
DBA4086S
Prezzo di listino
€270,03 EUR
Prezzo di listino
Prezzo scontato
€270,03 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 298 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 101.6 |
| Minimum Thickness [mm] | 22 |
| Thickness [mm] | 24 |
| Height [mm] | 70 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60536*00 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| LAND ROVER | Defender 110/130 | 2.2 TD (2011-2016) | 2011-2016 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 110/130 | 2.4 TD (2007-2012) | 2007-2012 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 110/130 | 2.5 TD (1993-1999) | 1993-1999 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 110/130 | 2.5 TD (1993-2007) | 1993-2007 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 110/130 | 2.5 TD (1999-2007) | 1999-2007 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 90 | 2.2 TD (2011-2016) | 2011-2016 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 90 | 2.4 TD (2007-2012) | 2007-2012 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 90 | 2.5 D (1991-1993) | 1991-1993 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 90 | 2.5 TD (1991-2007) | 1991-2007 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Defender 90 | 3.9 (1998) | 1998 | Brake Caliper: Lockheed | Front | Brake Pads: DB1305 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 2.0 (1993-1994) | 1993-1994 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 2.0 (1994-1998) | 1994-1998 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 2.0 ABS (1996-1998) | 1996-1998 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 2.5 TD (1989-1992) | 1989-1992 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 2.5 TD (1992-1994) | 1992-1994 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 2.5 TD (1994-1998) | 1994-1998 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 2.5 TD ABS (1996-1998) | 1996-1998 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 3.5 (1989-1992) | 1989-1992 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 3.5 (1992-1994) | 1992-1994 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 3.9 (1994-1998) | 1994-1998 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Discovery 1 | 3.9 ABS (1996-1998) | 1996-1998 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 2.5 TD (1991-1994) | 1991-1994 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 2.5 TD ABS (1990-1992) | 1990-1992 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 2.5 TD ABS (1992-1994) | 1992-1994 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 3.5 (1986-1989) | 1986-1989 | Brake Caliper: Lockheed | Front | Brake Pads: DB885 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 3.9 (1989-1996) | 1989-1996 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 3.9 ABS (1990-1992) | 1990-1992 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 3.9 ABS (1992-1996) | 1992-1996 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 4.2 (1992-1994) | 1992-1994 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
| LAND ROVER | Range Rover | 4.2 ABS (1992-1994) | 1992-1994 | Brake Caliper: Lockheed | Front | Brake Pads: DB1176 | Disc Diameter [mm]: 298 |
