DBA3352HOE

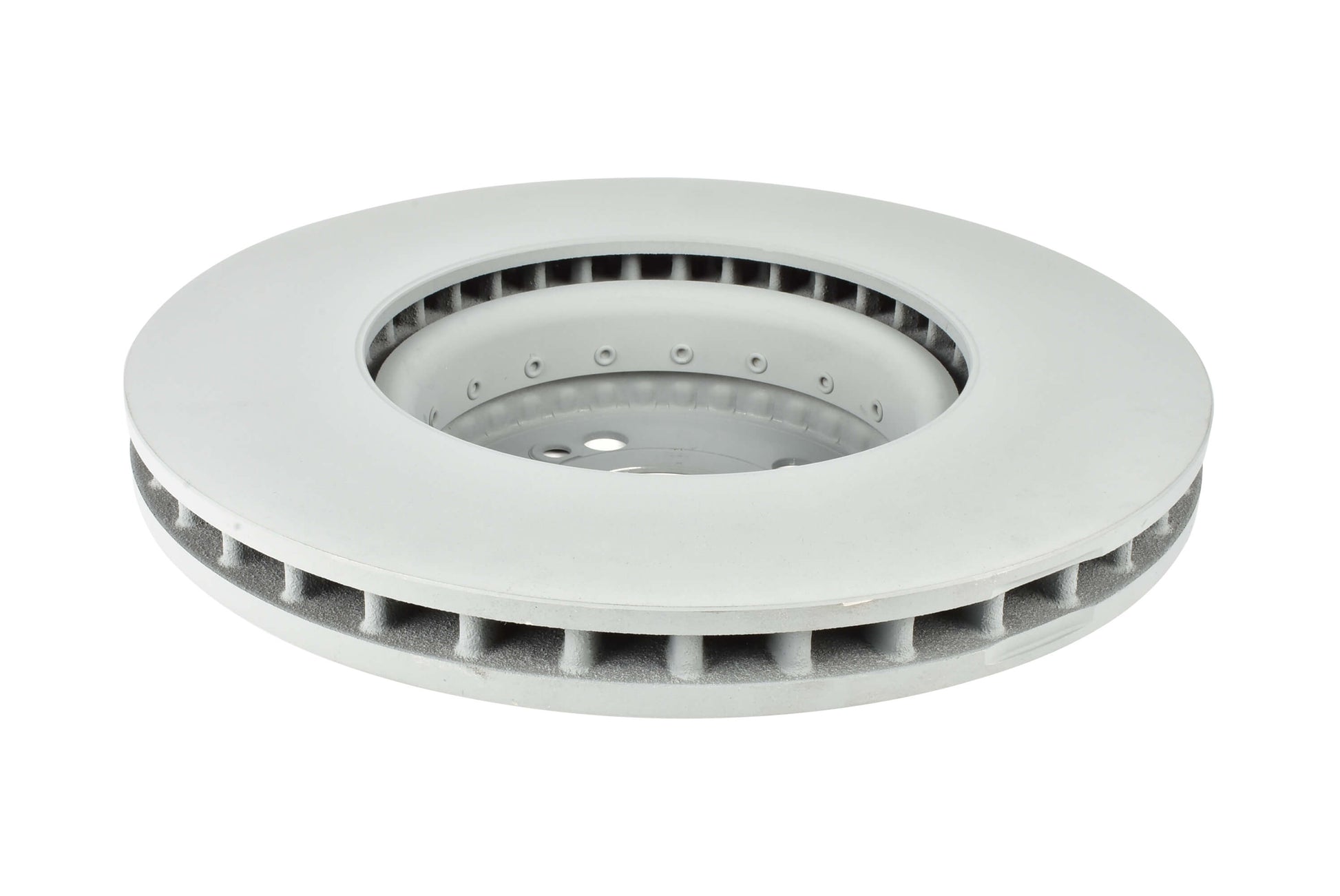

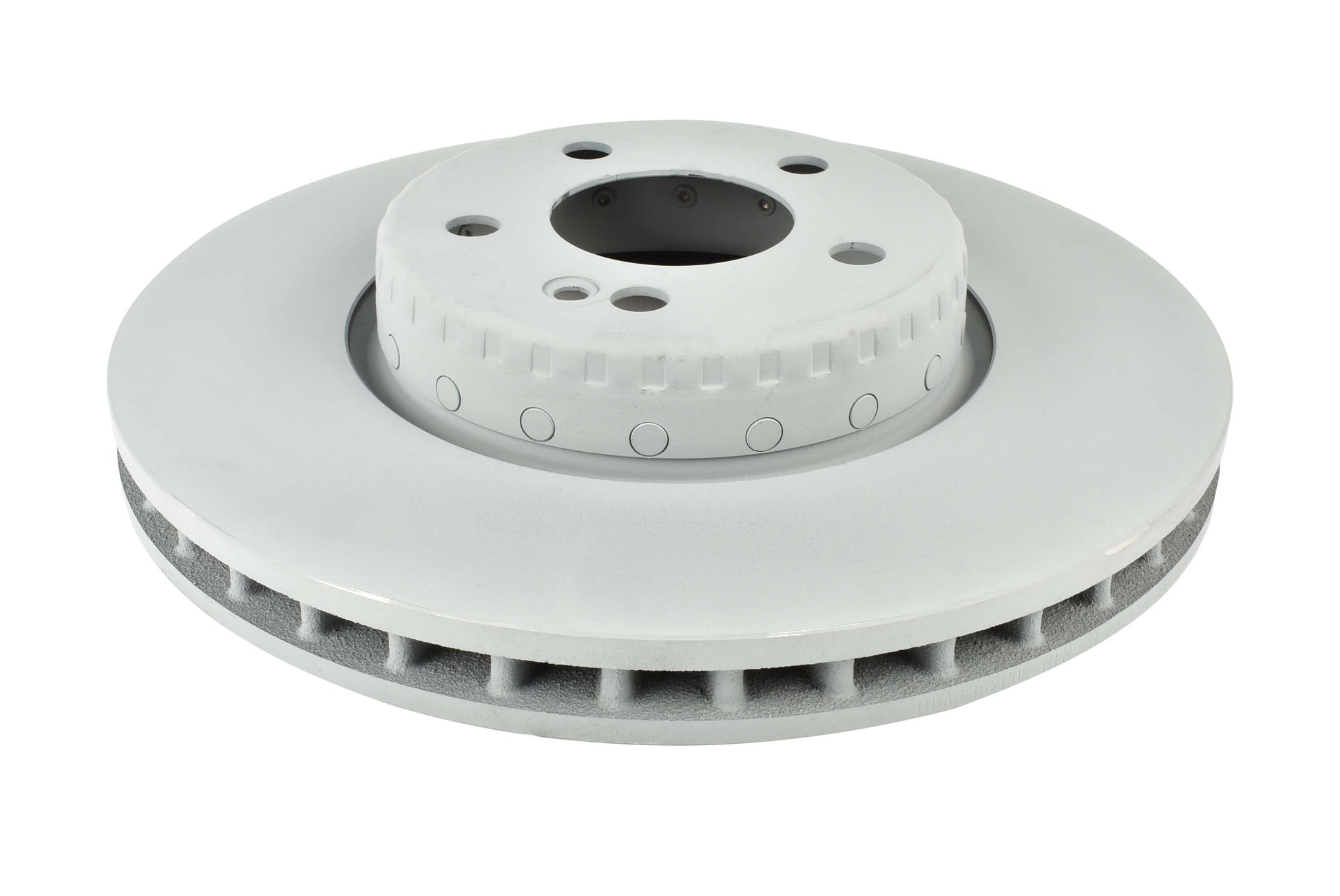

Adopting the two-piece OEM design, DBA offers its own version of a Hybrid Composite (HC) rotor, composed of a cast iron braking surface (disc ring) and an aluminium or steel hat, which are permanently bonded together by a series of rivets or through co-casting. The rotor features DBA’s own iron composition for enhancement. Its two-piece design may reduce the overall weight by up to 15% compared with a conventional one-piece rotor. Full R90 certification provides additional peace of mind.

The Street Series Hybrid Rotor range offers an attractive replacement alternative to owners of mainly high-end European vehicles.

Hybrid rotors are denoted by the suffix (HOE) in Street Series part numbers.

Disc Vent	Vented
Diameter [mm]	318
Height [mm]	60
Thickness [mm]	30
Minimum Thickness [mm]	27,4
Inner Diameter [mm]	69
Number of Holes	5
Axle	Front
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
