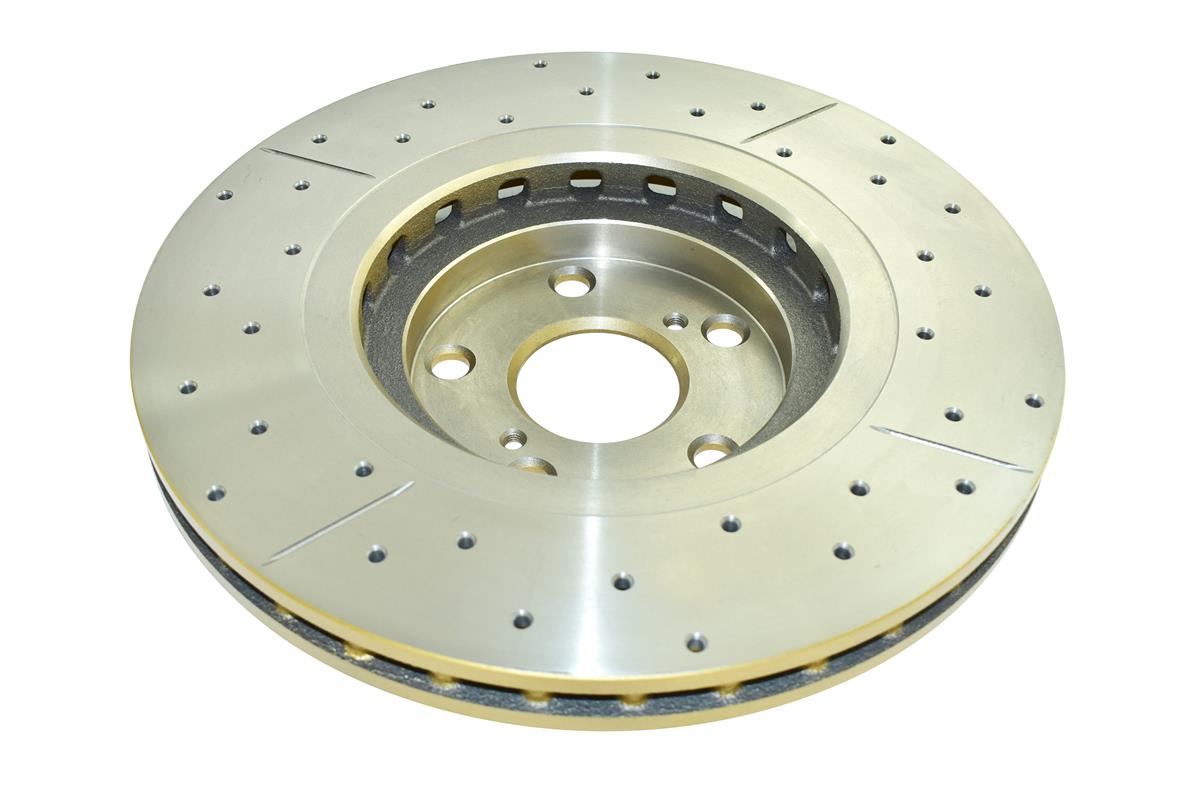

DBA2734X

Discover X Gold Brake Rotors: Premium Performance, Stunning Style

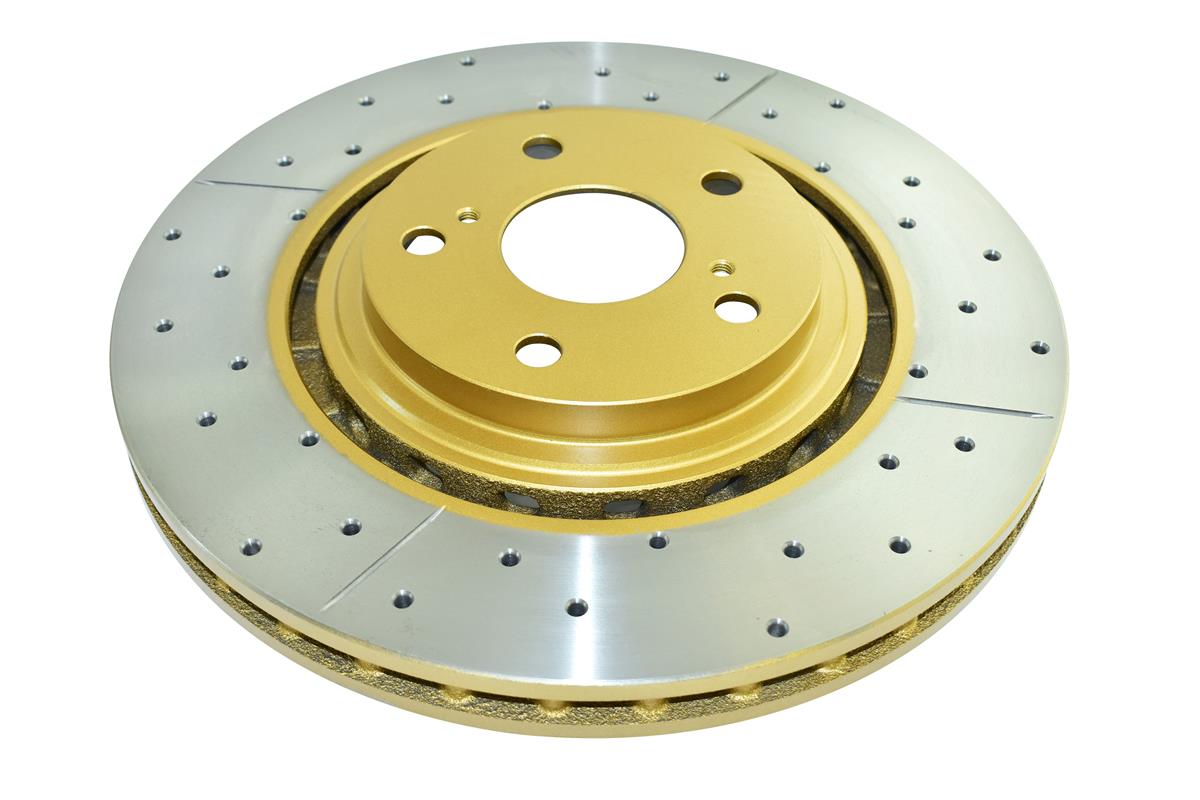

X Gold brake rotors combine the reliability of our Street Series with a superior non-directional cross-drilled and slotted design, featuring an eye-catching gold finish on the rotor hub.

Our innovative cross-drilled and slotted pattern enhances brake pad friction, allowing for efficient dust and gas dispersal. This design results in exceptional braking performance, giving your vehicle superior stopping power and control.

Compared to the T2 slot, X Gold offers similar performance benefits, making it a popular choice for show cars seeking both style and substance.

Diameter [mm]	328
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	62
Minimum Thickness [mm]	25
Thickness [mm]	28
Height [mm]	49.5
Pitch Circle [mm]	114.3
Stage	Stage 1
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Compatibility
LEXUS	NX200	2.0 150BHP (2014-)	2014-	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
LEXUS	NX200t	2.0 Turbo 235BHP (2014-)	2014-	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
LEXUS	NX300h	2.5 Hybrid 194BHP (2014-)	2014-	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
LEXUS	RX450h	3.5 Hybrid (2009-2016)	2009-2016	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Highlander	3.3 2WD (2008-2010)	2008-2010		Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Highlander	3.3 4WD (2008-2010)	2008-2010		Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Highlander	3.5 2WD (2008-2013)	2008-2013		Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Highlander	3.5 2WD (2014-2019)	2014-2019		Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Highlander	3.5 4WD (2008-2013)	2008-2013		Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Highlander	3.5 4WD (2014-2019)	2014-2019		Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Rav 4	2.0 (2013-2018)	2013-2018	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Rav 4	2.0 TD (2013-2018)	2013-2018	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Rav 4	2.2 TD (2013-2018)	2013-2018	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Rav 4	2.5 Hybrid (2016-2018)	2016-2018	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
TOYOTA	Sienna	3.5 (2011-)	2011-	Brake Caliper: Advics	Front	Brake Pads: DB2004	Disc Diameter [mm]: 328
