DB2202SS

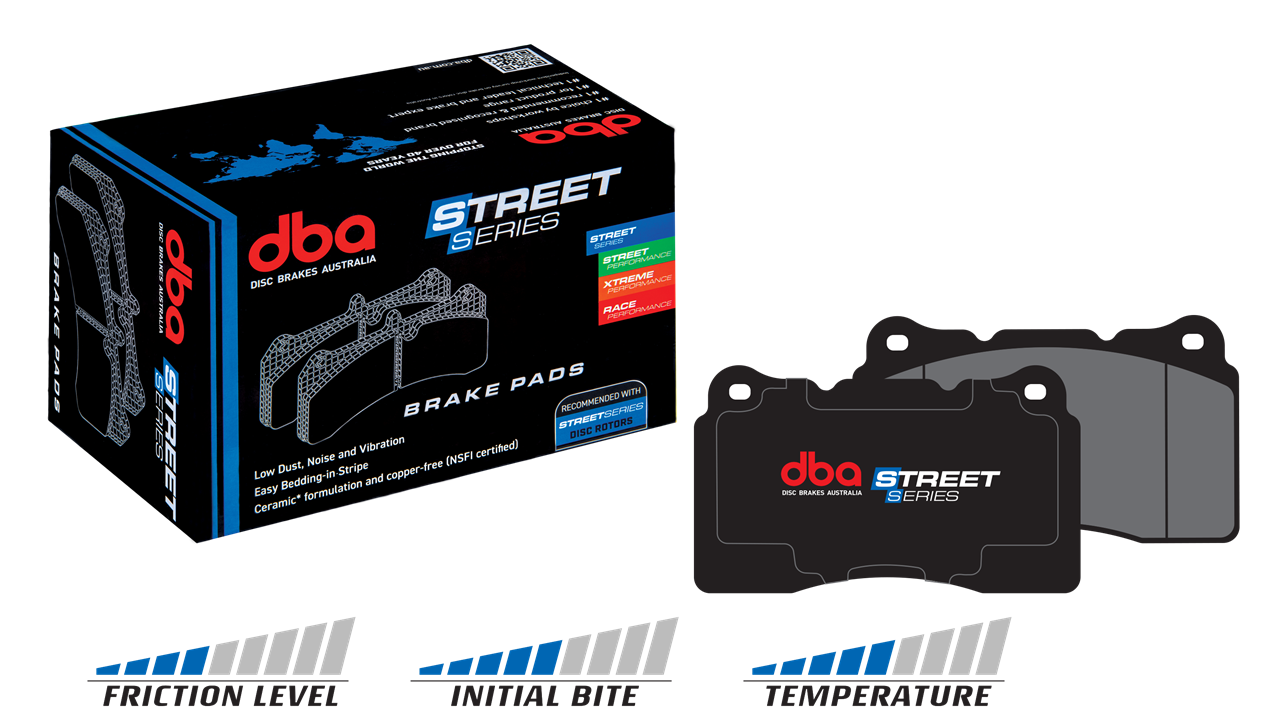

STREET SERIES brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of STREET SERIES disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

DBA recommends STREET SERIES brake pads for everyday use application in passenger cars, SUVs and LightCommercial Vehicles.

DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

STREET SERIES part numbers are denoted by the suffix SS.

OE-style post-cured process for optimal braking performance over the pad life

Ceramic* formulation and copper-free (NSFI certified) for low dust emission & clean wheels

High-friction stripe for easy bedding-in

Application-specific NVH shims, slots and chamfers for less vibration and noise

* Check box label for applicability

OE replacement & everyday use

Passenger cars & SUVs

Light commercial Vehicles

Use with DBA Street Series Disc Rotors

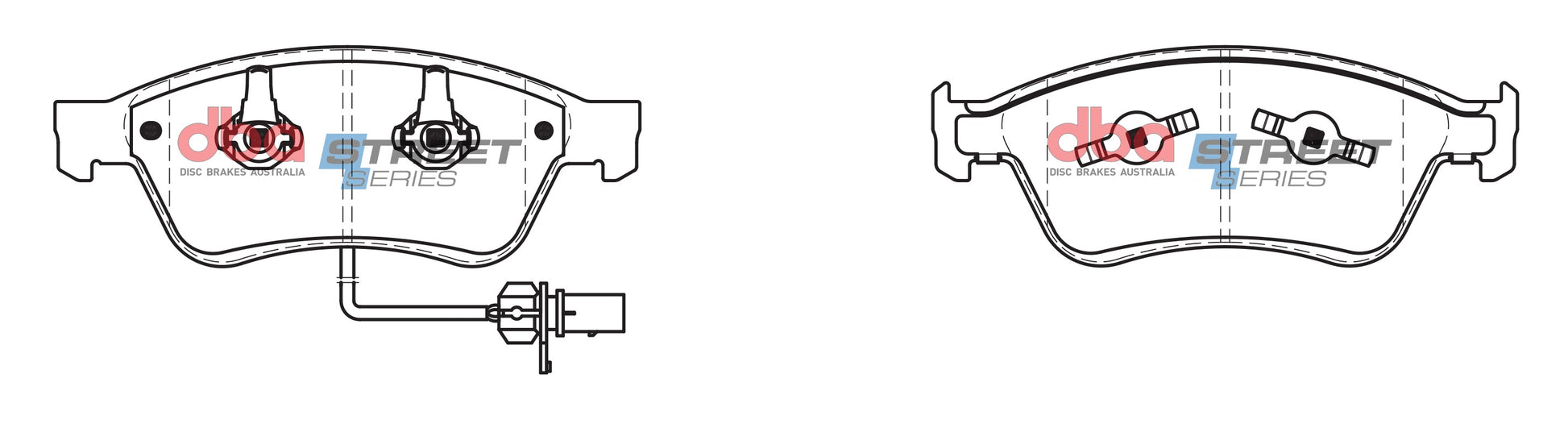

Primary FMSI	7928-D1117
Set Contains	2 Inner Pads + 2 Outer Pads, 2 Wear Sensor
Width [mm]	193.2
Height [mm]	72.6
Pad Thickness [mm]	18.8
Axle	Front

Compatibility
AUDI	A8 quattro D3/4E	3.2 256BHP (2005-2007)	2005-2007	Brake Disc: DBA3230	Front	Brake Caliper: ATE
AUDI	A8 quattro D3/4E	4.0 TD 275BHP (2004-2005)	2004-2005	Brake Disc: DBA3230	Front	Brake Caliper: ATE
AUDI	A8 quattro D3/4E	4.2 340BHP (2003-2010)	2003-2010	Brake Disc: DBA3230	Front	Brake Caliper: ATE
AUDI	A8 quattro D3/4E	4.2 350BHP (2006-2010)	2006-2010	Brake Disc: DBA3230	Front	Brake Caliper: ATE
AUDI	A8 quattro D3/4E	4.2 Twin TD 326BHP (2005-2010)	2005-2010	Brake Disc: DBA3230	Front	Brake Caliper: ATE
AUDI	A8 quattro D3/4E	6.0 W12 450BHP (2003-2005)	2003-2005	Brake Disc: DBA3230	Front	Brake Caliper: ATE
AUDI	A8 quattro D3/4E	6.0 W12 450BHP (2005-2009)	2005-2009		Front	Brake Caliper: ATE
AUDI	S6 C6	5.2 435BHP (2006-2011)	2006-2011	Brake Disc: DBA2778	Front	Brake Caliper: ATE
AUDI	S8 D3	5.2 450BHP (2006-2011)	2006-2011		Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	3.0 TD 225BHP 4 Pad Set (2004-2006)	2004-2006	Brake Disc: DBA3230	Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	3.0 TD 233BHP 4 Pad Set (2007-2008)	2007-2008	Brake Disc: DBA3230	Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	3.0 TD 240BHP 4 Pad Set (2008-2016)	2008-2016	Brake Disc: DBA3230	Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	3.2 240BHP 4 Pad Set (2002-2008)	2002-2008	Brake Disc: DBA3230	Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	3.6 280BHP 4 Pad Set (2008-2016)	2008-2016	Brake Disc: DBA3230	Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	4.2 335BHP (2002-2016)	2002-2016	Brake Disc: DBA3230	Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	5.0 TD 313BHP 4 Pad Set (2004-2007)	2004-2007	Brake Disc: DBA3230	Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	6.0 W12 420BHP 4 Pad Set (2002-2005)	2002-2005	Brake Disc: DBA3230	Front	Brake Caliper: ATE
VOLKSWAGEN	Phaeton	6.0 W12 450BHP 4 Pad Set (2005-2012)	2005-2012	Brake Disc: DBA3230	Front	Brake Caliper: ATE
