DB1974SS

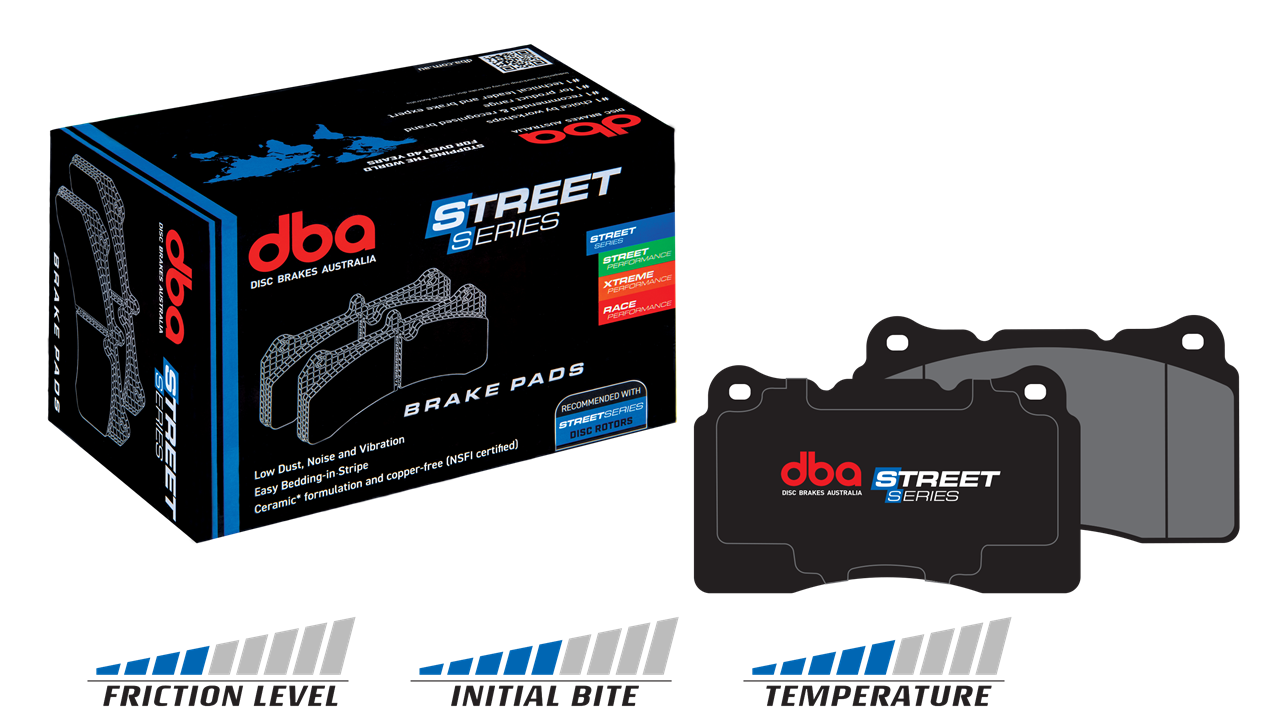

STREET SERIES brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of STREET SERIES disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

DBA recommends STREET SERIES brake pads for everyday use application in passenger cars, SUVs and LightCommercial Vehicles.

DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

STREET SERIES part numbers are denoted by the suffix SS.

OE-style post-cured process for optimal braking performance over the pad life

Ceramic* formulation and copper-free (NSFI certified) for low dust emission & clean wheels

High-friction stripe for easy bedding-in

Application-specific NVH shims, slots and chamfers for less vibration and noise

* Check box label for applicability

OE replacement & everyday use

Passenger cars & SUVs

Light commercial Vehicles

Use with DBA Street Series Disc Rotors

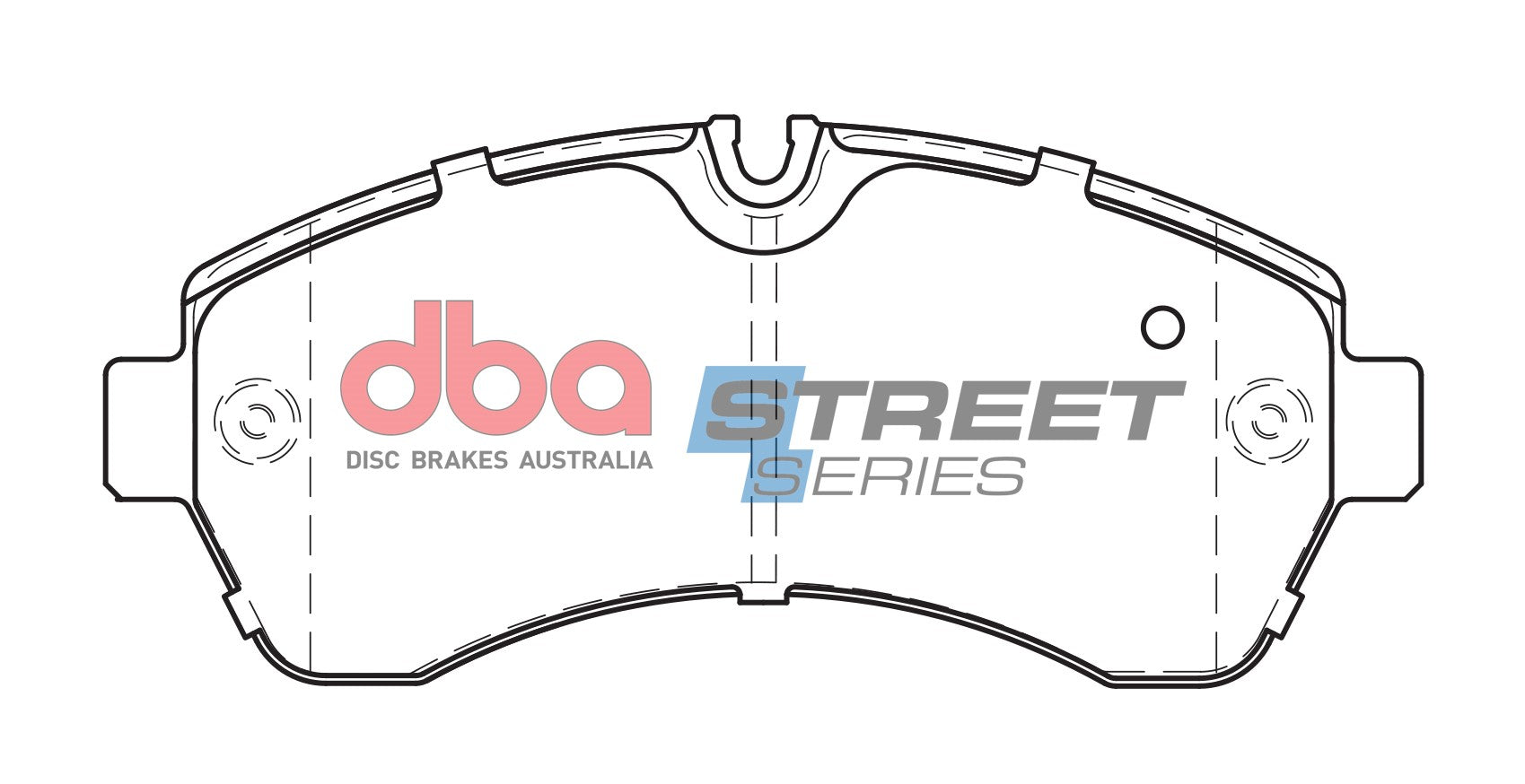

Primary FMSI	8383-D1268
Set Contains	4 Pads
Width [mm]	169.2
Height [mm]	73.1
Pad Thickness [mm]	19.8
Axle	Front

Compatibility
MERCEDES-BENZ	Sprinter 211D	2.1 TD 113BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 211D	2.1 TD 113BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 211D	2.1 TD 113BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 214D	2.1 TD 140BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 214D	2.1 TD 140BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 214D	2.1 TD 140BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 311D	2.1 TD 113BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 311D	2.1 TD 113BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 311D	2.1 TD 113BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 314D	2.1 TD 140BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 314D	2.1 TD 140BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 314D	2.1 TD 140BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 316D	2.1 TD 160BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 316D	2.1 TD 160BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 316D	2.1 TD 160BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 319D	3.0 TD 190BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 319D	3.0 TD 190BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 319D	3.0 TD 190BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 411D	2.1 TD (2009-2018)	2009-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 411D	2.1 TD 113BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 411D	2.1 TD 113BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 411D	2.1 TD 113BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 413D	2.1 TD (2006-2018)	2006-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 414D	2.1 TD 140BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 414D	2.1 TD 140BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 414D	2.1 TD 140BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 415D	2.1 TD (2009-2018)	2009-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 416D	2.1 TD (2009-2018)	2009-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 416D	2.1 TD 160BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 416D	2.1 TD 160BHP Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 416D	2.1 TD 160BHP H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 418D	3.0 TD (2009-2018)	2009-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 419D	3.0 TD (2009-2018)	2009-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 419D	3.0 TD (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 419D	3.0 TD Electric Handbrake (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 419D	3.0 TD H/D Suspension (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 424	3.5 (2006-2018)	2006-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 509D	2.1 TD (2006-2018)	2006-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 510D	2.1 TD (2009-2018)	2009-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 511D	2.1 TD (2006-2018)	2006-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 511D	2.1 TD 1114BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 513D	2.1 TD (2010-2018)	2010-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 514D	2.1 TD 140BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 515D	2.1 TD (2006-2018)	2006-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 516D	2.1 TD (2009-2018)	2009-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 516D	2.1 TD 160BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 518D	3.0 TD (2006-2018)	2006-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 519D	3.0 TD (2009-2018)	2009-2018	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
MERCEDES-BENZ	Sprinter 519D	3.0 TD 190BHP (2018-)	2018-	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
VOLKSWAGEN	Crafter 50	2.0 TD (2011-2016)	2011-2016	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
VOLKSWAGEN	Crafter 50	2.5 TD (2006-2011)	2006-2011	Brake Disc: DBA2270	Front	Brake Caliper: Brembo
