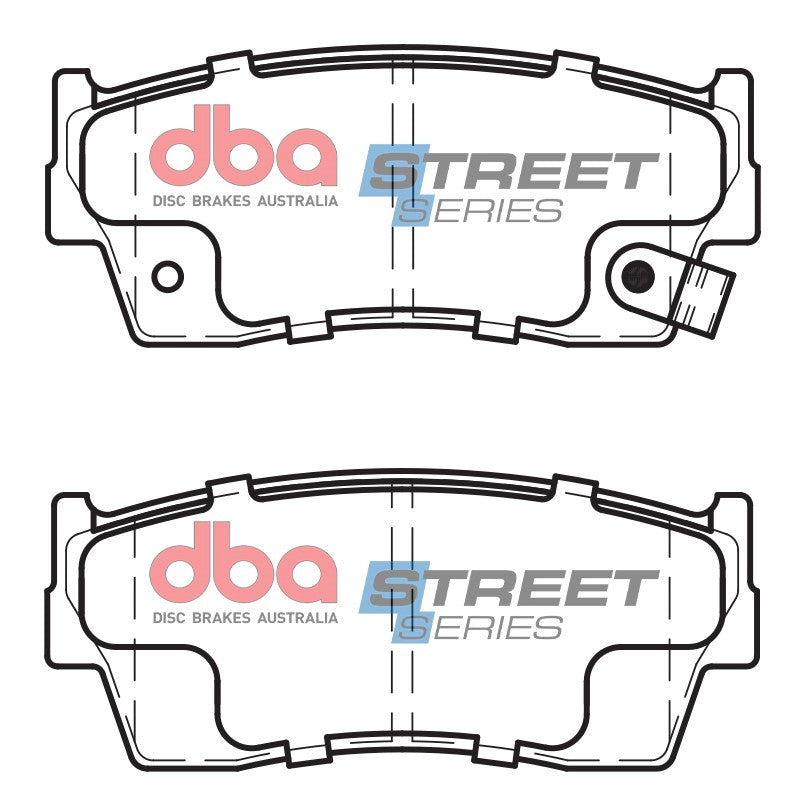

DB1134SS

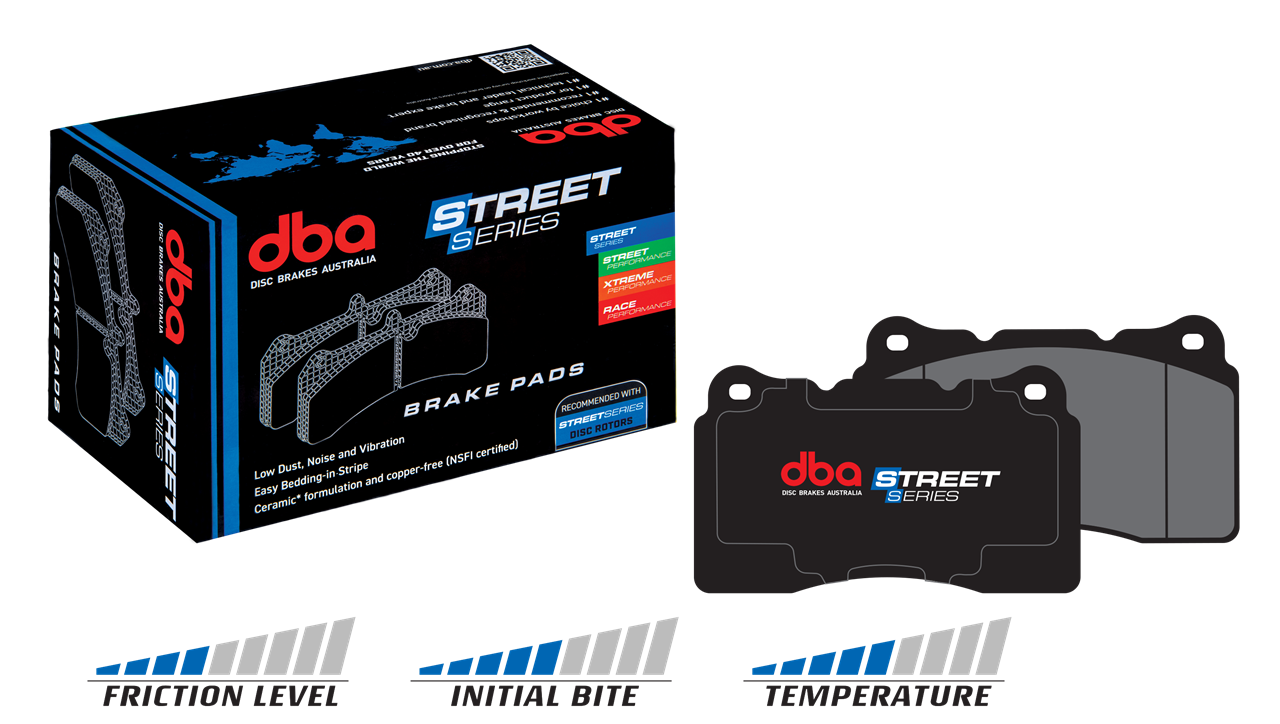

STREET SERIES brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of STREET SERIES disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

DBA recommends STREET SERIES brake pads for everyday use application in passenger cars, SUVs and LightCommercial Vehicles.

DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

STREET SERIES part numbers are denoted by the suffix SS.

OE-style post-cured process for optimal braking performance over the pad life

Ceramic* formulation and copper-free (NSFI certified) for low dust emission & clean wheels

High-friction stripe for easy bedding-in

Application-specific NVH shims, slots and chamfers for less vibration and noise

* Check box label for applicability

OE replacement & everyday use

Passenger cars & SUVs

Light commercial Vehicles

Use with DBA Street Series Disc Rotors

Primary FMSI	7305-D418
Set Contains	LH Inner + RH Inner + 2 Outer Pads
Width [mm]	103.5
Height [mm]	43.5
Pad Thickness [mm]	14.5
Axle	Front

Compatibility
SANTANA	S410	1.0 (1986-1993)	1986-1993	Front	Brake Caliper: Akebono
SANTANA	S413	1.3 (1986-1989)	1986-1989	Front	Brake Caliper: Akebono
SANTANA	Vitara	1.6 (1993-1995)	1993-1995	Front	Brake Caliper: Akebono
SUZUKI	Vitara TA01	1.6 (1988-1994)	1988-1994	Front	Brake Caliper: Akebono
SUZUKI	Vitara TA02	1.6 (1991-2001)	1991-2001	Front	Brake Caliper: Akebono
SUZUKI	Vitara TV01	1.6 (1995-1999)	1995-1999	Front	Brake Caliper: Akebono
SUZUKI	Vitara TV02	1.6 (1995-1998)	1995-1998	Front	Brake Caliper: Akebono
SUZUKI	Vitara Van	1.6 (1993-1999)	1993-1999	Front	Brake Caliper: Akebono
SUZUKI	X-90 LA115	1.6 (1996-1999)	1996-1999	Front	Brake Caliper: Akebono
SUZUKI	X-90 LB115	1.6 4WD (1996-1999)	1996-1999	Front	Brake Caliper: Akebono
