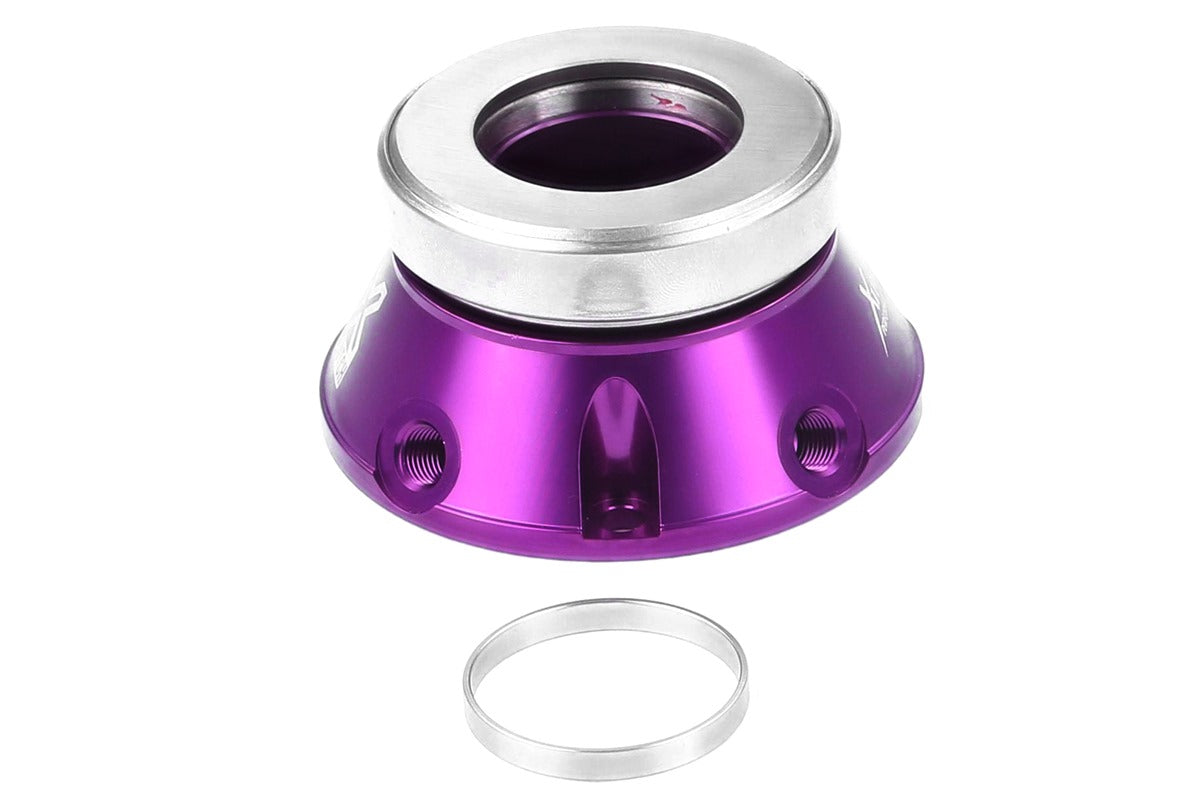

CSCCV212

Xtreme Clutch now offer a universal style performance concentric slave cylinder (CSC)for motorsport and gearbox conversion applications.

The new CSC was designed in-house at Xtreme Clutch and incorporates a billet 6061 alloyhousing, high quality EPDM rubber seals and a threaded adjustment sleeve (where required)for universal applications.

The CSC is available in kit form for various popular conversion applications and these kitsinclude an adaptor plate and braided clutch and bleeder lines (as required).

Bolt to custom gearbox adaptor

Locating ring 38-40.5mm.

• Bearing / Clutch Contact Diameter (mm): Flat
• Usable Piston Travel (mm): 17
• Adjustability (mm): not applicable
• Extension Height (mm): 65
• Min. Compression Height (mm): 48
