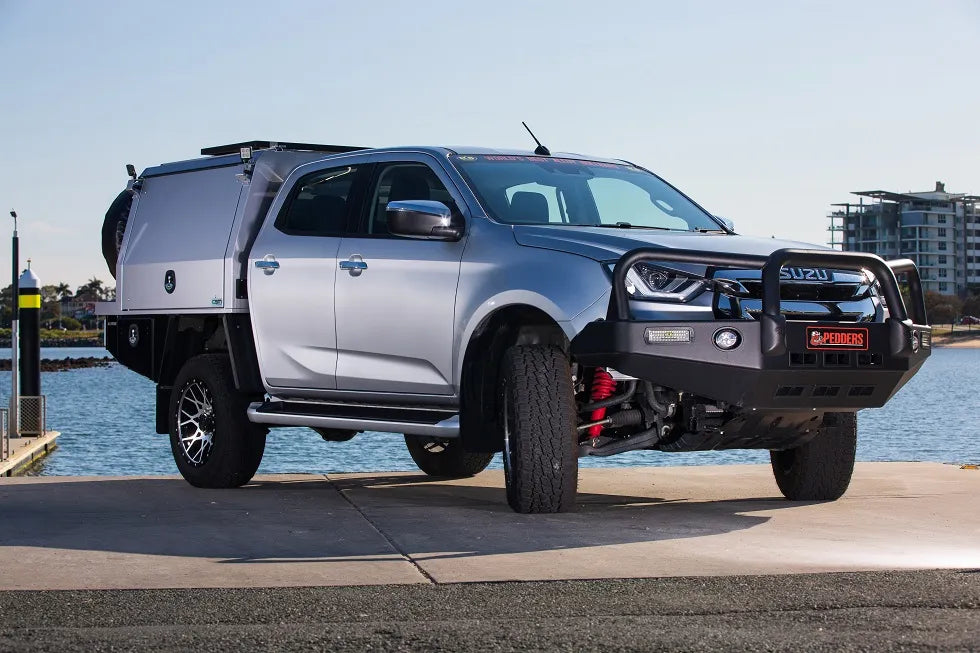

Pedders 1.75" Heavy Duty Load Carrying and Towing Kit with Assembled Foam Cell Struts and Parabolic Leaf Springs - Isuzu D-Max

Designed for Isuzu D-Max owners who frequently tow or carry heavy loads. Improves load carrying capacity, towing ability, ground clearance and rear suspension performance.

Key Features

• 1.75" heavy duty lift (approx. 40 mm)
• Parabolic rear leaf springs for improved ride comfort and axle articulation
• Improved load carrying and towing performance
• Increased off-road ground clearance

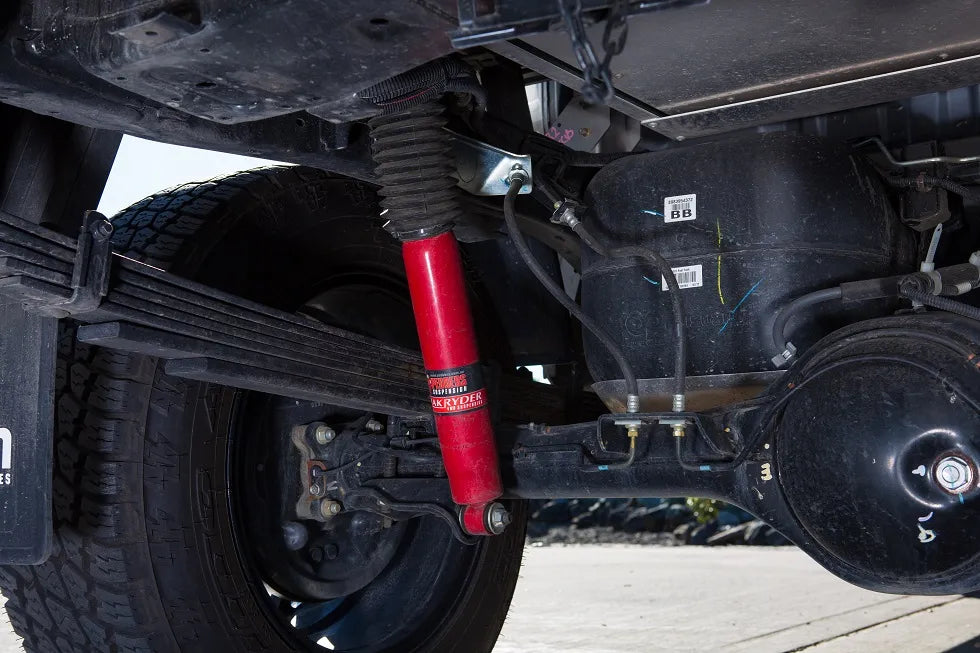

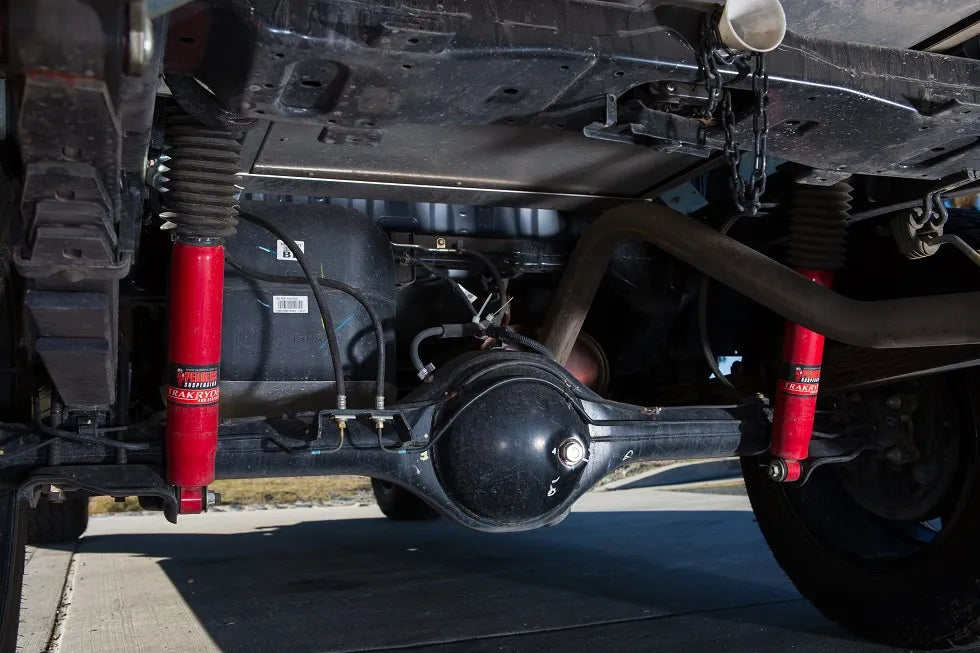

• Sintered iron piston shocks with large 40 mm bore
• Premium grade steel coils

Product Overview

This heavy duty suspension kit raises the vehicle by approximately 40 mm, providing improved ground clearance and a stronger stance to accommodate larger tyres. Designed to handle a minimum 300 kg rear load. Not recommended for unladen use due to a firmer ride.

The Advantages of Parabolic Leaf Springs

This kit features parabolic rear leaf springs, which offer significant benefits over traditional multi-leaf packs. The tapered design minimizes inter-leaf friction, providing a smoother, more comfortable ride and better axle articulation off-road. They are also lighter, which reduces unsprung weight to improve handling, all while delivering robust load-carrying and towing capabilities.

Installation & Technical Specs

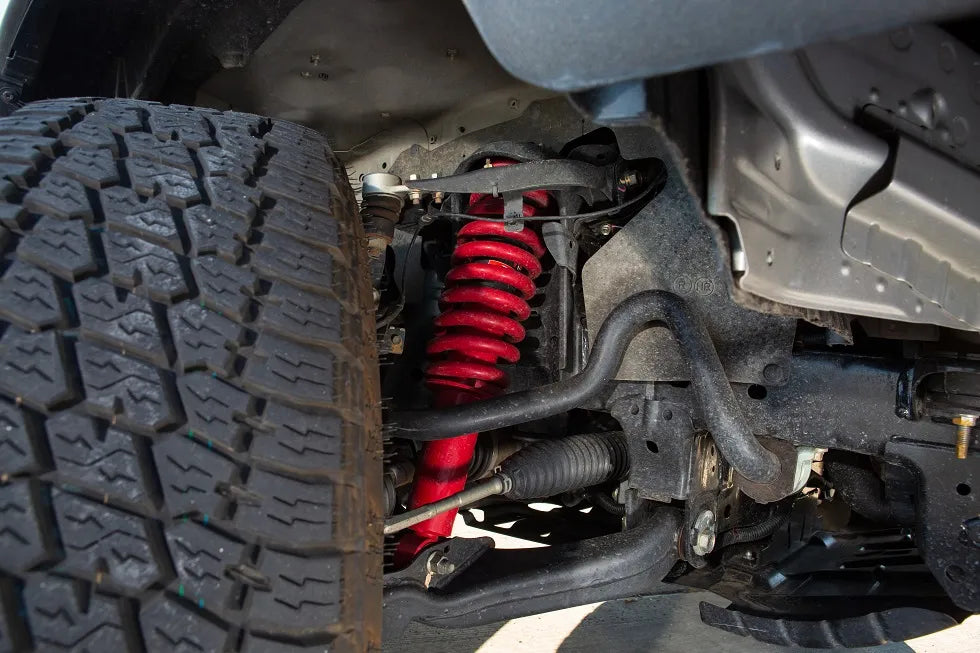

Features fully assembled Ezifit struts for quick bolt-on installation without spring compressors. A professional wheel alignment is strongly recommended.

• Required rear load: minimum 300 kg
• Rear spring type: parabolic leaf springs

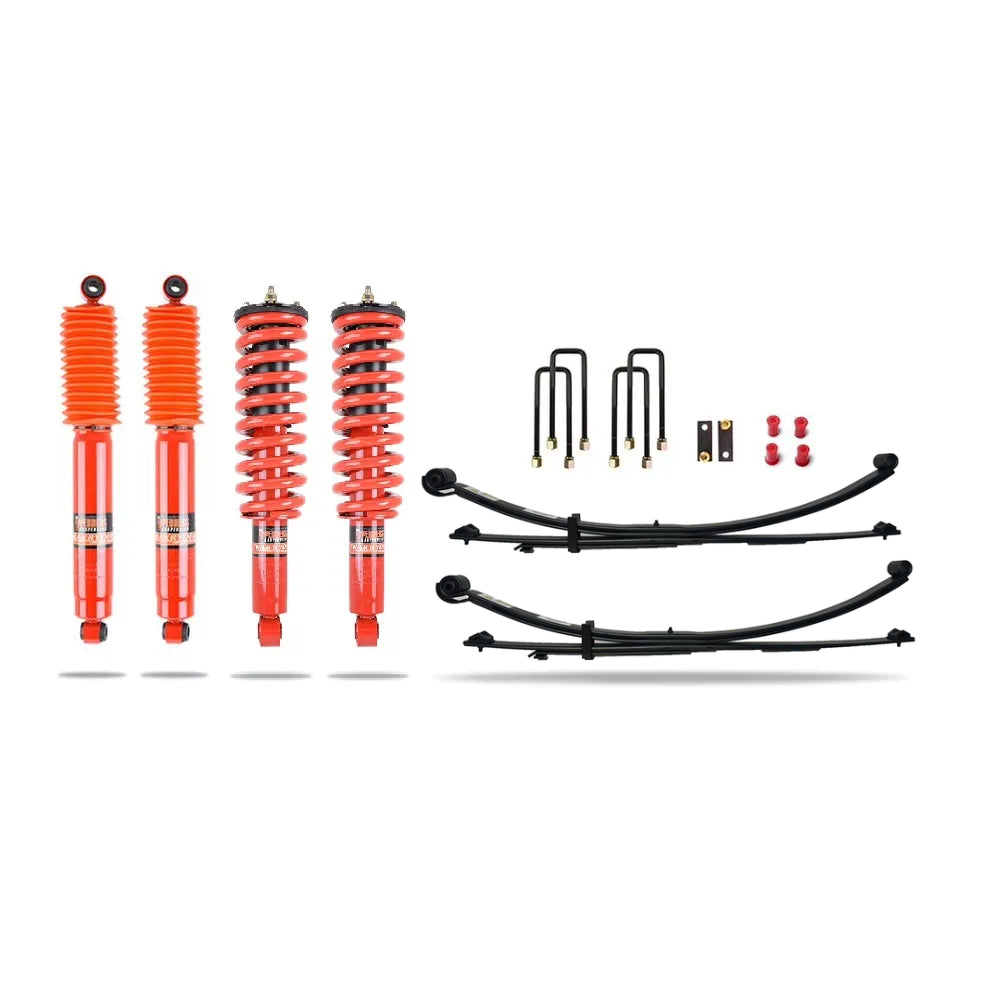

• Components: Front fully assembled Foam Cell struts, rear parabolic leaf springs, rear foam cell shocks, ubolts, bushes and handbrake bracket
• Warranty: 2 year / 40,000 km / 25,000 mile warranty

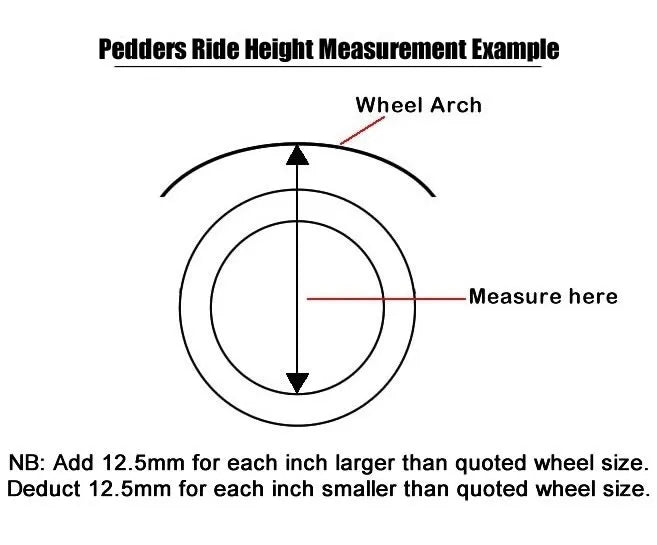

Actual ride height may vary depending on vehicle condition and additional accessories such as bull bars or winches, which may require alternative springs.
