Pedders 1.75 Inch Suspension Lift Kit Ford Ranger PX

This lift kit raises the Ford Ranger PX by approximately 40mm, improving ground clearance and appearance. It is suited for drivers seeking enhanced off-road capability without additional vehicle modifications.

Key Features

• 1.75 inch lift kit
• Increased off-road ground clearance
• Sintered iron piston shocks with large 35mm bore
• Premium grade steel coil springs
• Backed by a 2-year / 40,000km warranty

Product Overview

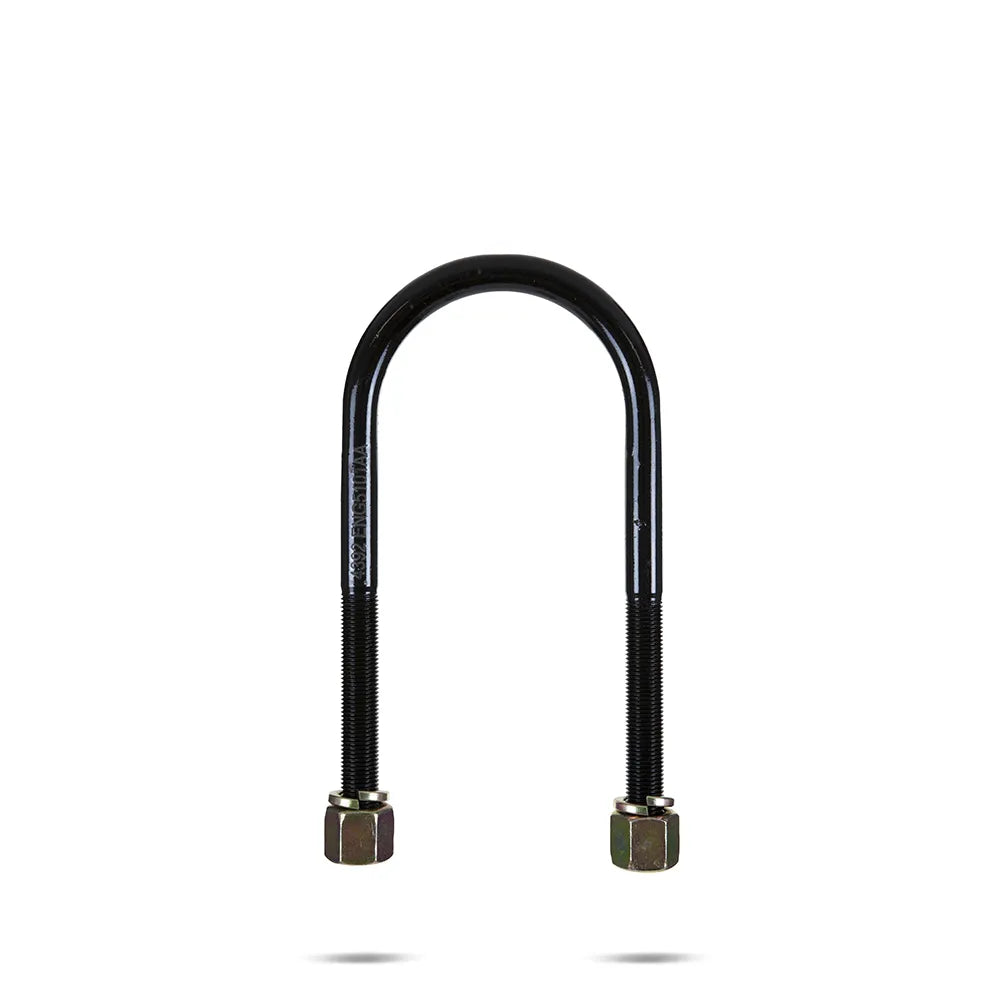

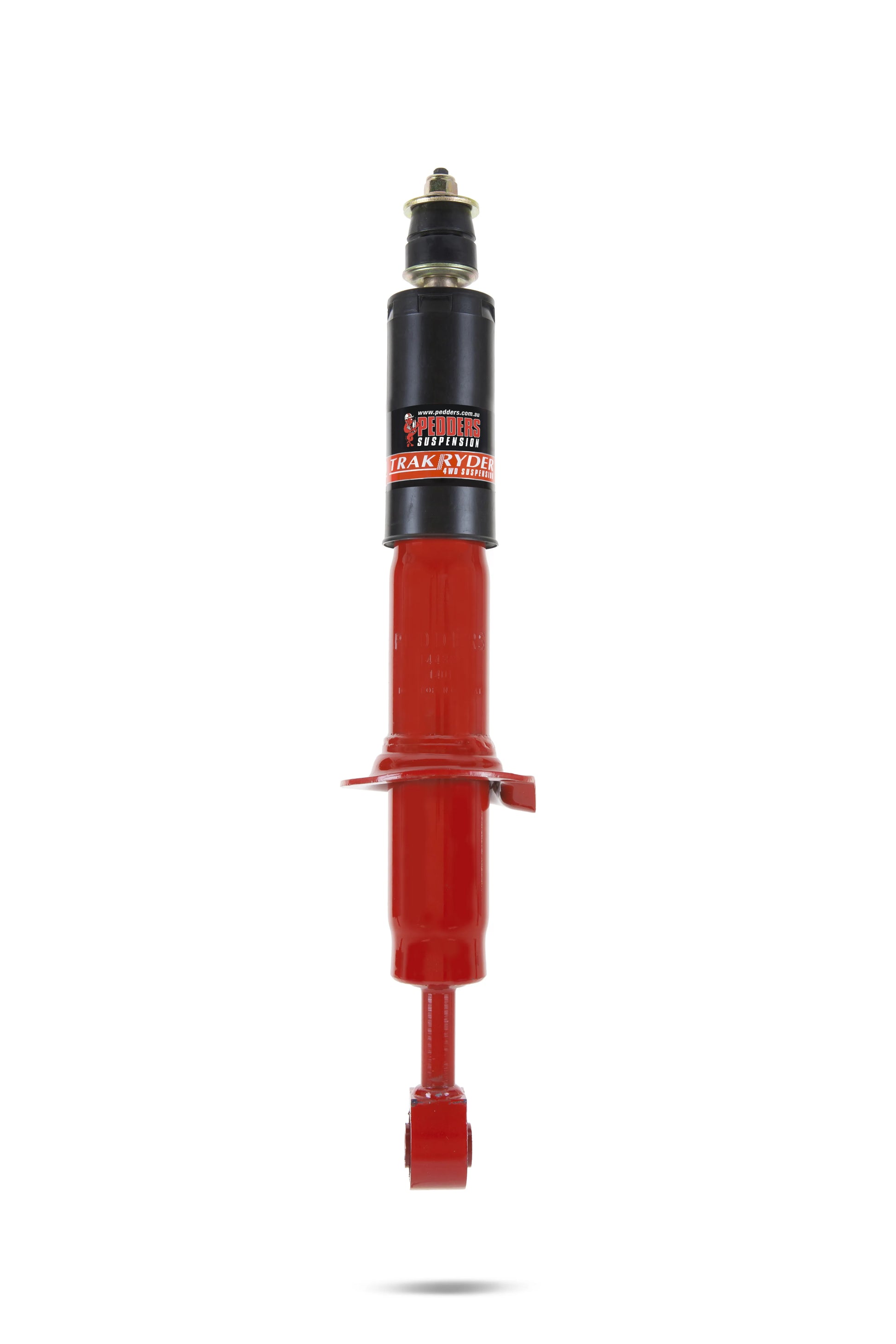

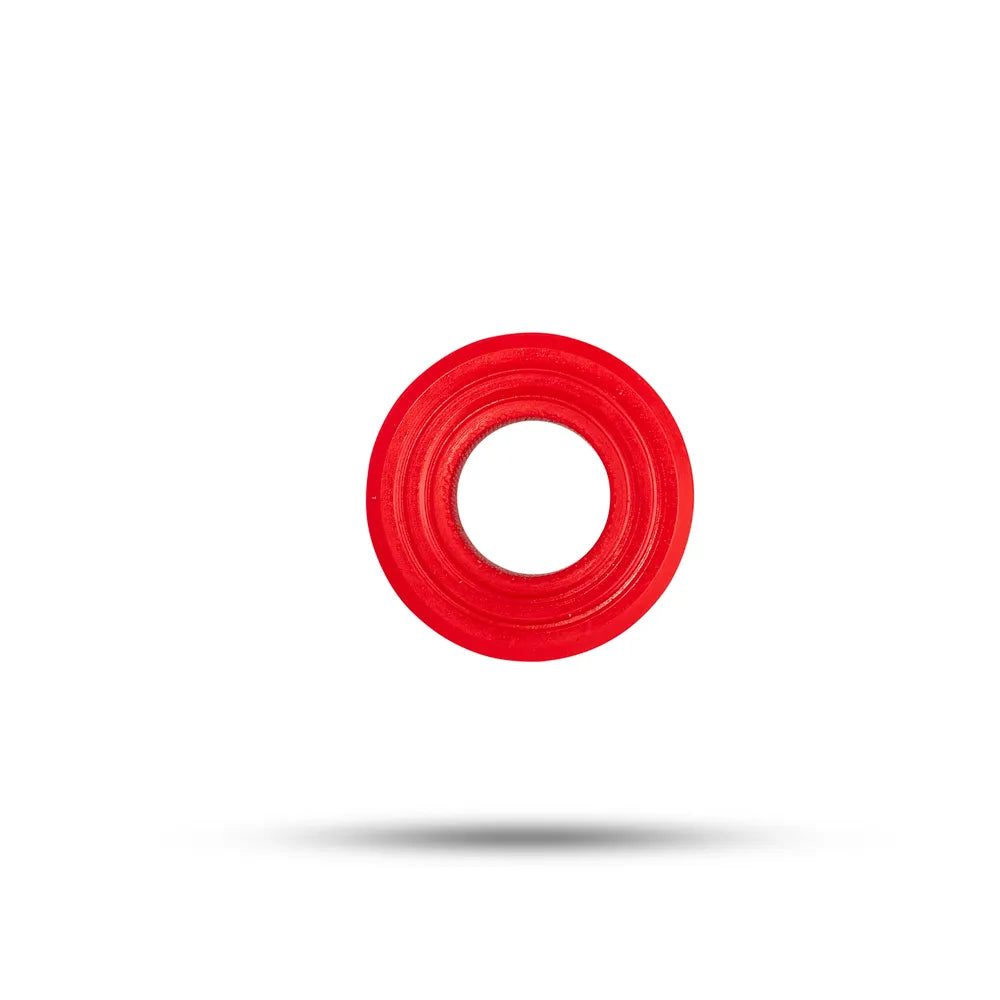

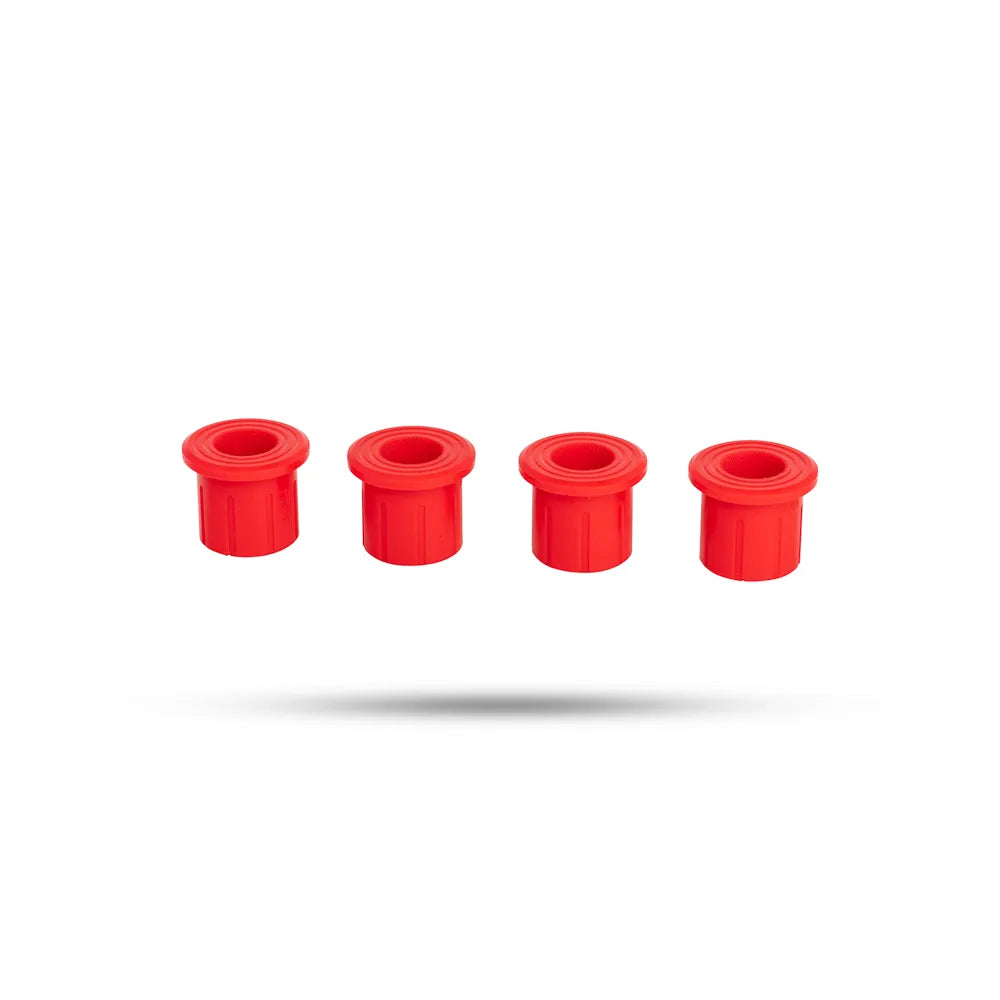

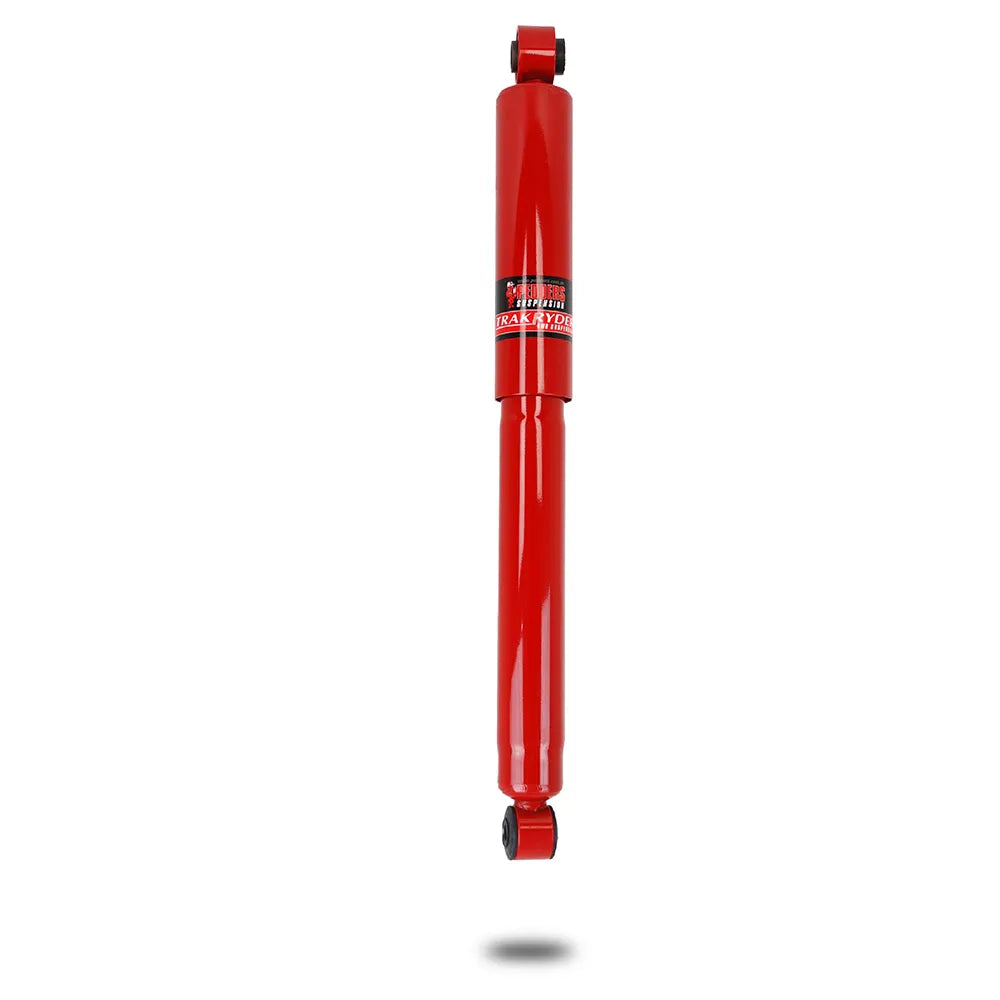

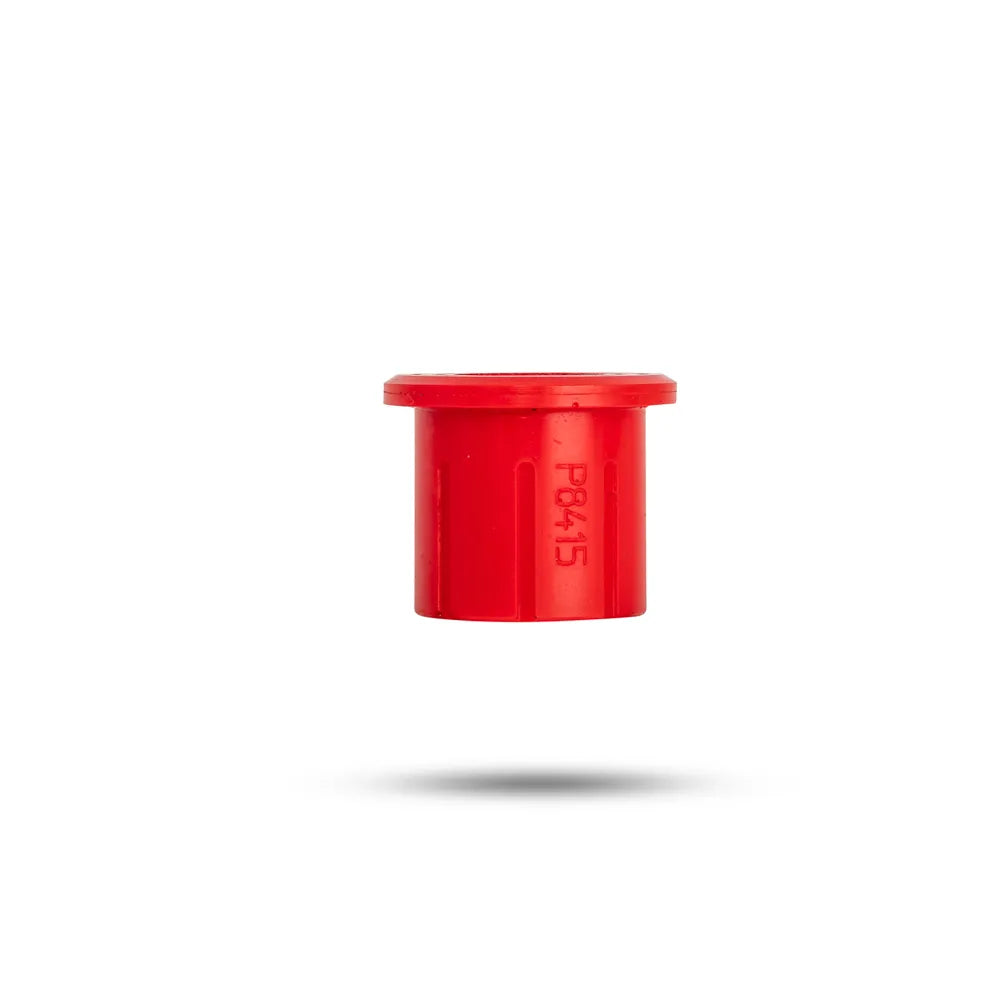

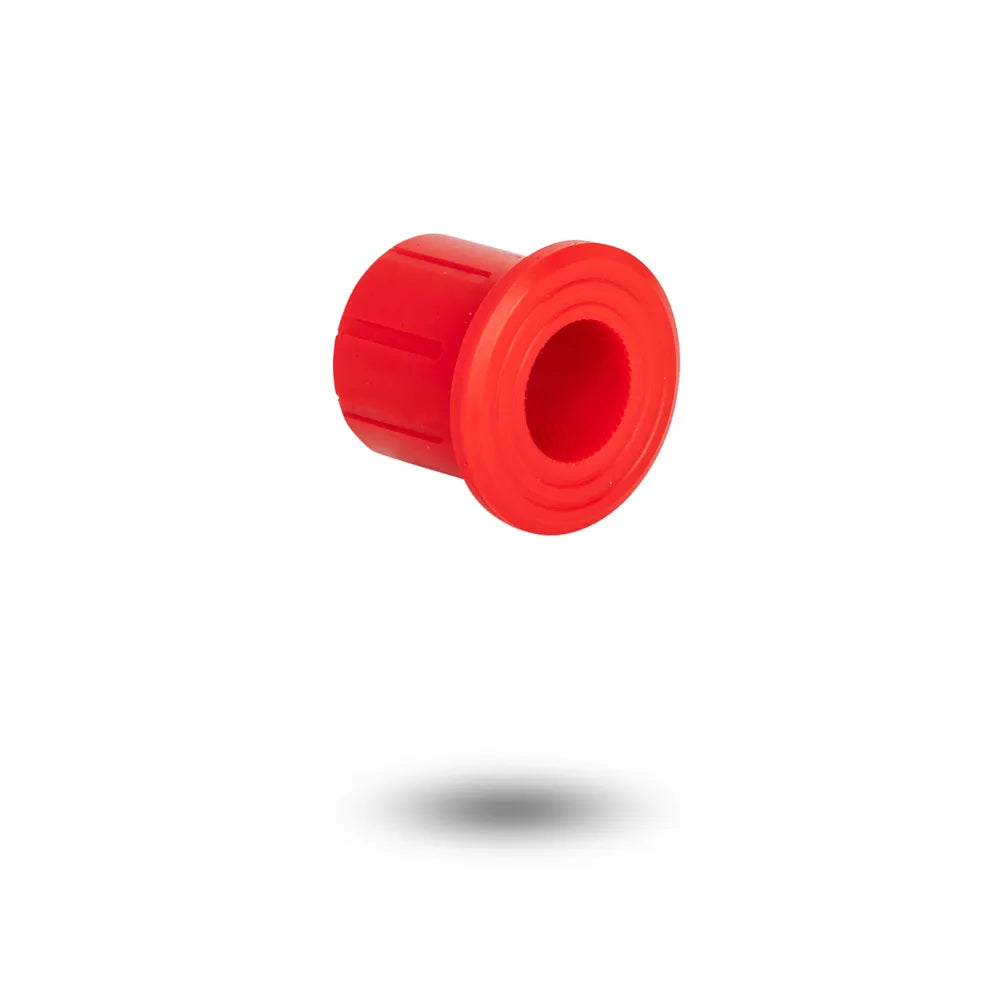

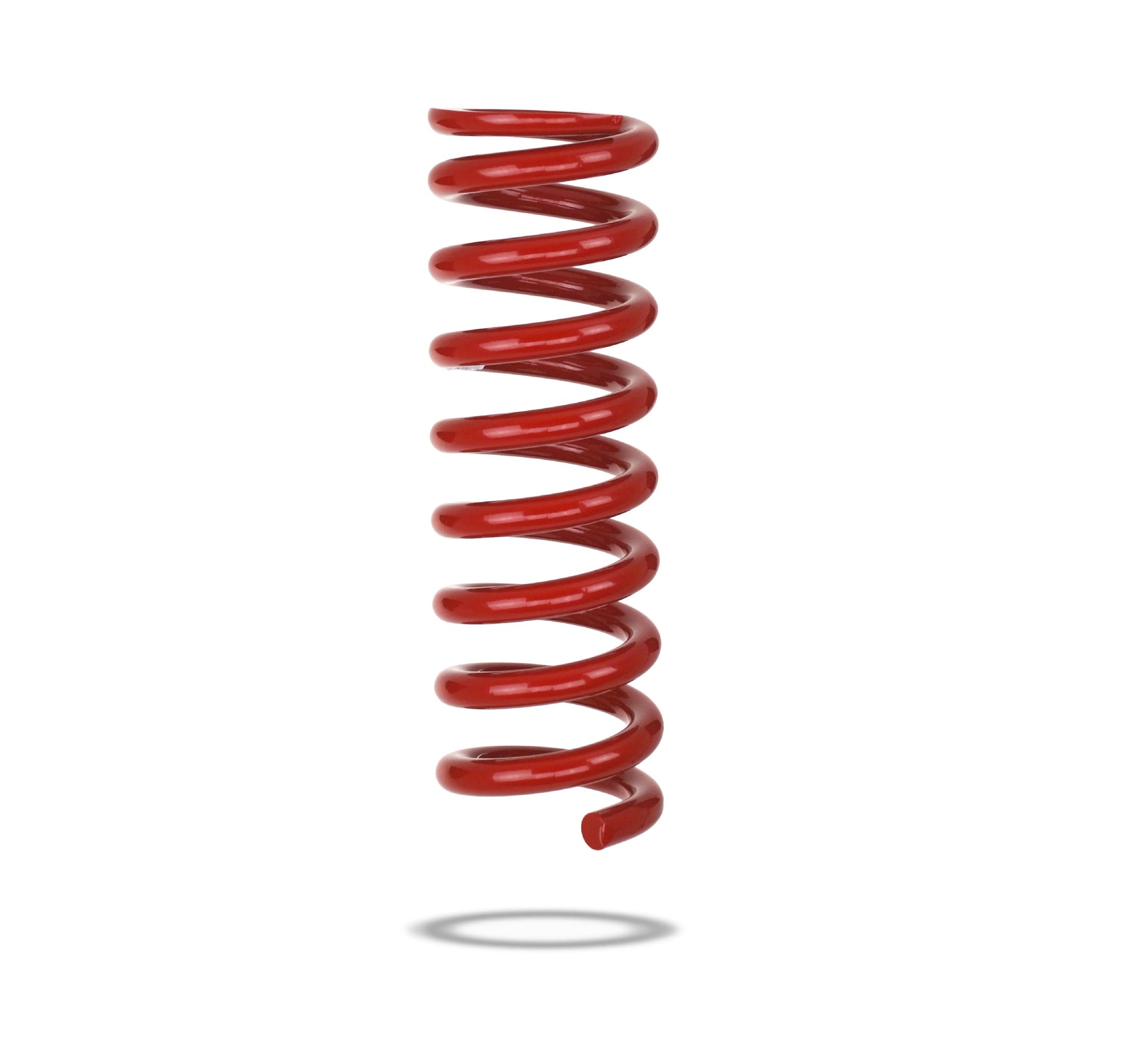

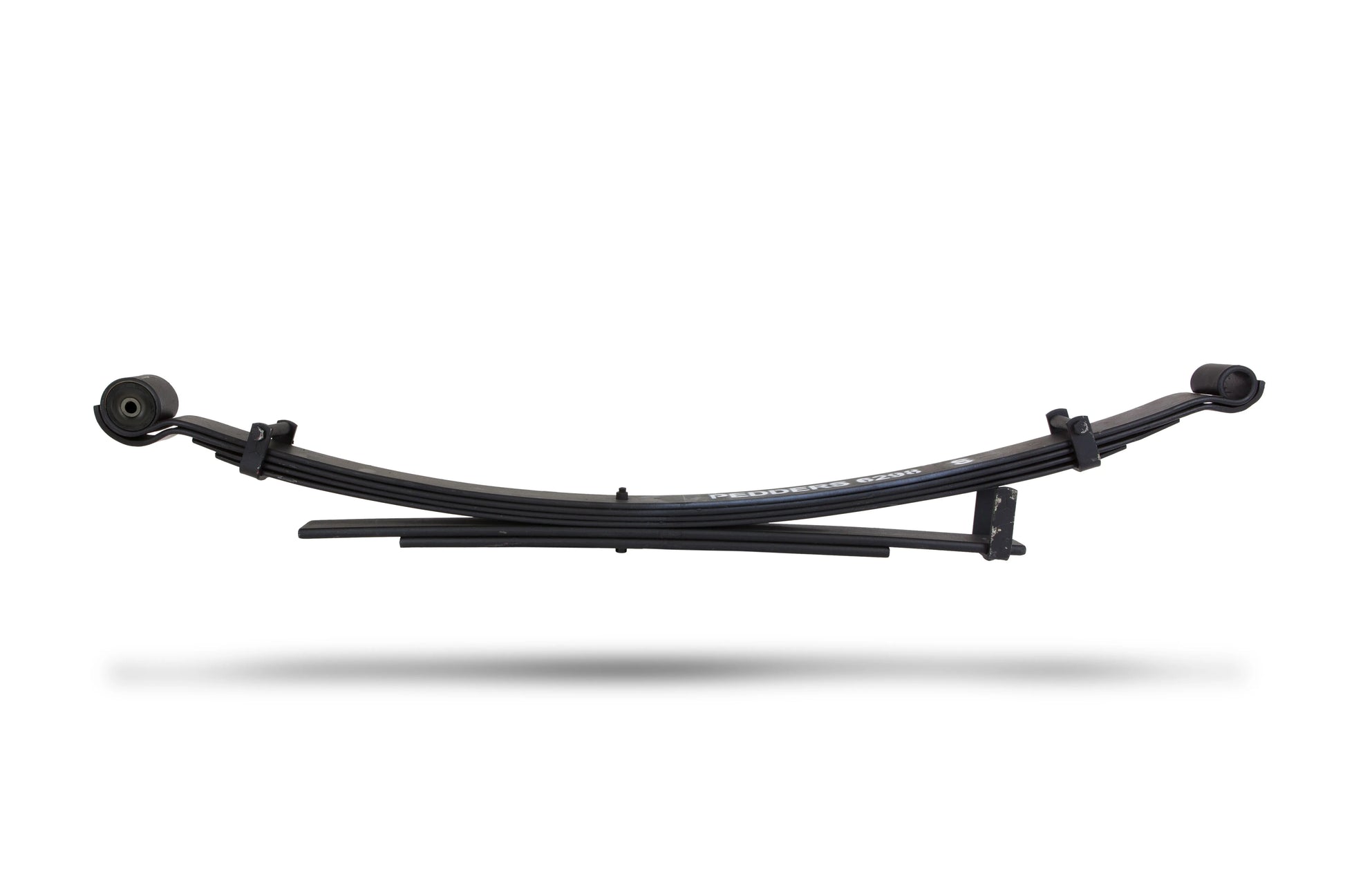

This kit includes front coil springs, new rear leaf springs, Pedders TrakRyder shocks, and the necessary bushes and U-bolts for installation. It enhances stance and tyre fitment by allowing larger tyres due to increased ride height. Designed as an entry-level lift, it improves clearance and vehicle looks for daily driving and moderate off-road use.

For vehicles frequently carrying heavy loads or towing trailers, Pedders recommends their heavy-duty lift options to better match usage demands. The kit replaces original suspension components without requiring other vehicle modifications.

Technology & Materials

Sintered iron piston shocks feature a large 35mm bore for robust performance. Premium grade steel coils contribute to reliable suspension behaviour and durability on varied terrain.

Installation & Compatibility

The kit components replace original parts and come with all necessary hardware such as bushes and U-bolts for a bolt-in installation. No cutting or welding is required. A professional wheel alignment is strongly recommended after installation to optimise handling and tyre wear.

This kit is comfort-focused and intended for general use rather than heavy-duty applications; consider heavy-duty kits for constant loads or towing.

Technical Specification

• Vehicle lift: approx. 40mm

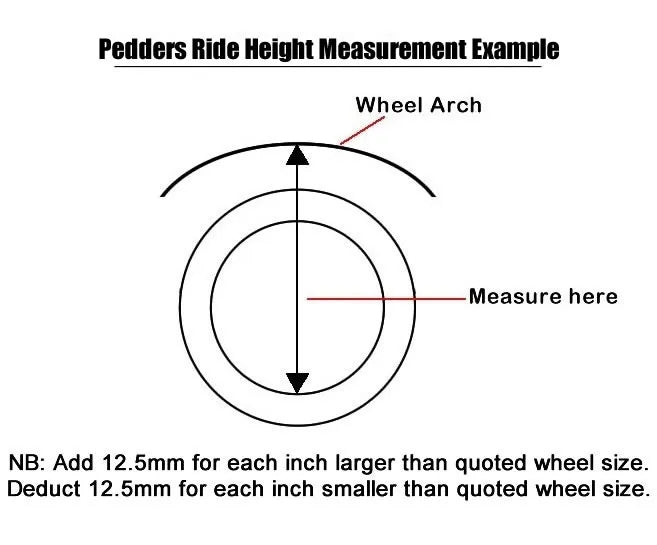

• Front ride height: 840mm with 17-inch wheels
• Rear ride height: approximately 40mm higher than standard
• Shock bore size: 35mm

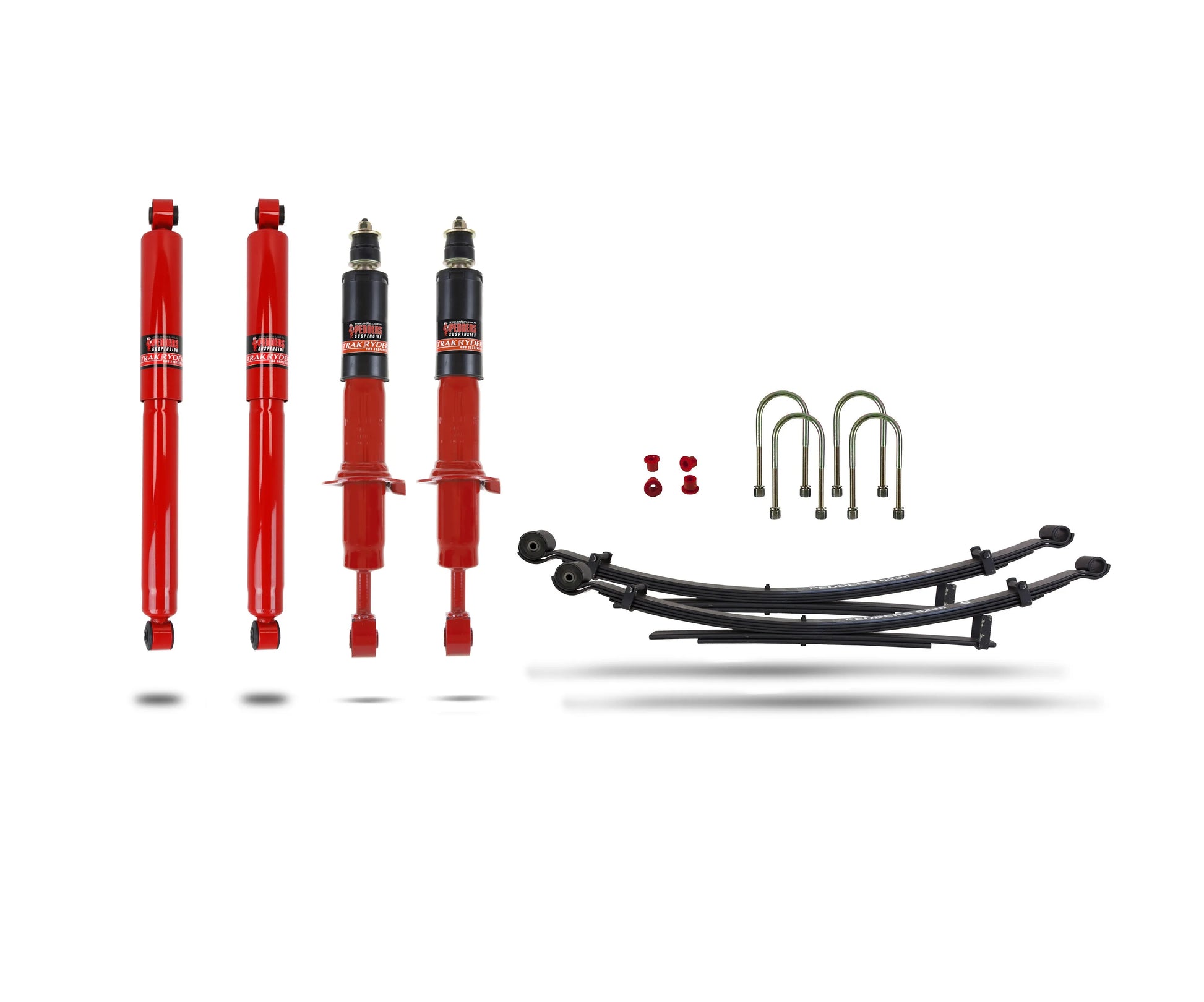

• Included components: front coil springs, rear leaf springs, TrakRyder shocks, bushes, U-bolts

Ride height may vary with additional equipment such as winches or bull bars; consult Pedders for correct spring selection.

Why Choose This Kit

• Matched components designed to work together for smooth performance
• Proven use on Ford Ranger PX for improved ground clearance
• Comes with all necessary hardware for straightforward installation
• Supported by a 2-year / 40,000km warranty for peace of mind

Additional information

This kit is available with the TUV certificate. Please see the related items section.

Compatibility
Ford	Ranger	PX MK2, 4WD	PX MK2, 4WD | 2015-2018	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Ford	Ranger	PX MK3, 4WD 2.2L and 3.2L ONLY	PX MK3, 4WD 2.2L and 3.2L ONLY | 2018-2019	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Ford	Ranger	PX, 2WD Hi-Ride	PX, 2WD Hi-Ride | 2011-2015	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Ford	Ranger	PX, 2WD Hi-Ride	PX, 2WD Hi-Ride | 2011-2015	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Ford	Ranger	PX, 4WD	PX, 4WD | 2011-2015	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Mazda	BT50	UP, 2WD Hi-Ride	UP, 2WD Hi-Ride | 2011-2015	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Mazda	BT50	UP, 4WD	UP, 4WD | 2011-2015	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Mazda	BT50	UR, 2WD Hi-Ride	UR, 2WD Hi-Ride | 2015-Onward	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Mazda	BT50	UR, 4WD	UR, 4WD | 2015-Onward	SUSPENSION KITS	Kits	Pedders 1.75 Inch Suspension Lift Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
