Pedders Heavy Duty Load Carrying and Towing Suspension Kit Ford Ranger PX

This suspension kit is designed for Ford Ranger PX owners who require enhanced load carrying and towing capacity. It raises the vehicle around 40mm to improve ground clearance and offers comfort and handling comparable to the standard setup.

Key Features

• 1.75 inch lift (approx. 40mm vehicle raise)
• Improved load carrying and towing capability
• Increased off-road ground clearance
• Sintered iron piston shocks with large 40mm bore
• Premium grade steel coil springs
• Backed by a 2-year / 40,000km warranty

Product Overview

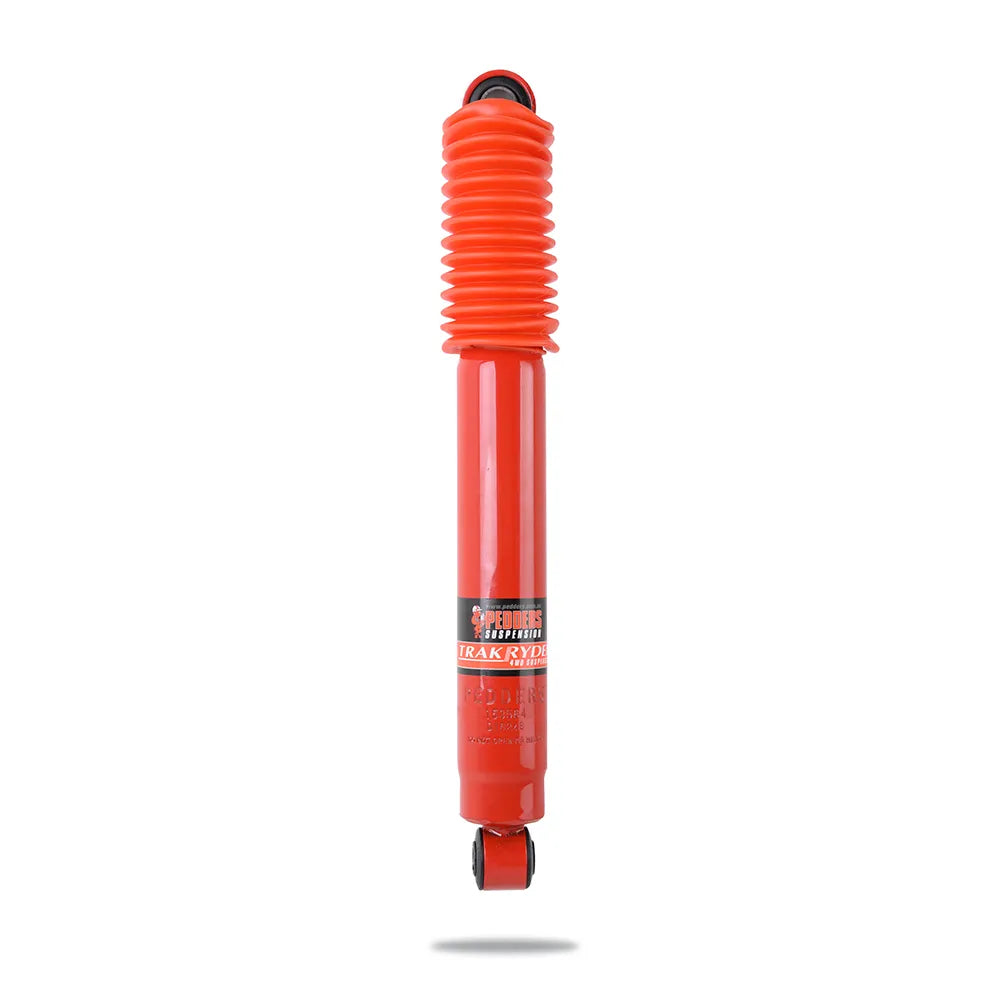

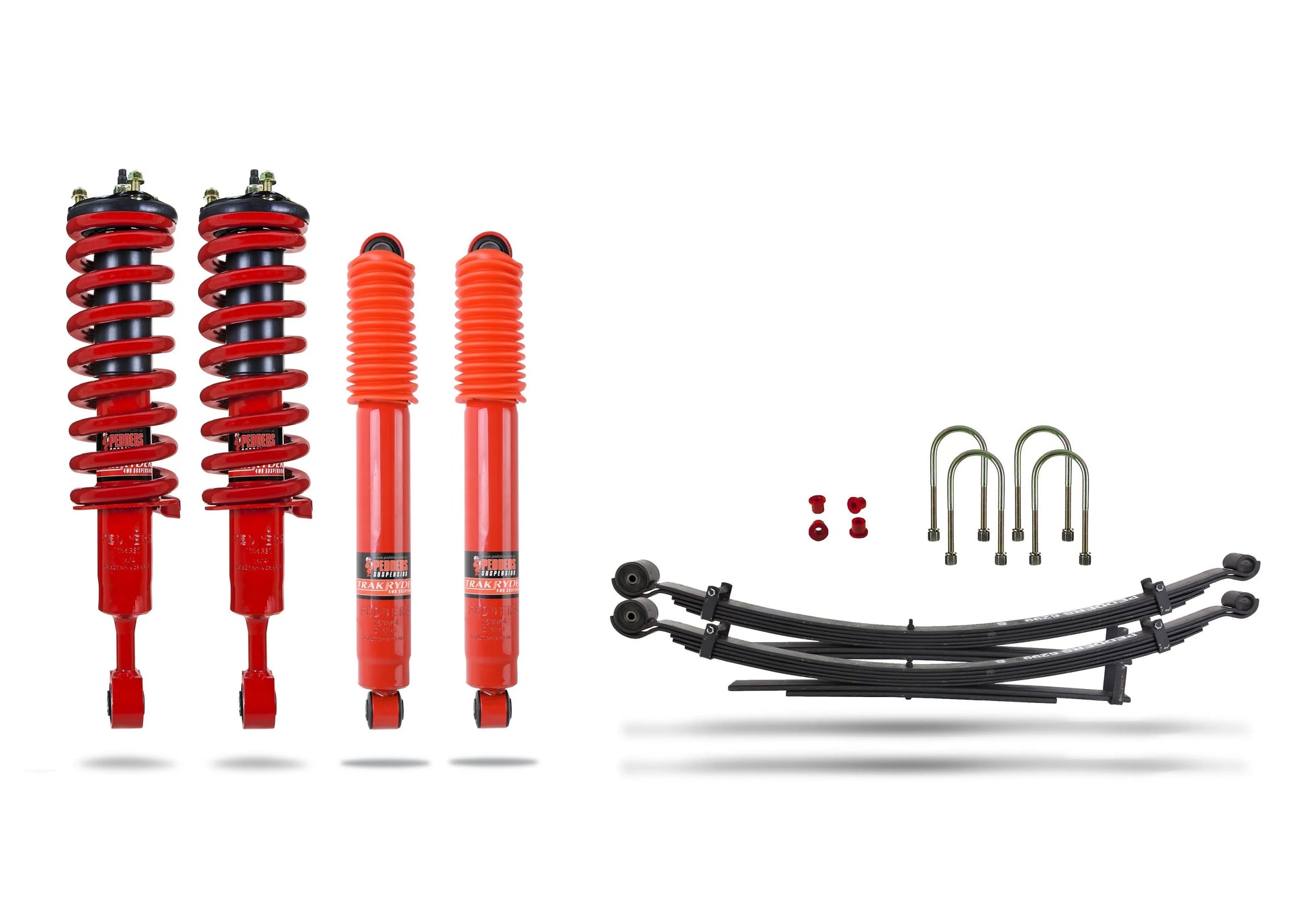

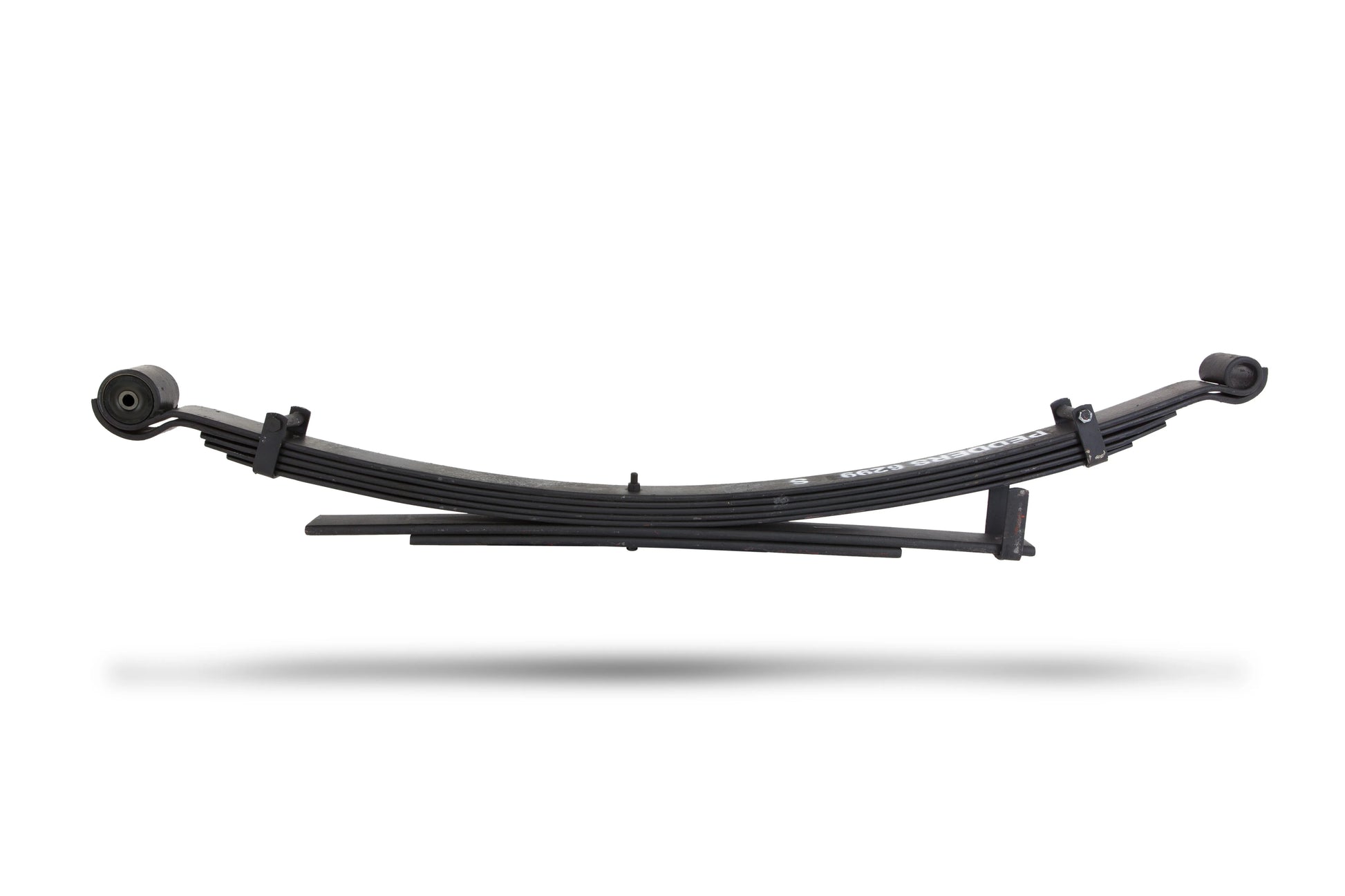

This kit includes front coil springs, new rear leaf springs, and Pedders TrakRyder Foam Cell shocks designed to handle load and towing conditions without sacrificing ride comfort. It is suitable for users who experience rear sag under load but operate their Ranger unladen. The 40mm lift improves ground clearance and accommodates larger tyres, enhancing both appearance and off-road ability. Users with additional front equipment, like winches or bull bars, should consult to ensure correct spring selection. This is a first-level heavy-duty suspension solution balancing durability with on-road comfort.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

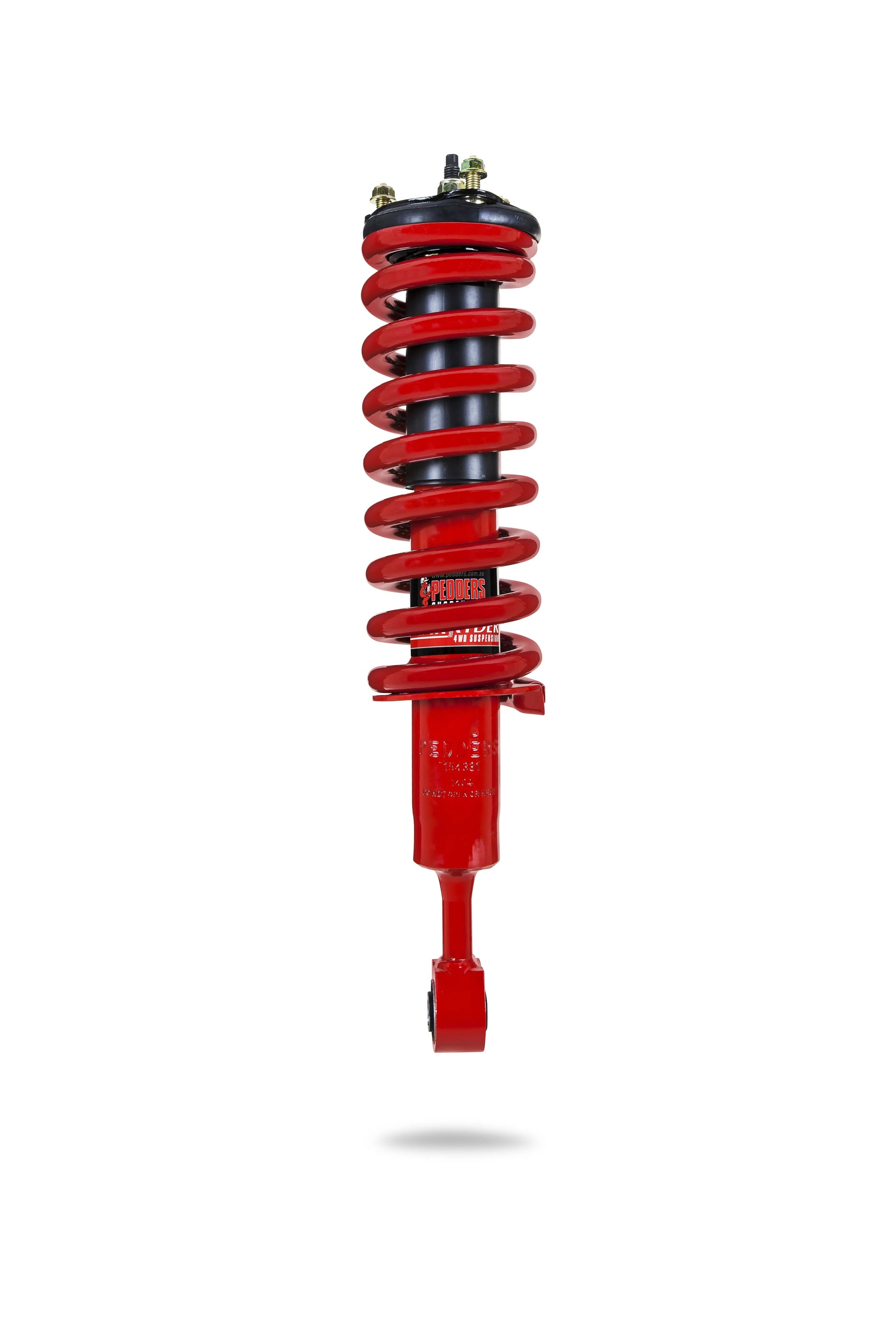

The kit includes fully assembled Ezifit struts with Pedders Foam Cell shocks, premium springs, new top mounts, bump stops, and boots, allowing quick installation without spring compressors or reusing old parts. No other vehicle modifications are needed. A professional wheel alignment is strongly recommended after installation to ensure optimal performance.

This kit is suitable for standard load carrying and towing conditions, not intended for continuous heavy load usage.

Technical Specification

• Vehicle lift: Approx. 40mm raise

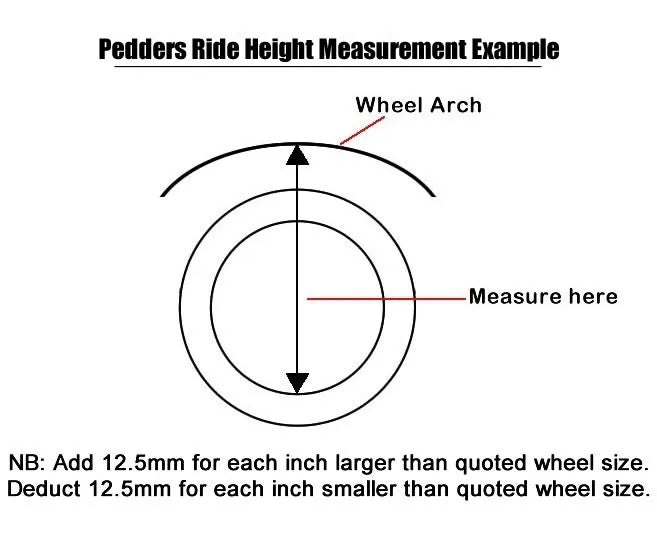

• Front height: 840mm with 17-inch wheels
• Rear height: Approx. 40mm higher than standard
• Shock type: Sintered iron piston with 40mm bore

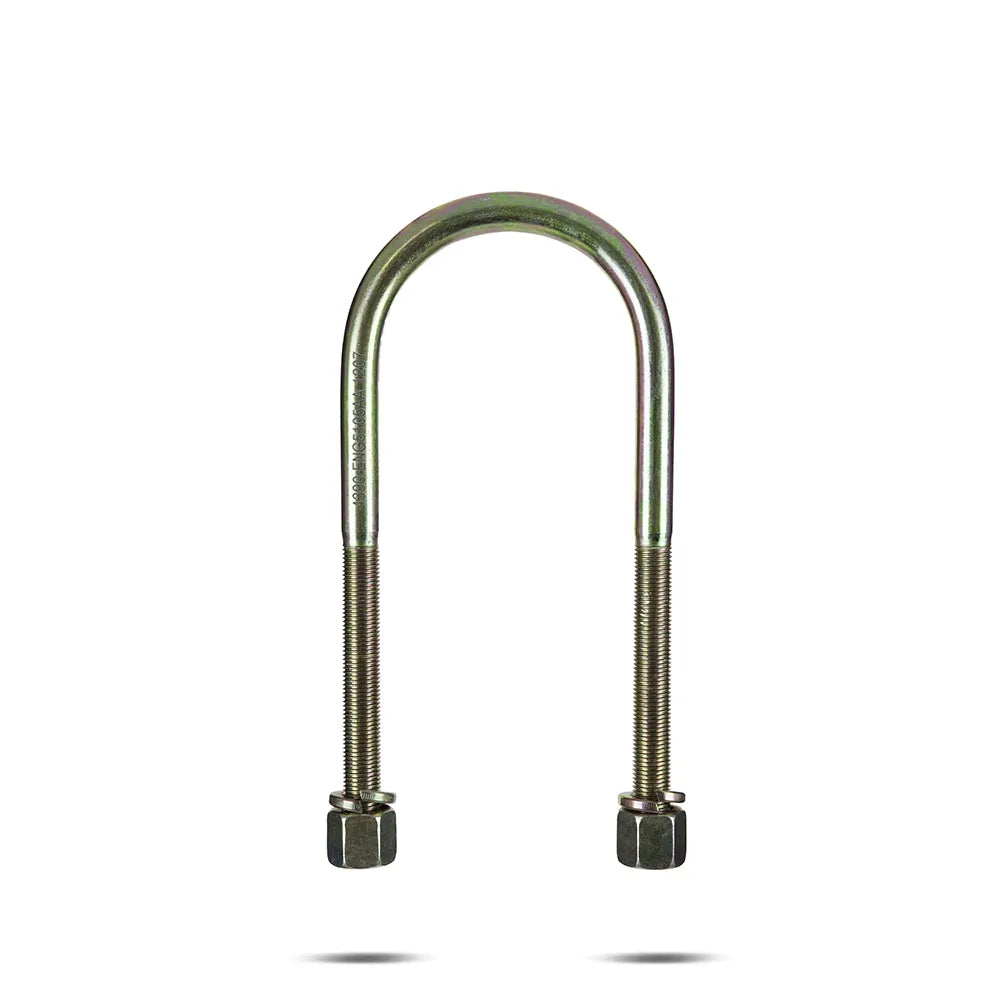

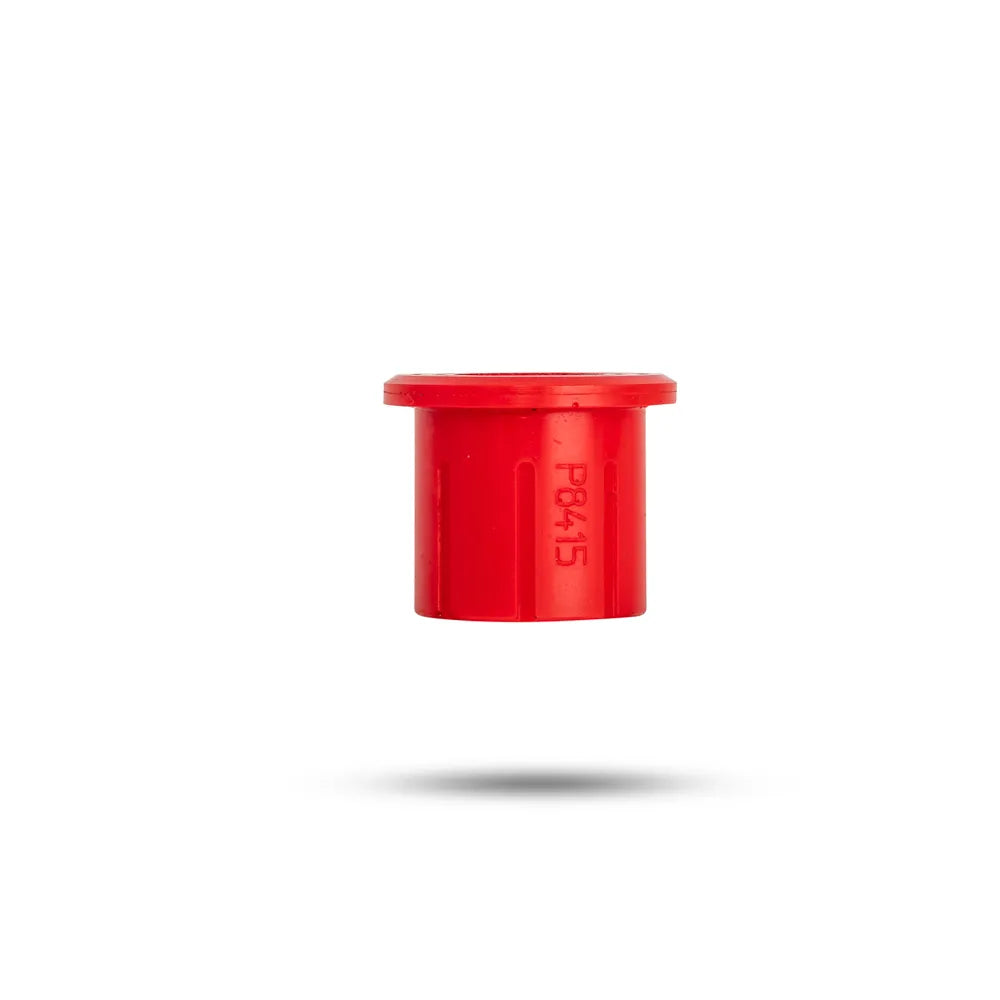

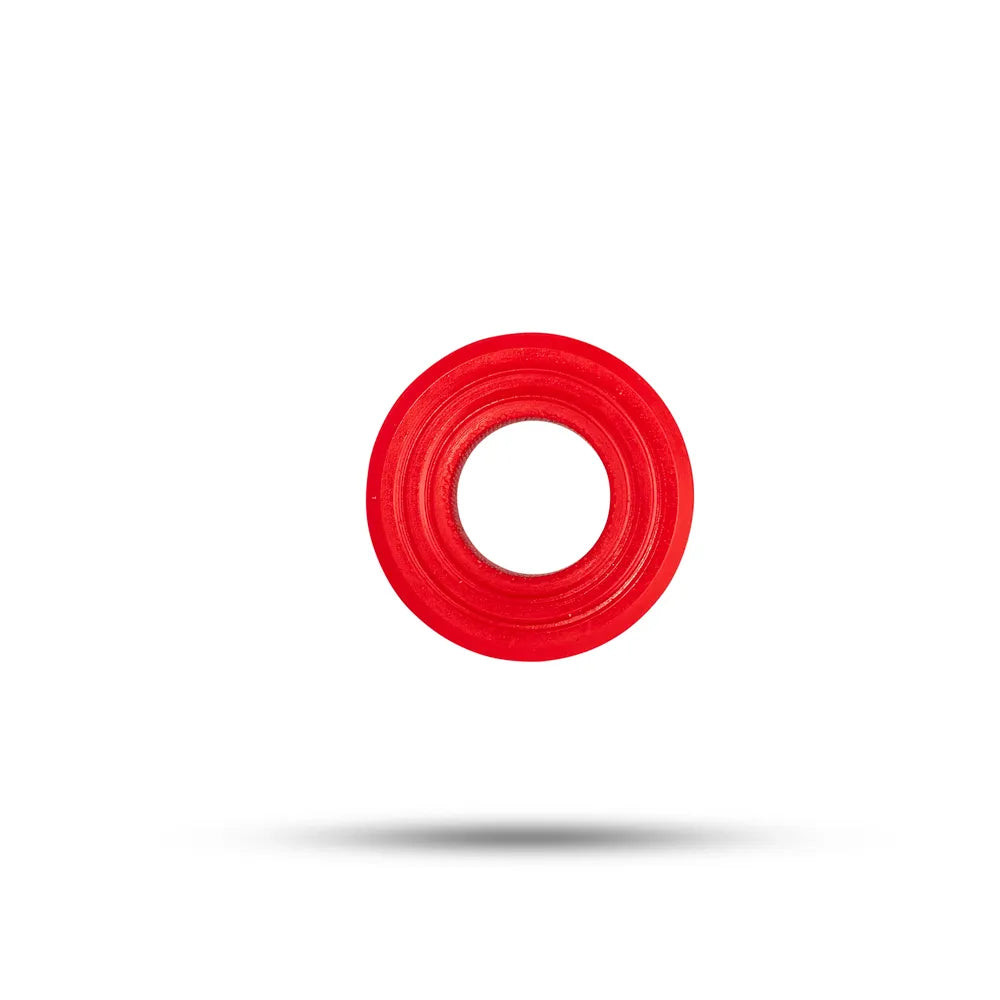

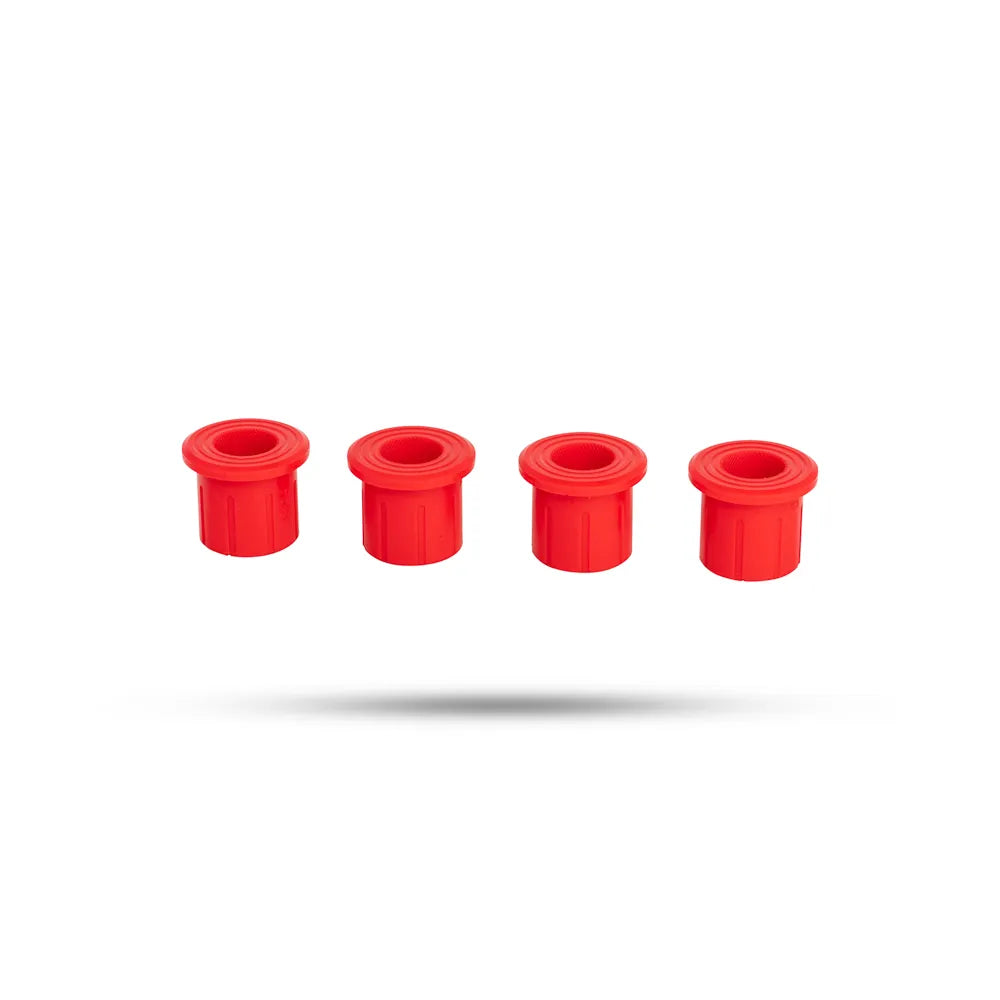

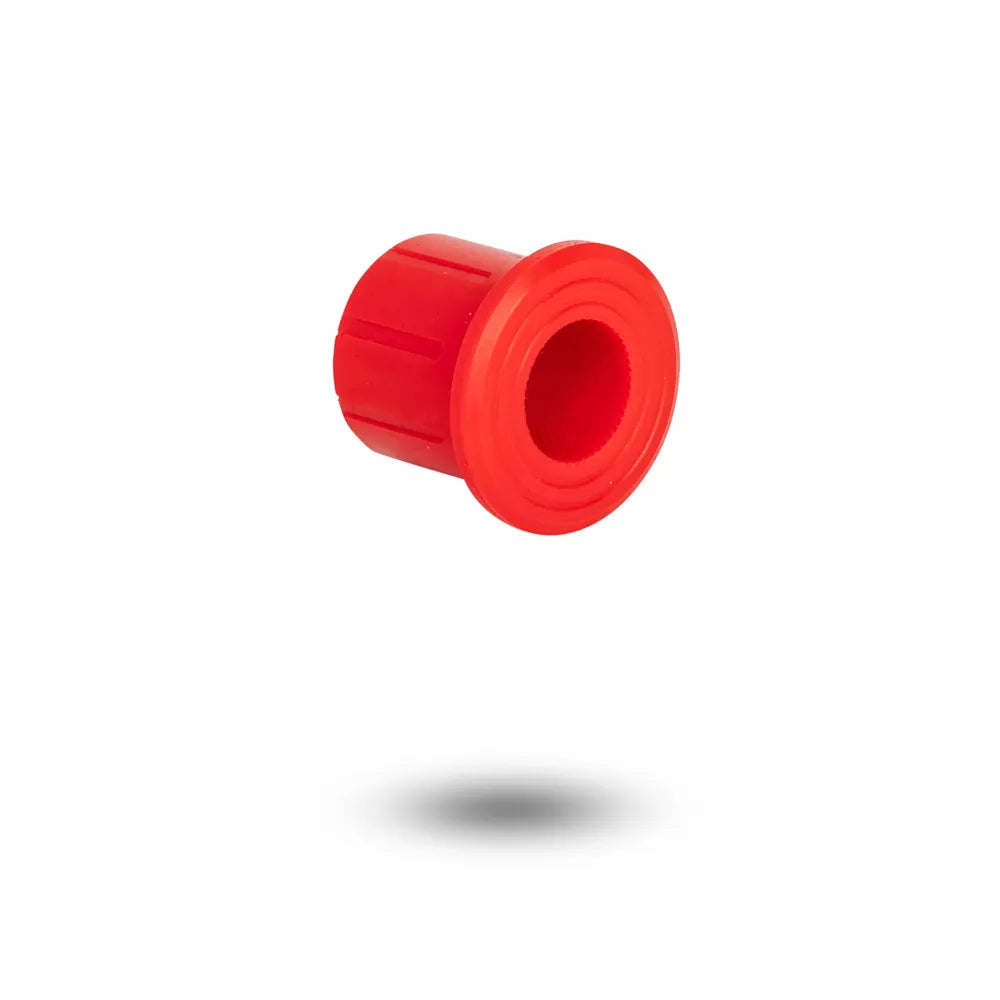

• Includes: Front coil springs, rear leaf springs, bushes, U-bolts, fully assembled Ezifit struts
• Recommended: Wheel alignment after installation

Ride height may vary if additional front accessories, such as bull bars or winches, are fitted; consultation is advised to select correct springs.

Why Choose Pedders

• Complete matched system of springs and Foam Cell shocks designed for load and towing
• Proven technology balancing improved capacity with standard ride comfort
• Easy installation with fully assembled components
• Supported by a 2-year / 40,000km warranty for confidence

Additional information

This kit is available with the TUV certificate. Please see the related items section.

Compatibility
Ford	Ranger	PX MK2, 4WD	PX MK2, 4WD | 2015-2018	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Ford	Ranger	PX MK3, 4WD 2.2L and 3.2L ONLY	PX MK3, 4WD 2.2L and 3.2L ONLY | 2018-2019	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Ford	Ranger	PX, 2WD Hi-Ride	PX, 2WD Hi-Ride | 2011-2015	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Ford	Ranger	PX, 2WD Hi-Ride	PX, 2WD Hi-Ride | 2011-2015	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Ford	Ranger	PX, 4WD	PX, 4WD | 2011-2015	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Mazda	BT50	UP, 2WD Hi-Ride	UP, 2WD Hi-Ride | 2011-2015	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Mazda	BT50	UP, 4WD	UP, 4WD | 2011-2015	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Mazda	BT50	UR, 2WD Hi-Ride	UR, 2WD Hi-Ride | 2015-Onward	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
Mazda	BT50	UR, 4WD	UR, 4WD | 2015-Onward	SUSPENSION KITS	Kits	Pedders Heavy Duty Load Carrying and Towing Suspension Kit. Ford Ranger, PX	Height: approx. +40mm	Minimum weight required: None
