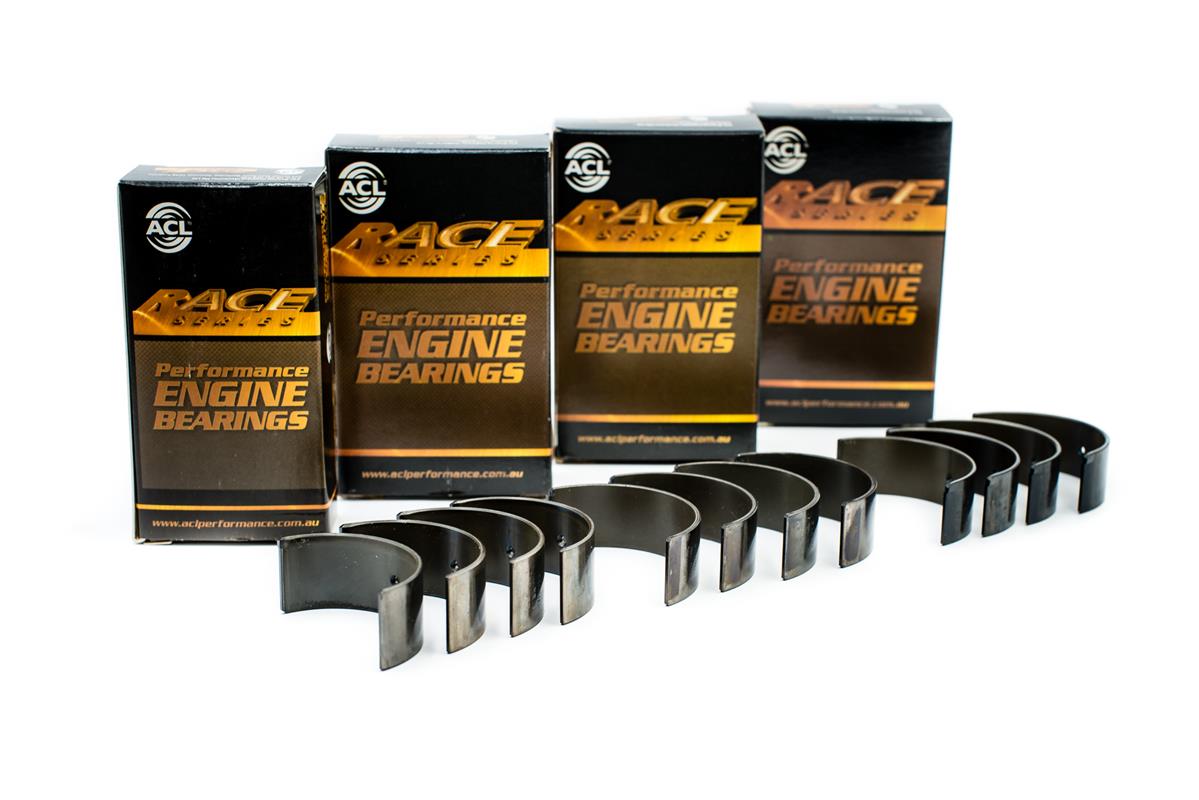

6B2380H-010

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Tunnel [mm]	51.427 / 51.440
Shaft [mm]	48.235 / 48.260
Max. Wall	1.572
Max. Length	18.34
Half type	Identical Halves

Compatibility
Holden	Torana LC, LJ	OHV 12v	138 Red Motor	6B2380H	-10
Holden	Premier, Special, Standard - EH, HD	OHV 12v	149 Red Motor	6B2380H	-10
Holden	Belmont, Kingswood, Monaro, Premier, Special, Standard HG, HK, HR HT, Torana LC	OHV 12v	161 Red Motor	6B2380H	-10
Holden	Bedford, Commodore VB, Kingswood HJ, HQ Torana LC, LH, LJ, LX, UC	OHV 12v	173 Red Motor	6B2380H	-10
Holden	Premier, Special, Standard - EH, HD	OHV 12v	179	6B2380H	-10
Holden	Belmont, Kingswood, Monaro, Premier, Special, Standard - HG, HK, HR, HT, Torana LC	OHV 12v	186 Red Motor	6B2380H	-10
Holden	Commodore VC, VH	OHV 12v	2.85L Blue Motor	6B2380H	-10
Holden	Bedford, Commodore VB, Belmont, Kingswood, Monaro, Premier HJ, HQ, HX, HZ, Statesman HQ, Torana LH, LJ, LX, UC	OHV 12v	202 Red Motor	6B2380H	-10
Holden	Commodore VC, VH, VK, Ute WB	OHV 12v	202 Blue Motor	6B2380H	-10
Holden	Commodore VC, VH, VK, Ute WB	OHV 12v	202 Black Motor	6B2380H	-10
