ACL
5M7297H-001
5M7297H-001
Prezzo di listino
€420,35 EUR
Prezzo di listino
Prezzo scontato
€420,35 EUR
Quantità
Impossibile caricare la disponibilità di ritiro

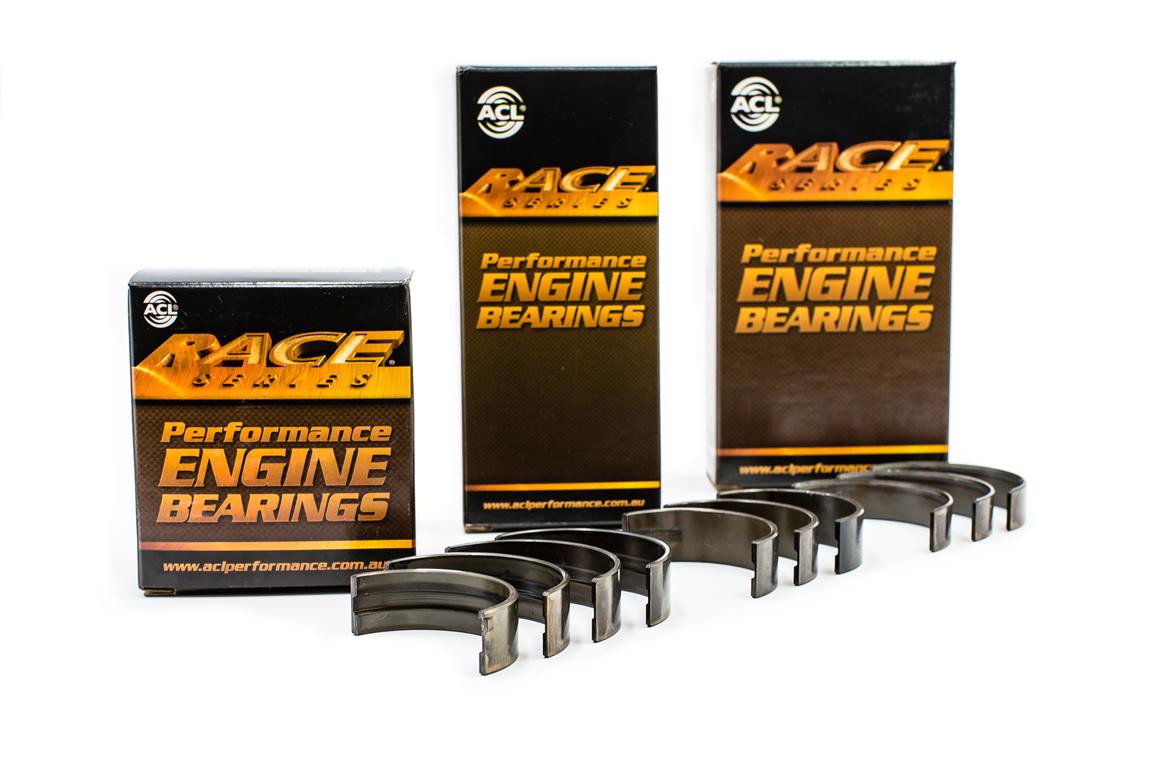

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 69.873/69.887 |
| Shaft [mm] | 64.993/65.007 |
| Max. Wall | 2.43 |
| Max. Length | 26.1 |
| Half type | Upper & lower |
| Compatibility | |||||
|---|---|---|---|---|---|
| Holden | Caprice WL, WM, WMII, Commodore VZ, Crewman VZ, Statesman WL, WM, Ute VZ | OHV 16v | 6.0L Gen IV L76 | 5M7297H | -1 |
| Holden | Commodore VE, VEII, Ute VE, VEII | OHV 16v | 6.0L Gen IV L98 | 5M7297H | -1 |
| Holden | HSV E Series - Clubsport, Maloo, Senator, Z Series - Clubsport, Coupe, Maloo, Senator, Grange WL, WM | OHV 16v | 6.0L Gen IV LS2 | 5M7297H | -1 |
| Holden | HSV E Series -Clubsport, GTS, Maloo, Senator, Grange WM | OHV 16v | 6.2L Gen IV LS3 | 5M7297H | -1 |
| Holden | Adventra VYII | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Adventra VZ | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Commodore VT | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Commodore VX | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Commodore VY | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Commodore VYII | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Commodore VZ | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Crewman VYII | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Crewman VZ | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Caprice WH | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Caprice WHII | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Caprice WK | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Caprice WL | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Statesman WH | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Statesman WHII | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Statesman WK | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Statesman WL | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Monaro V2 | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Monaro VZ | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Monaro Ute VU | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Monaro VY | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Monaro VYII | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Clubsport VT | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Clubsport Y Series | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Clubsport Coupe V2 | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Clubsport VZ | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Grange WH | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Grange WHII | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Grange WK | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Grange GTS VX | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Grange Y Series | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Maloo VU | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Maloo Y Series | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Senator VT | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Senator VX | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
| Holden | Senator Y Series | OHV 16v | 5.7L Gen III LS1 | 5M7297H | -1 |
