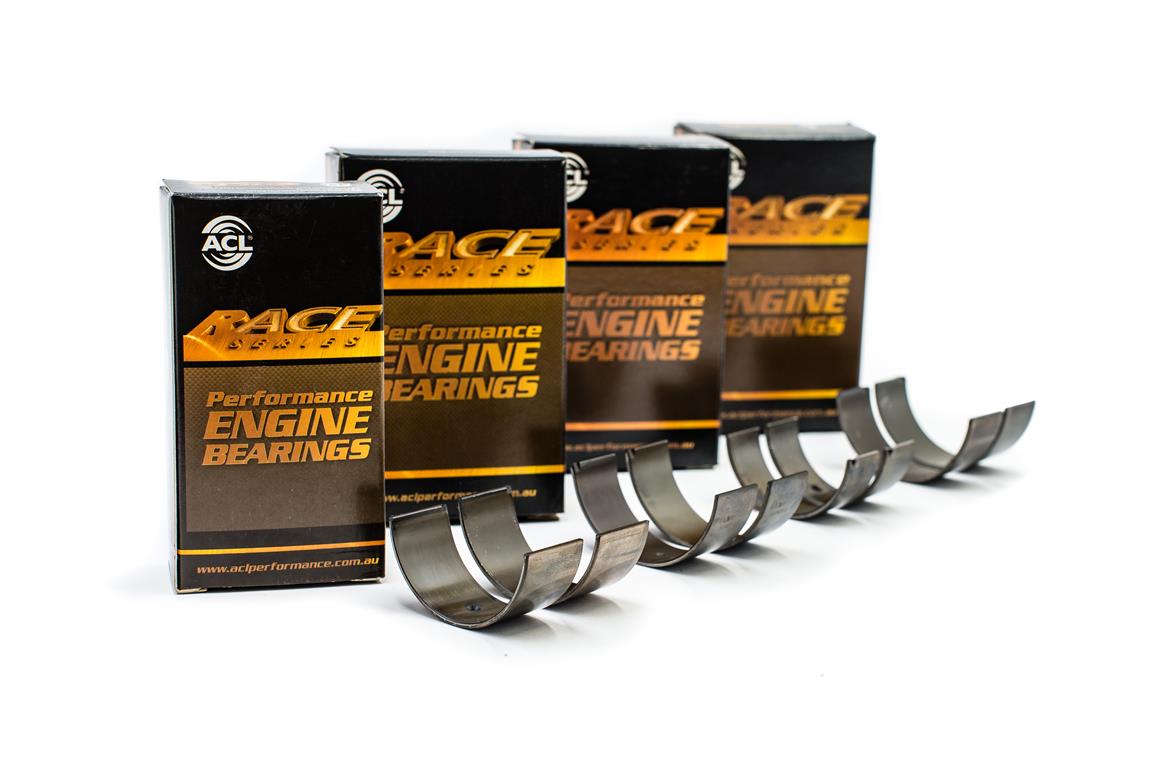

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 51.000 / 51.020 |
| Shaft [mm] | 47.990 / 48.000 |
| Max. Wall | 1.49 |
| Max. Length | 15.6 |
| Half type | Identical halves |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota | Aurion (_V4_) | 2.0 VVT-i | 03.2006 - 07.2009 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Avensis (_T25_) | 2.0 VVT-i | 03.2003 - 10.2008 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Avensis Kombi (_T25_) | 2.0 VVT-i | 04.2003 - 11.2008 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Avensis Sedan (_T25_) | 2.0 VVT-i 4WD | 10.2003 -10.2008 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Avensis Sedan (_T25_) | 2.0 VVT-i | 01.2003 - 11.2008 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Avensis Sedan (_T27_) | 2.0 VVT-i | 11.2008 - 04.2011 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Avensis Verso (_M2_) | 2.0 VVT-i | 08.2001 - 11.2009 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Camry Sedan (_V3_) | 2.0 VVT-i | 08.2001 - 11.2006 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Camry Sedan (_V4_) | 2.0 VVT-i | 05.2006 - 09.2011 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Camry Sedan (_V5_) | 2.0 VVT-i | 09.2011 - 11.2014 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Rav 4 II (_A2_) | 2.0 VVT-i | 09.2000 - 12.2003 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Rav 4 II (_A2_) | 2.0 VVT-i 4WD | 05.2000 - 11.2005 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Toyota | Rav 4 III (_A3_) | 2.0 VVT-i 4WD | 02.2006 - 06.2013 | 1AZ-FE | 4 | 4B8411H | 1998 cc | DOHC 16V | -STD | 86.0 | 86.0 |
| Daihatsu | Altis Sedan | 2.4 VVT-i | 08.2001 - 04.2010 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Daihatsu | Altis Sedan | 2.4 VVT-i 4WD | 01.2006 - 12.2010 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Lexus | ES (_V4_) | 240 | 08.2009 - 06.2012 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Scion | tC Coupe | 2.4 VVT-i | 09.2004 - 12.2010 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Alphard / Vellfire (_H2_) | 2.4 VVT-i | 04.2008 - 12.2014 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Alphard / Vellfire (_H2_) | 2.4 VVT-i 4WD | 04.2008 - 12.2014 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Alphard I (_H1_) | 2.4 VVT-i | 09.2003 - 04.2008 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Alphard I (_H1_) | 2.4 VVT-i 4WD | 09.2003 - 04.2008 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Aurion (_V4_) | 2.4 VVT-i | 03.2006 - 07.2009 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Auris (_E15_) | 2.4 VVT-i | 11.2006 - 04.2012 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Auris (_E15_) | 2.4 VVT-i 4WD | 11.2006 - 04.2012 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Avensis Verso (_M2_) | 2.4 VVT-i | 05.2001 - 12.2011 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Avensis Verso (_M2_) | 2.4 VVT-i 4WD | 05.2001 - 12.2010 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Blade (_E15_) | 2.4 VVT-i | 11.2006 - 04.2012 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Blade (_E15_) | 2.4 VVT-i 4WD | 11.2006 - 04.2012 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Camry Sedan (_V3_) | 2.4 VVT-i | 03.2002 - 11.2006 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Camry Sedan (_V3_) | 2.4 VVT-i 4WD | 09.2001 - 01.2006 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Camry Sedan (_V4_) | 2.4 VVT-i | 01.2006 - 09.2011 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Camry Sedan (_V4_) | 2.4 VVT-i 4WD | 01.2006 - 09.2011 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Corolla Rumion (E15_) | 2.4 VVT-i | 05.2010 - 11.2015 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Corolla Sedan (_E15_) | 2.4 VVT-i | 01.2008 - 07.2014 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Harrier (_U1_) | 2.4 VVT-i | 06.2000 - 01.2003 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Harrier (_U1_) | 2.4 VVT-i 4WD | 06.2000 - 01.2003 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Harrier (_U3_) | 2.4 VVT-i | 02.2003 - 12.2013 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Harrier (_U3_) | 2.4 VVT-i 4WD | 10.2003 - 06.2012 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Highlander (_U2_) | 2.4 VVT-i | 09.2000 - 05.2007 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Highlander (_U2_) | 2.4 VVT-i 4WD | 09.2000 - 05.2007 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Mark X ZIO (_A1_) | 2.4 VVT-i | 09.2007 - | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Mark X ZIO (_A1_) | 2.4 VVT-i 4WD | 09.2007 - | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Matrix (_E14_) | 2.4 VVT-i | 01.2008 - 05.2014 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Matrix (_E14_) | 2.4 VVT-i 4WD | 09.2008 - 05.2014 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Previa II (_R3_) | 2.4 VVT-i | 02.2000 - 01.2006 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Previa II (_R3_) | 2.4 VVT-i 4WD | 02.2000 - 01.2006 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Previa III (_R2_, _R5_) | 2.4 VVT-i | 10.2005 - | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Previa III (_R2_, _R5_) | 2.4 VVT-i 4WD | 01.2006 - | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Rav 4 II (_A2_) | 2.4 VVT-i | 08.2000 - 11.2005 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Rav 4 II (_A2_) | 2.4 VVT-i 4WD | 05.2000 - 11.2005 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Rav 4 III (_A3_) | 2.4 VVT-i | 11.2005 - 12.2013 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Rav 4 III (_A3_) | 2.4 VVT-i 4WD | 11.2005 - 06.2013 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Solara Coupe (_V2_) | 2.4 VVT-i | 07.2001 - 11.2002 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Solara Coupe (_V3_) | 2.4 VVT-i | 07.2001 - 11.2008 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Solara Cabriolet (_V2_) | 2.4 VVT-i | 04.2000 - 09.2003 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Solara Cabriolet (_V3_) | 2.4 VVT-i | 10.2003 - 11.2006 | 2AZ-FE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Lexus | HS (ANF10) | 250h | 09.2009 - 12.2002 | 2AZ-FXE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Alphard / Vellfire (_H2_) | 2.4 Hybrid | 12.2011 - 12.2014 | 2AZ-FXE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Alphard I (_H1_) | 2.4 Hybrid | 09.2003 - 04.2008 | 2AZ-FXE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Alphard I (_H1_) | 2.4 Hybrid 4WD | 09.2003 - 04.2008 | 2AZ-FXE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Camry Sedan (_V4_) | 2.4 Hybrid | 01.2006 - 09.2011 | 2AZ-FXE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Previa II (_R3_) | 2.4 Hybrid 4WD | 07.2002 - 12.2005 | 2AZ-FXE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
| Toyota | Previa III (_R2_, _R5_) | 2.4 Hybrid | 05.2012 - | 2AZ-FXE | 4 | 4B8411H | 2362 cc | DOHC 16V | -STD | 88.5 | 96.0 |
