ACL
4B1850H-STD
4B1850H-STD
Prezzo di listino
€107,38 EUR
Prezzo di listino
Prezzo scontato
€107,38 EUR
Quantità
Impossibile caricare la disponibilità di ritiro

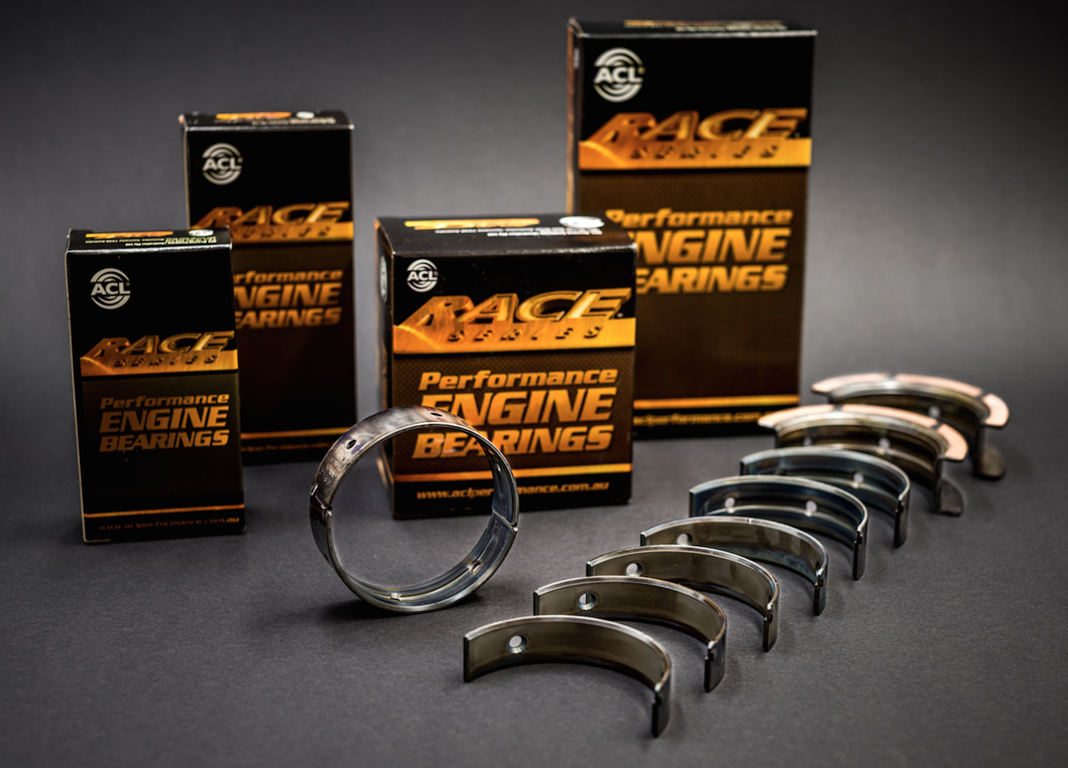

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 62.014 / 62.032 |
| Shaft [mm] | 58.982 / 59 |
| Max. Wall | 1.491 |
| Max. Length | 24.6 |
| Half Type | Identical halves |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota | 4 Runner II (_N13_) | 3.0 TD | 08.1993 - 03.1996 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | 4 Runner III (_N18_) | 3.0 TD | 09.2000 - 07.2002 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | 4 Runner IV (_N21_) | 3.0 D-4D 4WD | 10.2002 - 08.2005 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Dyna Autobus (XZU3_, XZU4_, WU4_, WU3_, LY2_, KDY2_) | 3.0 D-4D | 08.2001 - 02.2008 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Dyna Platform / Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_) | 3.0 D-4D | 09.2006 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Dyna Platform / Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_) | 2.5 D-4D | 07.2001 - | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Fortuner (_N15_, _N16_) | 3.0 D-4D 4WD | 05.2015 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Fortuner (_N5_, _N6_) | 3.0 D-4D | 06.2004 - 05.2015 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Fortuner (_N5_, _N6_) | 3.0 D-4D 4WD | 08.2009 - 05.2015 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Granvia (_H2_, _H1_) | 3.0 TD | 08.1995 - 12.2004 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Granvia (_H2_, _H1_) | 3.0 TD 4WD | 08.1995 - 05.2002 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hiace / Commuter V Autobus (TRH2__, KDH2__, LH2__, GDH2__) | 3.0 D-4D | 08.2004 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Hiace / Commuter V Autobus (TRH2__, KDH2__, LH2__, GDH2__) | 2.5 D-4D | 09.2006 - 06.2014 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hiace / Commuter V Autobus (TRH2__, KDH2__, LH2__, GDH2__) | 2.5 D-4D 4WD | 08.2004 - 09.2007 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hiace IV Autobus (__H1_, __H2_) | 2.5 D-4D | 08.2001 - 12.2012 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hiace IV Autobus (__H1_, __H2_) | 2.5 D-4D 4WD | 09.2006 - 12.2012 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hiace IV Autobus (__H1_, __H2_) | 2.5 D-4D 4WD | 11.2001 - 08.2006 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hiace IV Autobus (_H1_) | 3.0 TD 4WD | 08.1993 - 08.2004 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hiace IV Autobus (_H1_) | 3.0 TD | 08.1993 - 08.2004 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hiace IV Furgon (__H1_, __H2_) | 3.0 TD | 08.1995 - 08.2004 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hiace SBV IV Furgon (__H1_, __H2_) | 2.5 D-4D | 08.2001 - 12.2012 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hiace SBV IV Furgon (__H1_, __H2_) | 2.5 D-4D 4WD | 08.2001 - 12.2012 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hiace V Furgon (TRH2__, KDH2__, LH2__, GDH2__) | 3.0 D-4D | 01.2005 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Hiace V Furgon (TRH2__, KDH2__, LH2__, GDH2__) | 2.5 D-4D | 06.2004 - | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hiace V Furgon (TRH2__, KDH2__, LH2__, GDH2__) | 3.0 D-4D 4WD | 09.2007 - 05.2019 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Hilux II SUV (_N13_) | 3.0 TD | 08.1993 - 10.1995 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hilux III SUV (_N1_, _N2_) | 3.0 TD 4WD | 12.1995 - 04.2005 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hilux V pick-up (_N8_, _N9_, _N10_, _N11_) | 3.0 TD 4WD | 08.1993 - 11.1995 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hilux VI pick-up (_N1_) | 2.5 D-4D | 11.2001 - 07.2005 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hilux VI pick-up (_N1_) | 2.5 D-4D 4WD | 11.2001 - 07.2005 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hilux VI pick-up (_N1_) | 3.0 TD | 08.1997 - 04.2005 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hilux VI pick-up (_N1_) | 3.0 TD 4WD | 08.1997 - 04.2005 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Hilux VII pick-up (_N1_, _N2_, _N3_) | 3.0 D-4D 4WD | 03.2005 - 05.2015 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Hilux VII pick-up (_N1_, _N2_, _N3_) | 3.0 D-4D | 08.2005 - 05.2015 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Hilux VII pick-up (_N1_, _N2_, _N3_) | 2.5 D-4D 4WD | 03.2005 - 05.2015 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hilux VII pick-up (_N1_, _N2_, _N3_) | 2.5 D-4D | 03.2005 - 05.2015 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Hilux VII Platform / Chassis (_N1_, _N2_) | 3.0 D-4D | 02.2005 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Hilux VII Platform / Chassis (_N1_, _N2_) | 3.0 D-4D 4WD | 02.2005 - 08.2006 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Hilux VIII pick-up (_N1_) | 3.0 D-4D 4WD | 08.2015 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Land Cruiser (_J7_, _JL7_) | 3.0 TD | 05.1993 - 05.1996 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Land Cruiser 90 (_J9_) | 3.0 D-4D | 08.2000 - 08.2002 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Land Cruiser 90 (_J9_) | 3.0 TD | 04.1995 - 02.2003 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Land Cruiser Prado (_J12_) | 3.0 D-4D | 09.2002 - 12.2010 | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Land Cruiser Prado (_J12_) | 3.0 TD | 09.2002 - 07.2009 | 1KZ-TE | 4 | 4B1850H | 2982 cc | SOHC 8V | -STD | 96.0 | 103.0 |
| Toyota | Land Cruiser Prado (_J15_) | 3.0 D-4D | 08.2009 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Land Cruiser VAN (_J15_) | 3.0 D-4D 4WD | 01.2011 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Regius Ace Autobus (TRH2_, KDH2_) | 3.0 D-4D | 08.2004 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Regius Ace Autobus (TRH2_, KDH2_) | 3.0 D-4D 4WD | 08.2004 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Regius Ace Autobus (TRH2_, KDH2_) | 2.5 D-4D | 08.2004 - | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Regius Ace Furgon (TRH2_, KDH2_) | 3.0 D-4D | 08.2004 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Regius Ace Furgon (TRH2_, KDH2_) | 3.0 D-4D 4WD | 08.2004 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Regius Ace Furgon (TRH2_, KDH2_) | 2.5 D-4D | 08.2004 - | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
| Toyota | Toyoace Platform / Chassis (_Y2_, _U_) | 3.0 D-4D | 09.2007 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Toyoace Platform / Chassis (_Y2_, _U_) | 3.0 D-4D 4WD | 09.2007 - | 1KD-FTV | 4 | 4B1850H | 2982 cc | DOHC 16V | -STD | 96.0 | 103.0 |
| Toyota | Toyoace Platform / Chassis (_Y2_, _U_) | 2.5 D-4D | 08.2004 - 09.2007 | 2KD-FTV | 4 | 4B1850H | 2494 cc | DOHC 16V | -STD | 92.0 | 93.8 |
