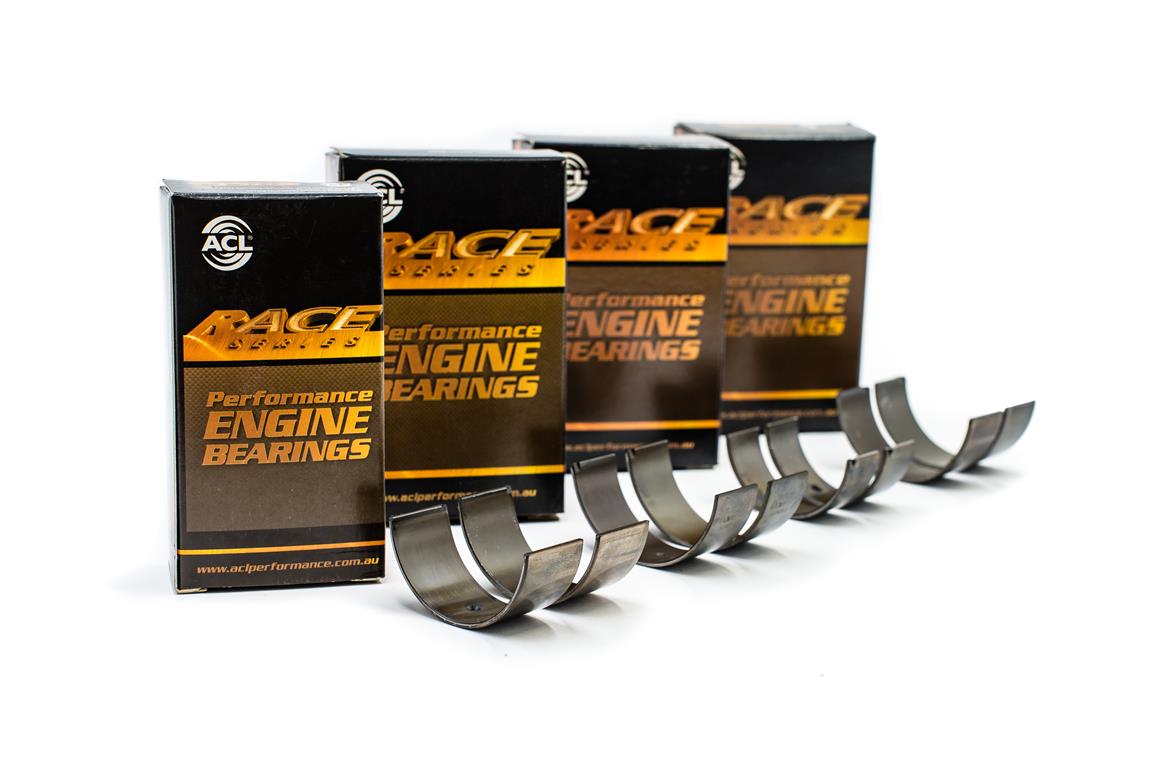

ACL
4B1490H-.25
4B1490H-.25
Prezzo di listino
€70,03 EUR
Prezzo di listino
Prezzo scontato
€70,03 EUR
Quantità
Impossibile caricare la disponibilità di ritiro
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 48.000 / 48.016 |
| Shaft [mm] | 44.975 / 44.991 |
| Max. Wall | 1.49 |
| Max. Length | 18 |
| Half type | Identical halves |
| Compatibility | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| BMW | 316i | SOHC 8v | M40B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 316i | SOHC 8v | M43B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 (E30) | 316 i | M40B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 (E30) | 316 i | M40B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 (E30) | 318 is | M42B18 | 4 | 4B1490H | 1796 cc | DOHC v16 | -.25 | 84.0 | 81.0 |
| BMW | 3 (E36) | 316 i | M40B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 (E36) | 316 i | M43B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 (E36) | 318 i | M42B18 | 4 | 4B1490H | 1796 cc | DOHC v16 | -.25 | 84.0 | 81.0 |
| BMW | 3 (E36) | 318 is | M42B18 | 4 | 4B1490H | 1796 cc | DOHC v16 | -.25 | 84.0 | 81.0 |
| BMW | 3 (E36) | 318 is | M44B19 | 4 | 4B1490H | 1895 cc | DOHC v16 | -.25 | 85.0 | 83.5 |
| BMW | 3 (E46) | 316 i | M43B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 (E46) | 318 i | M43B19 | 4 | 4B1490H | 1895 cc | SOHC/OHC v8 | -.25 | 85.0 | 83.5 |
| BMW | 3 (E46) | 316 i | M43B19 | 4 | 4B1490H | 1895 cc | SOHC/OHC v8 | -.25 | 85.0 | 83.5 |
| BMW | 3 Compact (E36) | 316 i | M43B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 Compact (E36) | 316 g | M43B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 Compact (E36) | 318 ti | M42B18 | 4 | 4B1490H | 1796 cc | DOHC v16 | -.25 | 84.0 | 81.0 |
| BMW | 3 Compact (E36) | 318 ti | M44B19 | 4 | 4B1490H | 1895 cc | DOHC v16 | -.25 | 85.0 | 83.5 |
| BMW | 3 Compact (E36) | 316 i | M43B19 | 4 | 4B1490H | 1895 cc | SOHC/OHC v8 | -.25 | 85.0 | 83.5 |
| BMW | 3 coupe (E36) | 316 i | M43B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 coupe (E36) | 318 is | M42B18 | 4 | 4B1490H | 1796 cc | DOHC v16 | -.25 | 84.0 | 81.0 |
| BMW | 3 coupe (E36) | 318 is | M44B19 | 4 | 4B1490H | 1895 cc | DOHC v16 | -.25 | 85.0 | 83.5 |
| BMW | 3 coupe (E46) | 316 Ci | M43B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 coupe (E46) | 318 Ci | M43B19 | 4 | 4B1490H | 1895 cc | SOHC/OHC v8 | -.25 | 85.0 | 83.5 |
| BMW | 3 Convertible (E30) | 316 i Baur TC | M40B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 Convertible (E30) | 318 i | M42B18 | 4 | 4B1490H | 1796 cc | DOHC v16 | -.25 | 84.0 | 81.0 |
| BMW | 3 Touring (E30) | 316 i | M40B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 Touring (E36) | 316 i | M43B16 | 4 | 4B1490H | 1596 cc | SOHC/OHC v8 | -.25 | 84.0 | 72.0 |
| BMW | 3 Touring (E46) | 318 i | M43B19 | 4 | 4B1490H | 1895 cc | SOHC/OHC v8 | -.25 | 85.0 | 83.5 |
| BMW | Z3 Roadster (E36) | 1.9 i | M44B19 | 4 | 4B1490H | 1895 cc | DOHC v16 | -.25 | 85.0 | 83.5 |
| BMW | Z3 Roadster (E36) | 1.9 i | M43B19 | 4 | 4B1490H | 1895 cc | SOHC/OHC v8 | -.25 | 85.0 | 83.5 |
| BMW | Z3 Roadster (E36) | 1.9 i | M43B19 | 4 | 4B1490H | 1895 cc | SOHC/OHC v8 | -.25 | 85.0 | 83.5 |
| BMW | 318i | SOHC 8v | M40B18 | 4 | 4B1490H | 1796 cc | SOHC/OHC v8 | -.25 | 84.0 | 81.0 |
| BMW | 318i | DOHC 16v | M42B18 | 4 | 4B1490H | 1796 cc | DOHC v16 | -.25 | 84.0 | 81.0 |
| BMW | 318i | SOHC 8v | M43B18 | 4 | 4B1490H | 1796 cc | SOHC/OHC v8 | -.25 | 84.0 | 81.0 |
| BMW | 316i, 318i, Z3 | SOHC 8v | M43B19 | 4 | 4B1490H | 1895 cc | SOHC/OHC v8 | -.25 | 85.0 | 83.5 |
| BMW | 316i, 318i, Z3 | DOHC 16v | M44B19 | 4 | 4B1490H | 1895 cc | DOHC v16 | -.25 | 85.0 | 83.5 |
