280074

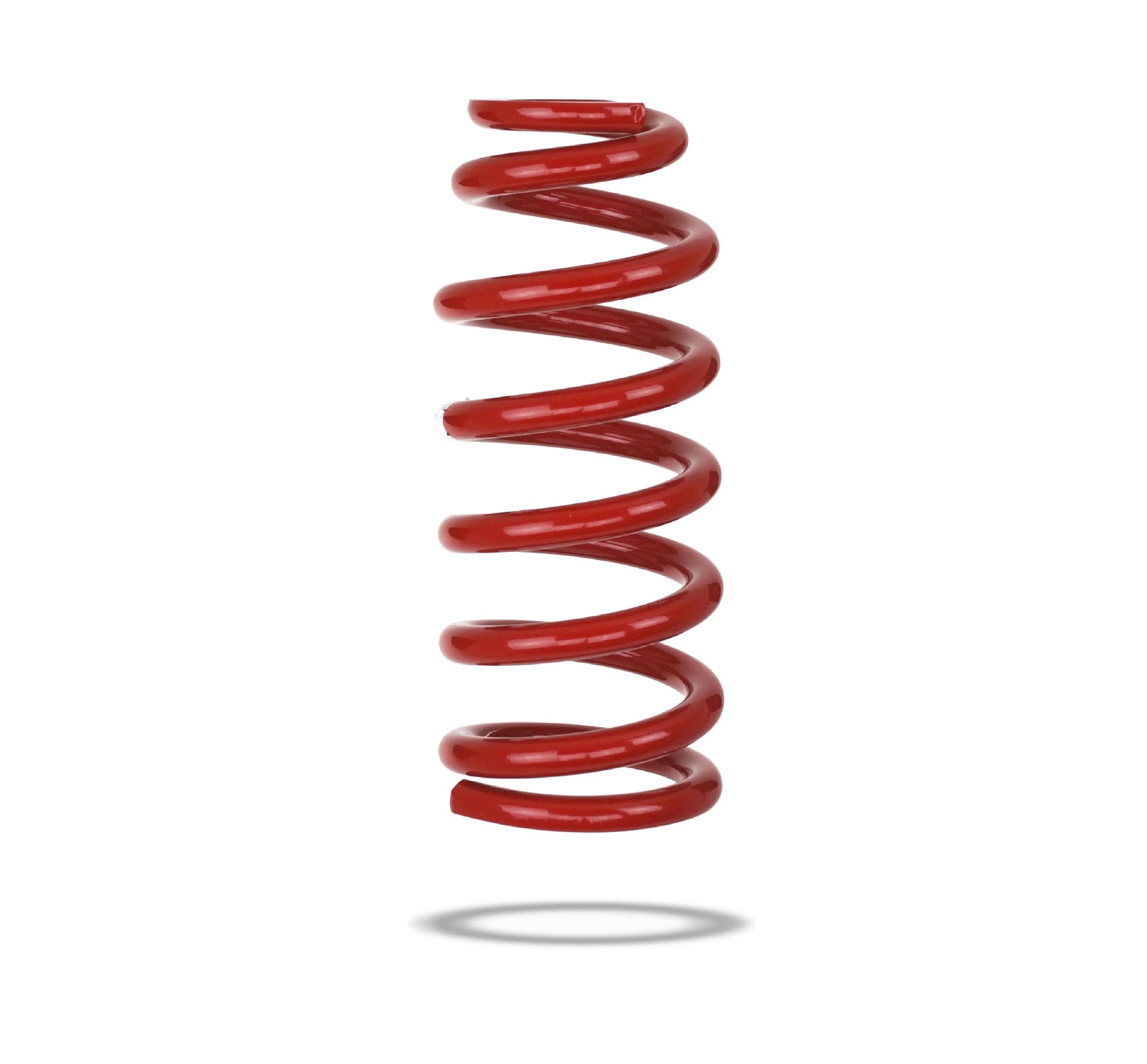

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Spring rate [kgf/mm]	13,19
Load at Nominal Ride Height [kgs]	890
Height at Nominal Ride Height [mm]	248
Spring Rate [lbf/in]	737
Inner Diameter [mm]	65.4
Length [mm]	314
Shape - Inner Diameter (Bottom)	Eye
Free Height [mm]	314

Compatibility
Mitsubishi	L200	2WD, ML (Coil over Frt)	2WD, ML (Coil over Frt) | 2006-2009	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 800mm with 17 inch wheels. Suits ONLY Pedders shocks 154306. ONE spring
Mitsubishi	L200	2WD, MN	2WD, MN | 2008-2015	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 800mm with 17 inch wheels. Suits ONLY Pedders shocks 154306. ONE spring
Mitsubishi	L200	2WD, MQ	2WD, MQ | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 800mm with 17 inch wheels. Suits ONLY Pedders shocks 154306. ONE spring
Mitsubishi	L200	4WD, ML (Coil over Frt)	4WD, ML (Coil over Frt) | 2006-2009	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 800mm with 17 inch wheels. Suits ONLY Pedders shocks 154306. ONE spring
Mitsubishi	L200	4WD, MN	4WD, MN | 2009-2015	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 800mm with 17 inch wheels. Suits ONLY Pedders shocks 154306. ONE spring
Mitsubishi	L200	4WD, MQ	4WD, MQ | 2015-2018	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 800mm with 17 inch wheels. Suits ONLY Pedders shocks 154306. ONE spring
Mitsubishi	L200	4WD, MR	4WD, MR | 2018-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 800mm with 17 inch wheels. Suits ONLY Pedders shocks 154306. ONE spring
Mitsubishi	Pajero Sport	QE, 2.4lt 4cyl TD	QE, 2.4lt 4cyl TD | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Ride Height 805mm With 18"" Wheels. These coils are only be fitted with Trakryder foam cell part number 154306
Mitsubishi	Shogun Sport	PB	PB | 2009-2013	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 790mm. Can only be fitted to with Pedders shock 154306. ONE shock
