280073R

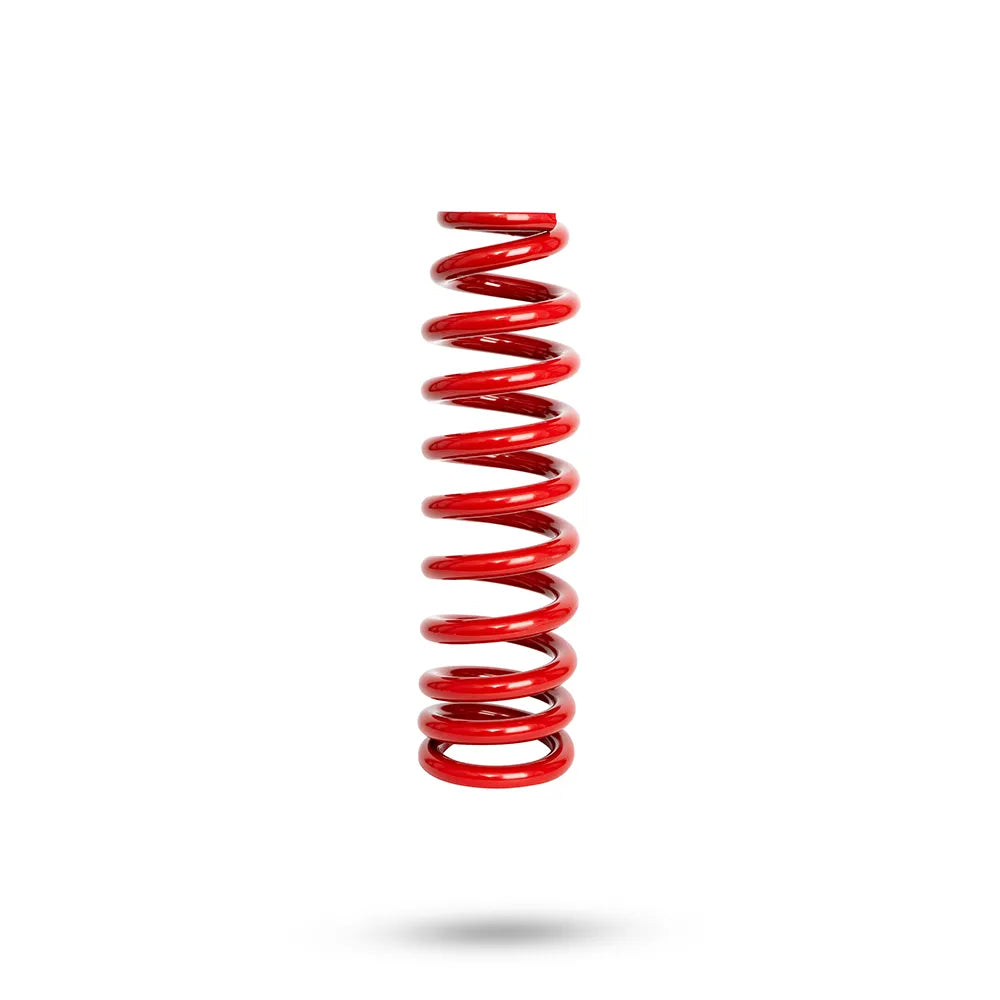

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Spring rate [kgf/mm]	12,24
Load at Nominal Ride Height [kgs]	999
Height at Nominal Ride Height [mm]	350
Spring Rate [lbf/in]	683.82
Shape - Inner Diameter (Bottom)	Eye
Free Height [mm]	440

Compatibility
Toyota	Landcruiser	200 Series, UZJ200R With KDSS	200 Series, UZJ200R With KDSS | 2007-2012	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised spring. Ride height 790mm with 17 inch wheels. For use ONLY with Pedders shock 154313. ONE spring. FRONT
Toyota	Landcruiser	200 Series, UZJ200R Without KDSS	200 Series, UZJ200R Without KDSS | 2007-2012	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised spring. Ride height 790mm with 17 inch wheels. For use ONLY with Pedders shock 154313. ONE spring. FRONT
Toyota	Landcruiser	200 Series, VDJ200R With KDSS	200 Series, VDJ200R With KDSS | 2007-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised spring. Ride height 790mm with 17 inch wheels. For use ONLY with Pedders shock 154313. ONE spring. FRONT
Toyota	Landcruiser	200 Series, VDJ200R Without KDSS	200 Series, VDJ200R Without KDSS | 2007-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised spring. Ride height 790mm with 17 inch wheels. For use ONLY with Pedders shock 154313. ONE spring. FRONT
Toyota	Landcruiser	200 Series, Armoured Vehicles	200 Series, Armoured Vehicles | 2007-Onward	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Trakryder Coil Spring	Suitable as standard height on B6 level armoured vehicles. For use ONLY with Pedders shock 134313. ONE spring. FRONT
Toyota	Landcruiser	200 Series, URJ202R With KDSS	200 Series, URJ202R With KDSS | 2012-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised spring. Ride height 790mm with 17 inch wheels. For use ONLY with Pedders shock 154313. ONE spring. FRONT
Toyota	Landcruiser	200 Series, URJ202R Without KDSS	200 Series, URJ202R Without KDSS | 2012-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised spring. Ride height 790mm with 17 inch wheels. For use ONLY with Pedders shock 154313. ONE spring. FRONT
