2318R

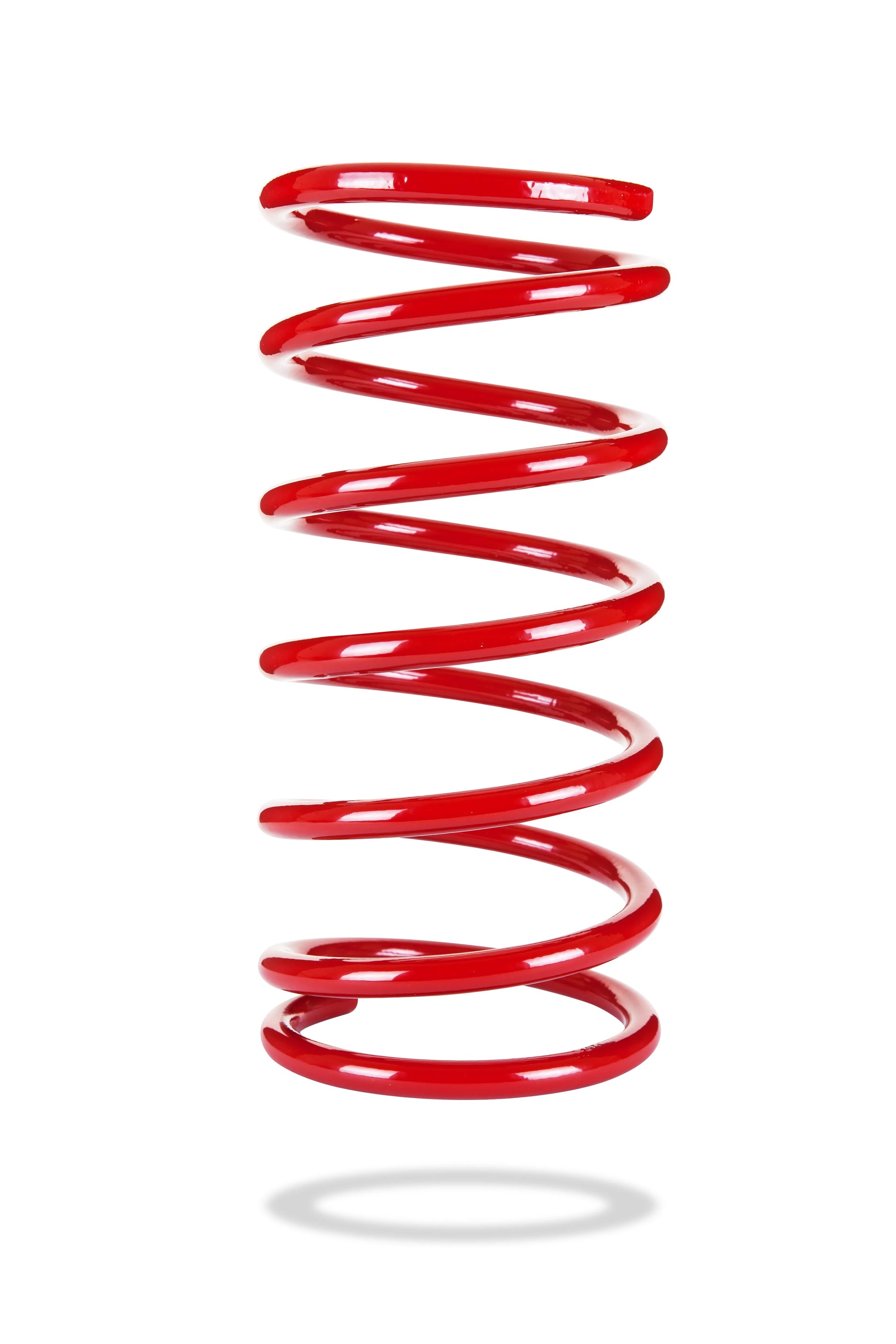

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Spring rate [kgf/mm]	2,72
Load at Nominal Ride Height [kgs]	352
Height at Nominal Ride Height [mm]	150
Spring Rate [lbf/in]	151.8
Free Height [mm]	292

Compatibility
BMW	5 Series	518i, E34 Sedan	518i, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
BMW	5 Series	520i, E34 Sedan	520i, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
BMW	5 Series	524Td, E34 Sedan	524Td, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
BMW	5 Series	525i, E34 Sedan	525i, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
BMW	5 Series	525Td, E34 Sedan	525Td, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
BMW	5 Series	525Tds, E34 Sedan	525Tds, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Sportsryder Coil Spring
BMW	5 Series	530i, E34 Sedan	530i, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
BMW	5 Series	535i, E34 Sedan	535i, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
BMW	5 Series	540i, E34 Sedan	540i, E34 Sedan | 1988-1995	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Corsair	UA, Hatch	UA, Hatch | 1989-1992	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Corsair	UA, Sedan	UA, Sedan | 1989-1992	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Nissan	Pintara	U12, Hatch	U12, Hatch | 1989-1992	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Nissan	Pintara	U12, Sedan	U12, Sedan | 1989-1992	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
