220136

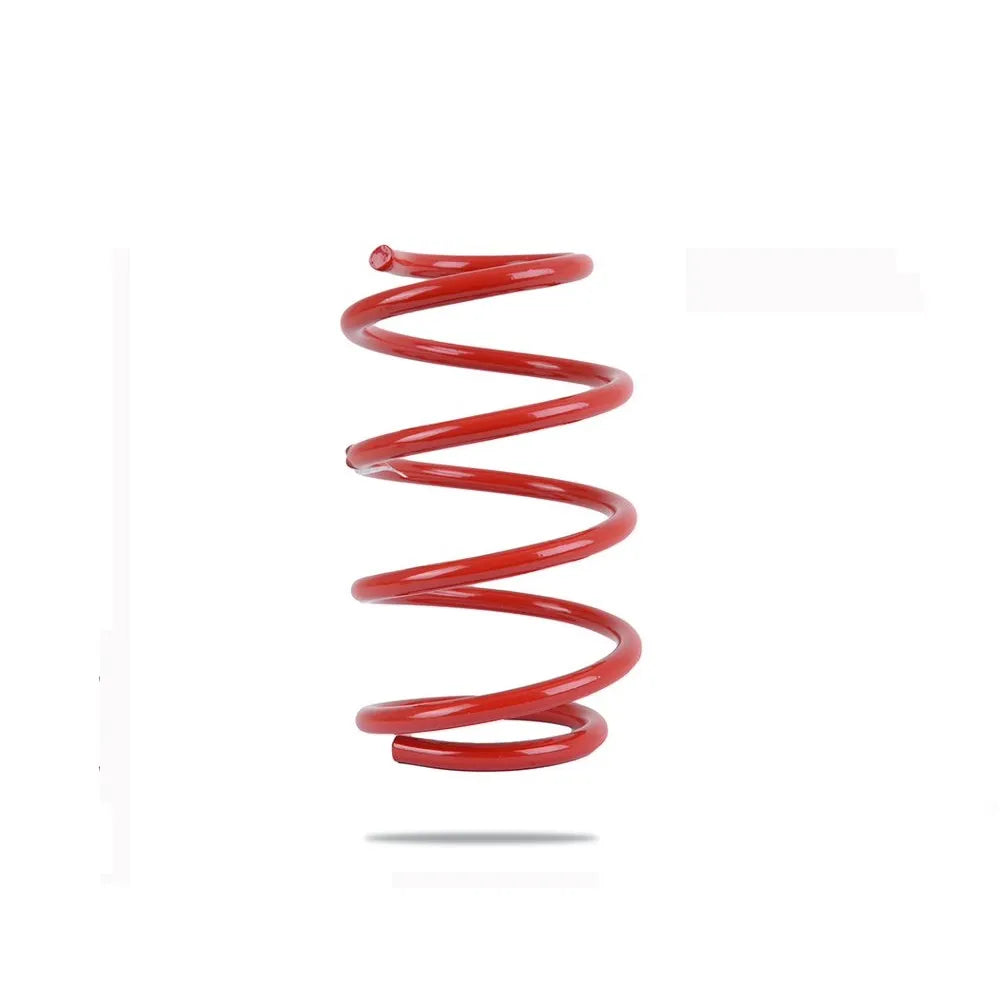

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Spring rate [kgf/mm]	3,27
Load at Nominal Ride Height [kgs]	395
Height at Nominal Ride Height [mm]	150
Spring Rate [lbf/in]	182.6
Shape - Inner Diameter (Top)	Eye
Shape - Inner Diameter (Bottom)	Eye 1/2
Free Height [mm]	270

Compatibility
Ford	Mustang	FN Convertible, 2.3lt 4cyl TULP	FN Convertible, 2.3lt 4cyl TULP | 2018-2023	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Mustang	FN Convertible, 5.0lt 8cyl ULP	FN Convertible, 5.0lt 8cyl ULP | 2018-2023	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Mustang	FN Coupe, 2.3lt 4cyl TULP	FN Coupe, 2.3lt 4cyl TULP | 2018-2023	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Mustang	FM Convertible, 2.3lt 4cyl TULP	FM Convertible, 2.3lt 4cyl TULP | 2015-2018	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Mustang	FM Convertible, 5.0lt 8cyl ULP	FM Convertible, 5.0lt 8cyl ULP | 2015-2018	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Mustang	FM Coupe, 2.3lt 4cyl TULP	FM Coupe, 2.3lt 4cyl TULP | 2015-2018	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Mustang	FM Coupe, 5.0lt 8cyl ULP	FM Coupe, 5.0lt 8cyl ULP | 2015-2018	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
Ford	Mustang	FN Coupe, 5.0lt 8cyl ULP	FN Coupe, 5.0lt 8cyl ULP | 2018-2023	SPRINGS AND SHOCKS	Front Spring Low	Pedders Sportsryder Coil Spring
