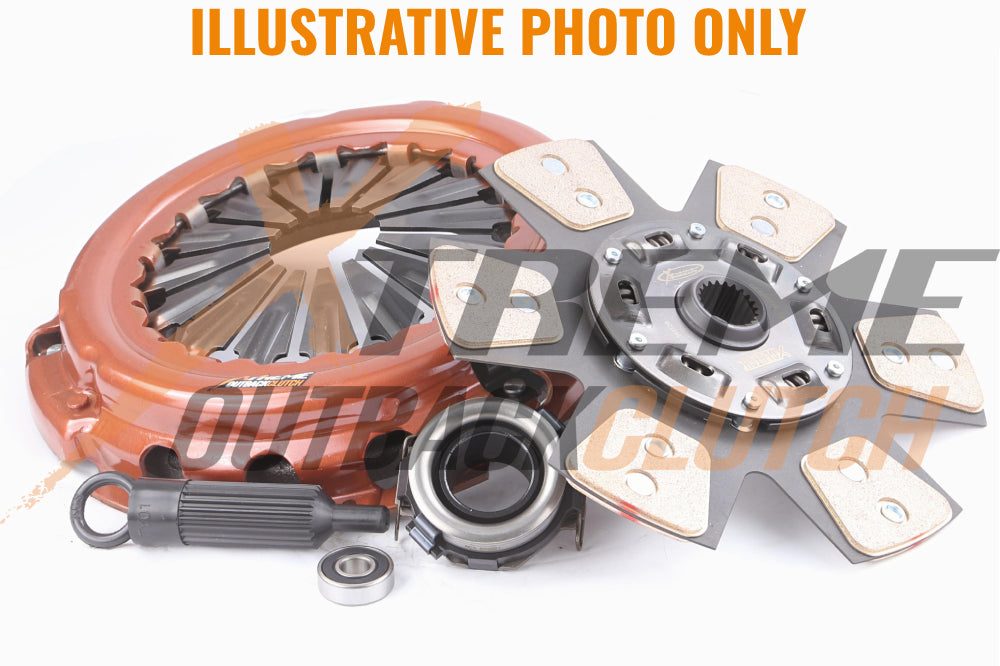

KTY24002-1B

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 560Nm
• Clamp load 700Kg 40% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	550
Clamp Load	700KG (40% inc.)
Flywheel Step	+0.5mm
Clutch Disc Diameter (mm)	235
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29,8
Recommended for	High Speed 4x4 Trial or Desert Race - Stage 2
Design	Single Plate
Diameter [mm]	235
Stage	Stage 2

Compatibility
Daihatsu	Delta	2.0 (YB21, V68)	1985.04-1999.09	3Y 1998 Petrol 65 kW 88 BHP (1985.04 - 1999.09)
Daihatsu	Rocky	2.0 (F70, F75, F80, F85)	1985.02-1993.04	3Y 1998 Petrol 65 kW 88 BHP (1985.02 - 1993.04)
Daihatsu	Rocky	2.0 4x4	1986.02-1988.12	3Y 1998 Petrol 67 kW 91 BHP (1986.02 - 1988.12)
Daihatsu	Rocky	2.0 4x4 (F70, F75, F80, F85)	1985.02-1993.04	3Y 1998 Petrol 65 kW 88 BHP (1985.02 - 1993.04)
Daihatsu	Rugger	2.0 4x4	1984.04-1988.10	3Y 1998 Petrol 65 kW 88 BHP (1984.04 - 1988.10)
Daihatsu	Taft	2.0 4x4	1984.04-1993.04	3Y 1998 Petrol 65 kW 88 BHP (1984.04 - 1993.04)
Toyota	Soarer	2.8 (MZ11)	1980.09-1985.08	5M-GEU 2759 Petrol 125 kW 170 BHP (1980.09 - 1985.08)
Toyota	Soarer	2.0 Turbo (MZ10)	1981.07-1985.09	M-TEU 1988 Petrol 108 kW 147 BHP (1981.07 - 1985.09)
Toyota	Hilux	Gen. IV | 2.2 4WD (YN67)	1985.11-1989.12	4Y 2237 Petrol 69 kW 94 BHP (1985.11 - 1989.12)
Toyota	Hilux	Gen. IV | 2.0 4WD (YN65_. YN61_. YN60_)	1985.01-1988.12	3Y-C, 3Y 1998 Petrol 65 kW 88 BHP (1985.01 - 1988.12)
Toyota	Hilux	Gen. IV | 2.0 (YN57. YN60)	1983.08-1988.07	3Y 1998 Petrol 65 kW 88 BHP (1983.08 - 1988.07)
Toyota	Hiace	Gen. III | 2.2 (YH56. YH66. YH53. YH63)	1987.09-1989.08	4Y 2237 Petrol 69 kW 94 BHP (1987.09 - 1989.08)
Toyota	Hiace	Gen. III | 2.0 (YH51. YH61)	1982.12-1989.08	3Y 1998 Petrol 65 kW 88 BHP (1982.12 - 1989.08)
Toyota	Hiace	Gen. III | 2.2 (YH56. YH66. YH73)	1986.08-1989.08	4Y 2237 Petrol 69 kW 94 BHP (1986.08 - 1989.08)
Toyota	Dyna	2.0 (YU60_)	1984.09-1987.08	3Y 1998 Petrol 79 kW 107 BHP (1984.09 - 1987.08)
Toyota	Dyna	2.0 (RU20_. RU25_. RU30_)	1977.08-1984.08	5R 1994 Petrol 72 kW 98 BHP (1977.08 - 1984.08)
Toyota	Coaster	2.4 (RB20)	1982.05-1989.09	22R 2367 Petrol 72 kW 98 BHP (1982.05 - 1989.09)
Toyota	Celica	2.8 Supra (MA61)	1981.12-1985.12	5M-GE 2759 Petrol 103 kW 140 BHP (1981.12 - 1985.12)
Toyota	Celica	2.8 Supra (MA61)	1981.08-1985.12	5M-GE 2759 Petrol 125 kW 170 BHP (1981.08 - 1985.12)
Toyota	4 Runner	Gen. I | 2.0 (YN60)	1984.07-1985.12	3Y-C 1998 Petrol 65 kW 88 BHP (1984.07 - 1985.12)
