1 1

ACS

KTY18628-2E

KTY18628-2E

€3.132,44 EUR
€3.132,44 EUR
Sale Sold out

-2E

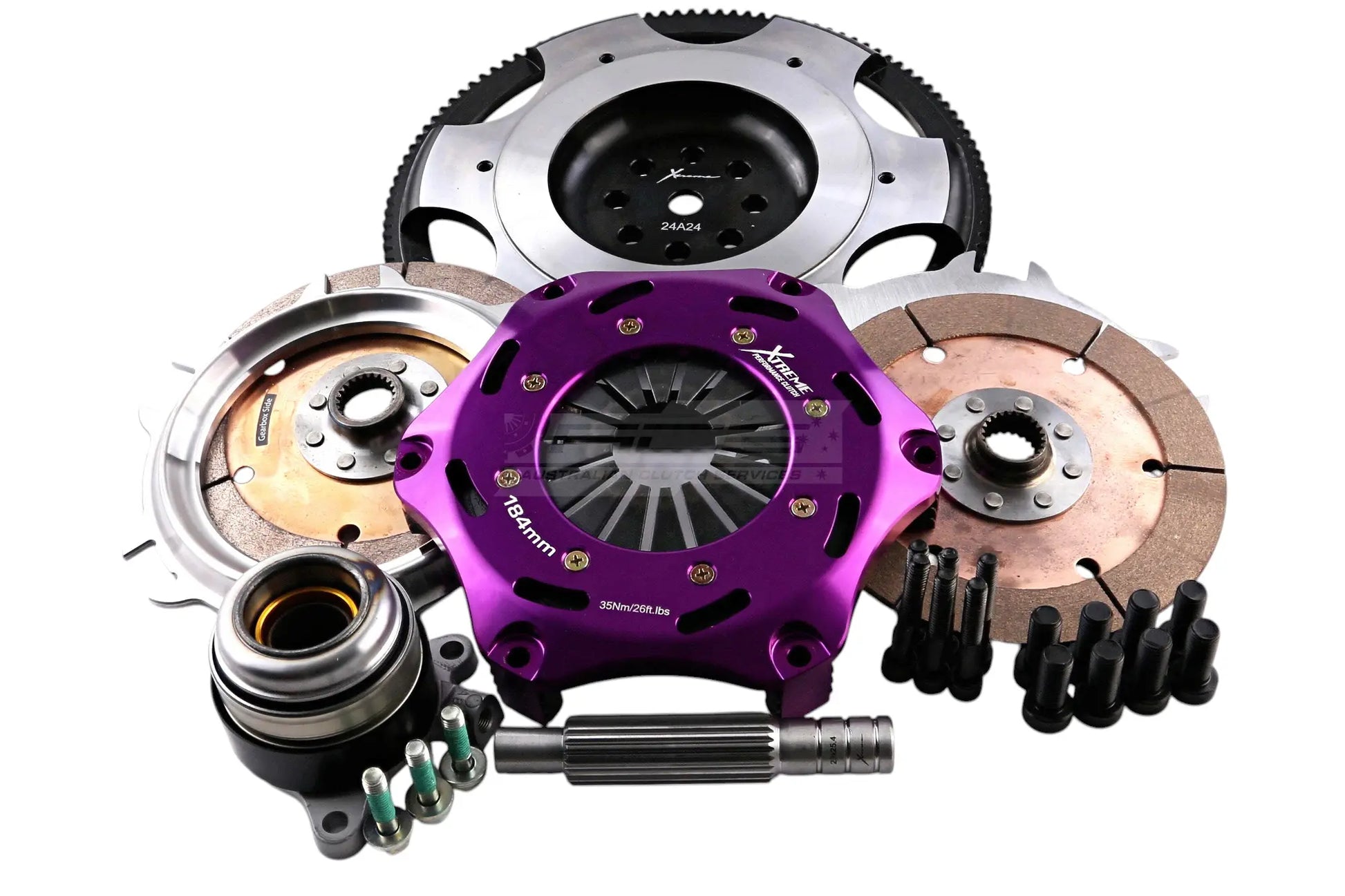

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
  Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 4.45kg 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250") 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235") 5.97mm (0.235")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Torque (Nm) 1220
Flywheel Step +2.5
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26
Design Twin Plate
Compatibility
Toyota Yaris 1.6 GR 4WD (GXPA16) 2020.02- G16E-GTS 1618 Petrol 192 kW 261 BHP (2020.02 -) 1220 Motorsport Single Mass Flywheel
Toyota Yaris 1.6 GR 4WD (GXPA16) 2020.02- G16E-GTS 1618 Petrol 200 kW 272 BHP (2020.02 -) 1220 Motorsport Single Mass Flywheel
Toyota Corolla 1.6 GR 4WD (GZEA14) 2023.01- G16E-GTS 1618 Petrol 224 kW 305 BHP (2023.01 -) 1220 Motorsport Single Mass Flywheel
View full details
