ACS
KTY18523-2E
KTY18523-2E
Regular price
€1.939,92 EUR
Regular price
Sale price
€1.939,92 EUR
Quantity
Couldn't load pickup availability

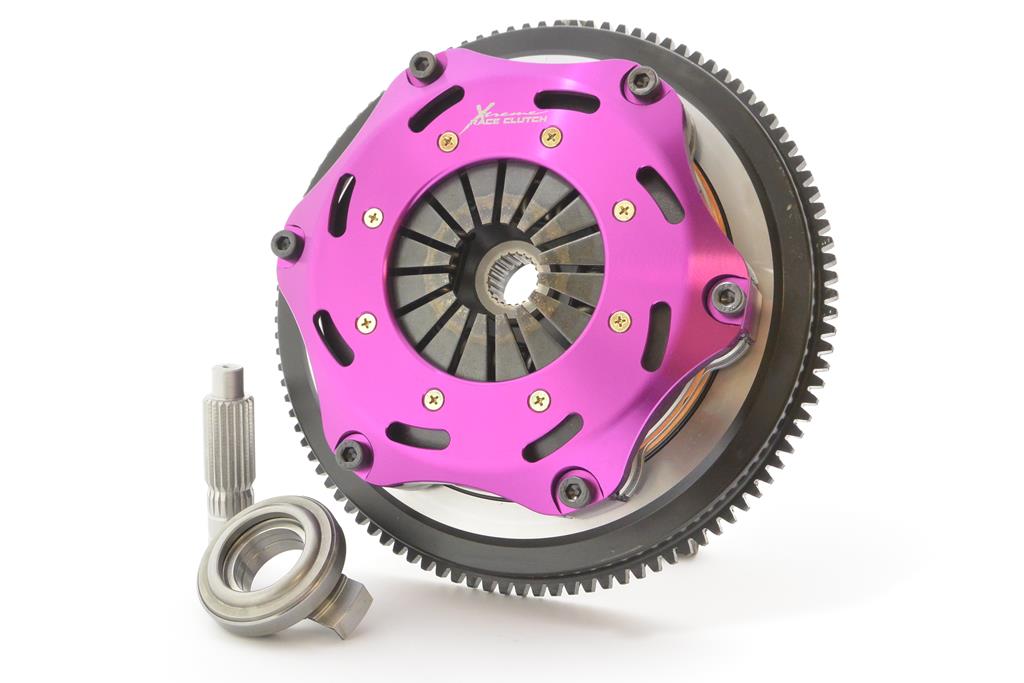

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
| Clutch Disc Diameter (mm) | 184 |
| Clutch Disc Spline Count | 21 |
| Clutch Disc Spline Diameter (mm) | 23.8 |
| Torque (Nm) | 1060 |
| Flywheel Step | +2.5mm |
| Design | Twin Plate |
| Stage | Multiplate - track use only |
| Tech Bulletins | |
| Clamp Load | 900Kg |
| Recommended for | Motorsport |
| Ring Gear Tooth count | |
| Additional infotmation |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| Toyota | Carina | T15 | 1.6 (AT151_) | 1983.10-1987.11 | 4A-LC 1587 Petrol 55 kW 75 BHP (1983.10 - 1987.11) | 1220 | Motorsport | Single Mass Flywheel |
| Toyota | Corolla | E8 | 1.6 (AE82) | 1983.06-1987.08 | 4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08) | 1220 | Motorsport | Single Mass Flywheel |
| Toyota | Corolla | E9 | 1.3 (EE90) | 1987.08-1992.04 | 2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04) | 1220 | Motorsport | Single Mass Flywheel |
| Toyota | MR2 | Gen. I | 1.6 16V (AW11) | 1984.11-1989.12 | 4A-GELC 1587 Petrol 80 kW 109 BHP (1984.11 - 1989.12) | 1220 | Motorsport | Single Mass Flywheel |
| Toyota | MR2 | Gen. I | 1.6 16V (AW11) | 1984.06-1989.11 | 4A-GEL 1587 Petrol 96 kW 131 BHP (1984.06 - 1989.11) | 1220 | Motorsport | Single Mass Flywheel |
| Toyota | MR2 | Gen. I | 1.6 16V (AW11) | 1984.11-1990.06 | 4A-GELC 1587 Petrol 85 kW 116 BHP (1984.11 - 1990.06) | 1220 | Motorsport | Single Mass Flywheel |
