KNI24001-1BX

Recommended for: Motorsport Applications

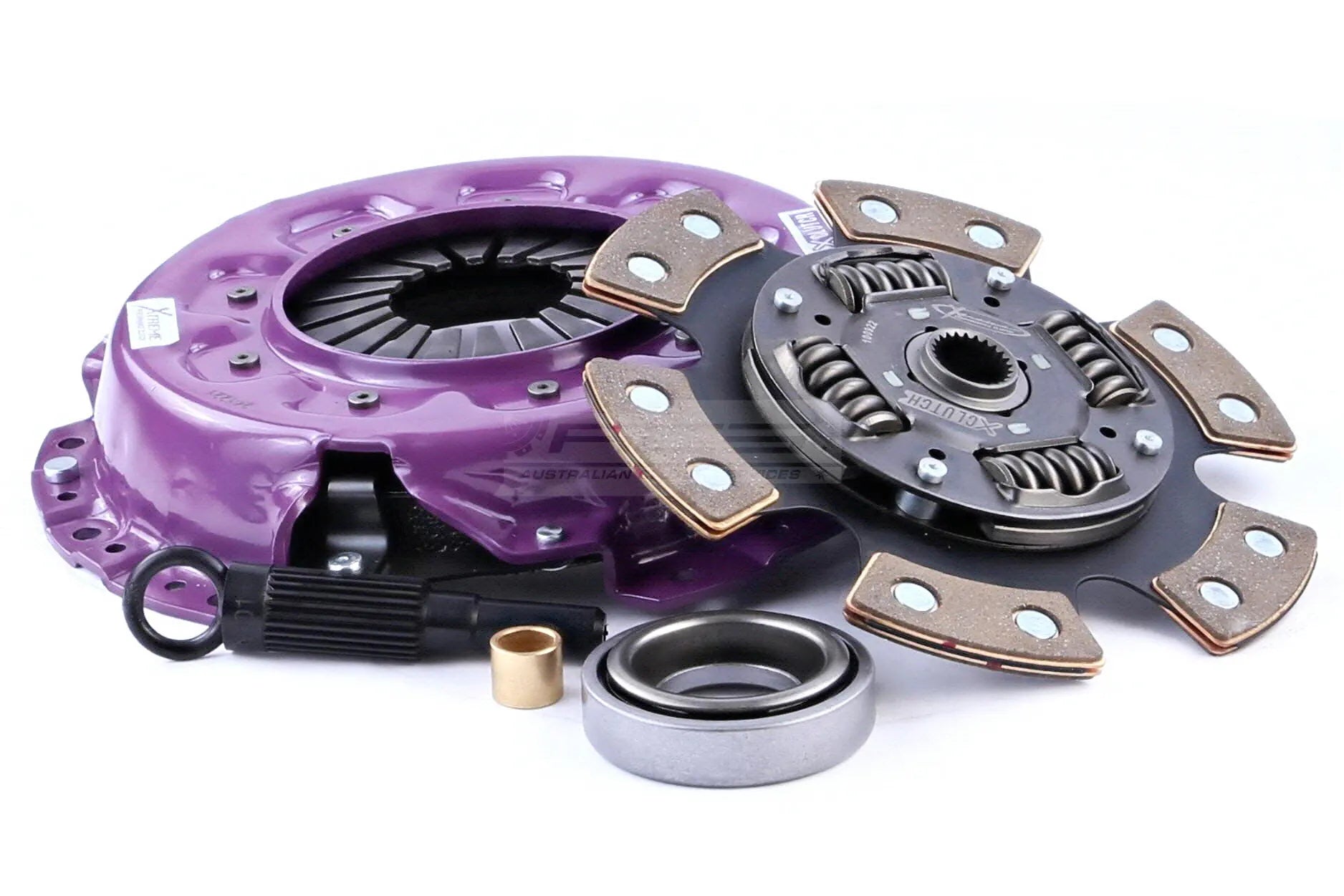

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 750Nm
• Clamp load 1050kg 60% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.5
Torque (Nm)	750
Flywheel Step	0
Design	Single Plate
Stage
Tech Bulletins
Clamp Load	1050kg (60% inc)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Holden	Calais	VL | 3.0 EFi	1986.03-1988.09	RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)	750	Track Use	Not included
Holden	Commodore	VL | 3.0 EFi	1986.03-1988.09	RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)	750	Track Use	Not included
Nissan	Skyline	R31 | 3.0	1985.08-1989.03	RB30S 2962 Petrol 105 kW 143 BHP (1985.08 - 1989.03)	750	Track Use	Not included
Nissan	Skyline	R31 | 3.0	1986.07-1990.12	RB30E 2962 Petrol 117 kW 159 BHP (1986.07 - 1990.12)	750	Track Use	Not included
Nissan	Skyline	R32 | 2.0 Turbo	1990.01-1993.01	RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)	750	Track Use	Not included
Nissan	Skyline	R32 | 2.0 Turbo	1989.03-1993.06	RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)	750	Track Use	Not included
Nissan	Skyline	R32 | 2.0 Turbo 4x4	1989.03-1993.06	RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)	750	Track Use	Not included
Nissan	Skyline	R32 | 2.5	1989.03-1993.06	RB25DE 2498 Petrol 132 kW 179 BHP (1989.03 - 1993.06)	750	Track Use	Not included
Nissan	Skyline	R33 | 2.5 4x4	1993.07-1998.05	RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)	750	Track Use	Not included
Nissan	Skyline	R33 | 2.5	1993.07-1998.05	RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)	750	Track Use	Not included
Nissan	Skyline	R34 | 2.5 4x4	1998.06-2000.07	RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)	750	Track Use	Not included
Nissan	Skyline	R32 | 2.0 Turbo 4x4	1990.01-1993.01	RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)	750	Track Use	Not included
Nissan	Skyline	R32 | 2.0 Turbo	1990.01-1993.01	RB20DET 1998 Petrol 153 kW 208 BHP (1990.01 - 1993.01)	750	Track Use	Not included
