Xtreme Motorsport 200mm twin plate

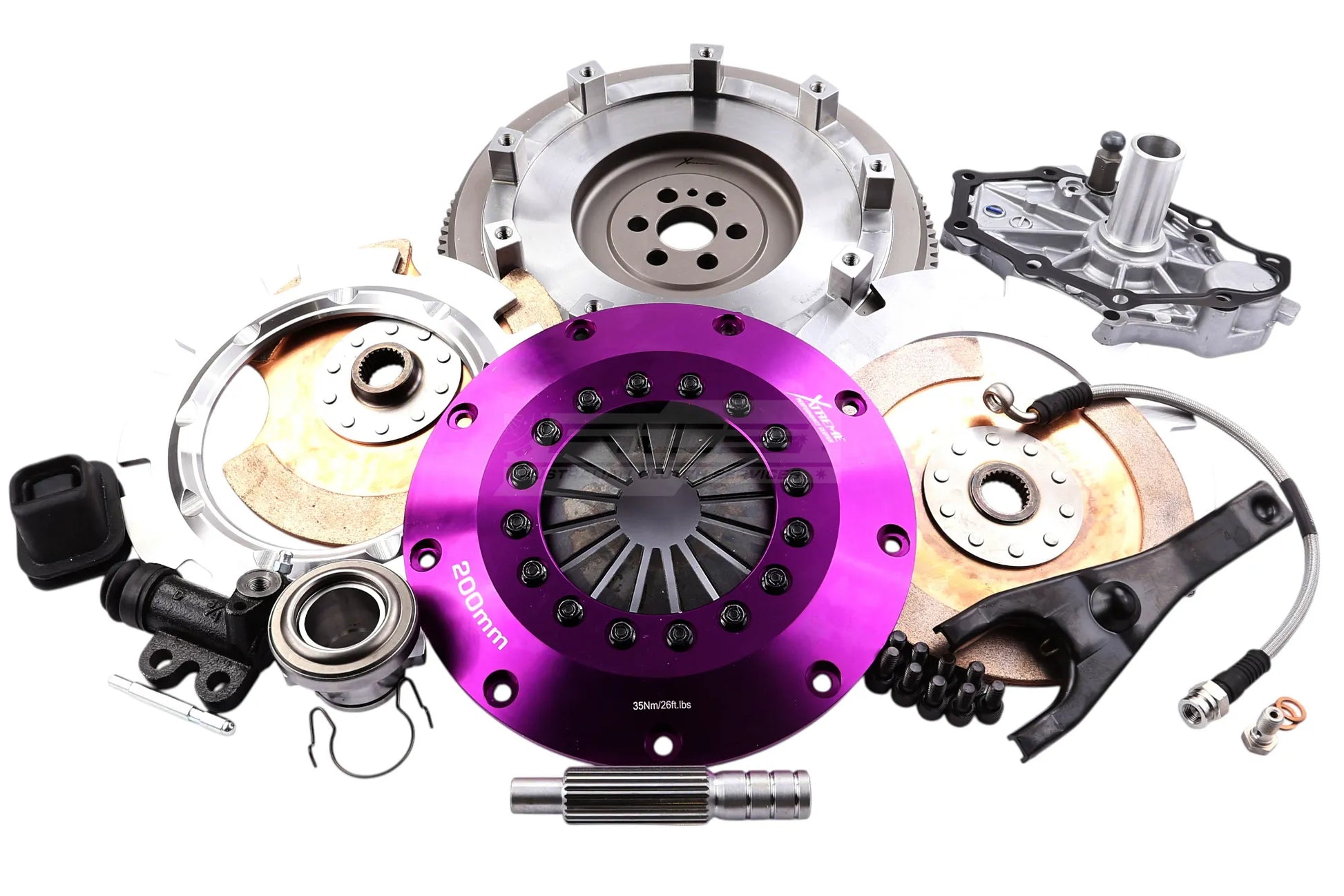

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 24 |
| Clutch Disc Spline Diameter (mm) | 25.4 |
| Torque (Nm) | 1200 |
| Flywheel Step | +2.2mm |
| Design | Twin Plate |
| Stage | Multiplate - track use only |
| Tech Bulletins | |
| Clamp Load | |
| Recommended for | Motorsport |
| Ring Gear Tooth count | |
| Additional infotmation |
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nissan | Stagea | WC34 | 2.5 | 1996.09-2001.10 | RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Stagea | WC34 | 2.5 AWD | 1996.09-2001.10 | RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R34 | 2.5 4x4 | 1998.06-2000.07 | RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Stagea | WC34 | 2.5 Turbo AWD | 1996.09-2001.10 | RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R34 | 2.5 Turbo | 1998.06-2006.01 | RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R34 | 2.5 Turbo | 1998.05-2002.08 | RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R34 | 2.5 Turbo | 1998.05-2006.01 | RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R32 | 2.6 Twin Turbo 4x4 | 1989.04-1993.06 | RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R33 | 2.6 Twin Turbo 4x4 | 1994.07-1999.09 | RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
| Nissan | Stagea | WC34 | 2.6 Twin Turbo | 1996.09-2001.10 | RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10) | Pull to Push Type conversion | 1200 | Motorsport | Single Mass Flywheel |
