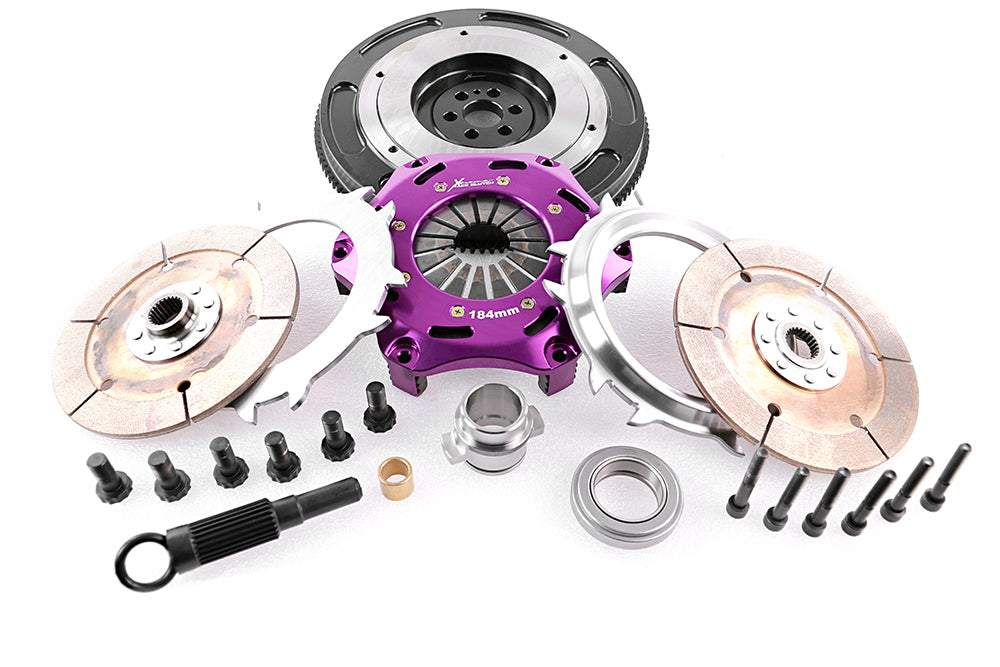

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
| Clutch Disc Diameter (mm) | 184 |
| Clutch Disc Spline Count | 24 |
| Clutch Disc Spline Diameter (mm) | 25.4 |
| Torque (Nm) | 1220 |
| Flywheel Step | +2.5mm |
| Design | Twin Plate |
| Stage | Multiplate - track use only |
| Tech Bulletins | |
| Clamp Load | 900Kg |
| Recommended for | Motorsport |
| Ring Gear Tooth count | |
| Additional infotmation |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| Nissan | Skyline | R32 | 2.0 Turbo | 1990.01-1993.01 | RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R32 | 2.0 Turbo | 1989.03-1993.06 | RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R32 | 2.0 Turbo 4x4 | 1989.03-1993.06 | RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R32 | 2.5 | 1989.03-1993.06 | RB25DE 2498 Petrol 132 kW 179 BHP (1989.03 - 1993.06) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R33 | 2.5 | 1993.07-1998.05 | RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R32 | 2.0 Turbo | 1990.01-1993.01 | RB20DET 1998 Petrol 153 kW 208 BHP (1990.01 - 1993.01) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R32 | 2.0 Turbo 4x4 | 1990.01-1993.01 | RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R32 | 2.6 Twin Turbo 4x4 | 1989.04-1993.06 | RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R33 | 2.5 Turbo | 1994.01-2000.07 | RB25DET 2498 Petrol 184 kW 250 BHP (1994.01 - 2000.07) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R33 | 2.5 4x4 | 1993.07-1998.05 | RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R34 | 2.5 | 1998.06-2000.07 | RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R34 | 2.5 4x4 | 1998.06-2000.07 | RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) | 1220 | Motorsport | Single Mass Flywheel |
| Holden | Calais | VL | 3.0 EFi | 1986.03-1988.09 | RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09) | 1220 | Motorsport | Single Mass Flywheel |
| Holden | Commodore | VL | 3.0 EFi | 1986.03-1988.09 | RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09) | 1220 | Motorsport | Single Mass Flywheel |
| Holden | Calais | VL | 3.0 EFi Turbo | 1986.01-1988.08 | RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08) | 1220 | Motorsport | Single Mass Flywheel |
| Holden | Commodore | VL | 3.0 EFi Turbo | 1986.01-1988.08 | RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R31 | 3.0 | 1986.07-1990.12 | RB30E 2962 Petrol 117 kW 159 BHP (1986.07 - 1990.12) | 1220 | Motorsport | Single Mass Flywheel |
| Nissan | Skyline | R31 | 3.0 | 1985.08-1989.03 | RB30S 2962 Petrol 105 kW 143 BHP (1985.08 - 1989.03) | 1220 | Motorsport | Single Mass Flywheel |
