ACS

KMZ23530-2G

KMZ23530-2G

Regular price €2.081,18 EUR
Regular price Sale price €2.081,18 EUR
Sale Sold out
Quantity

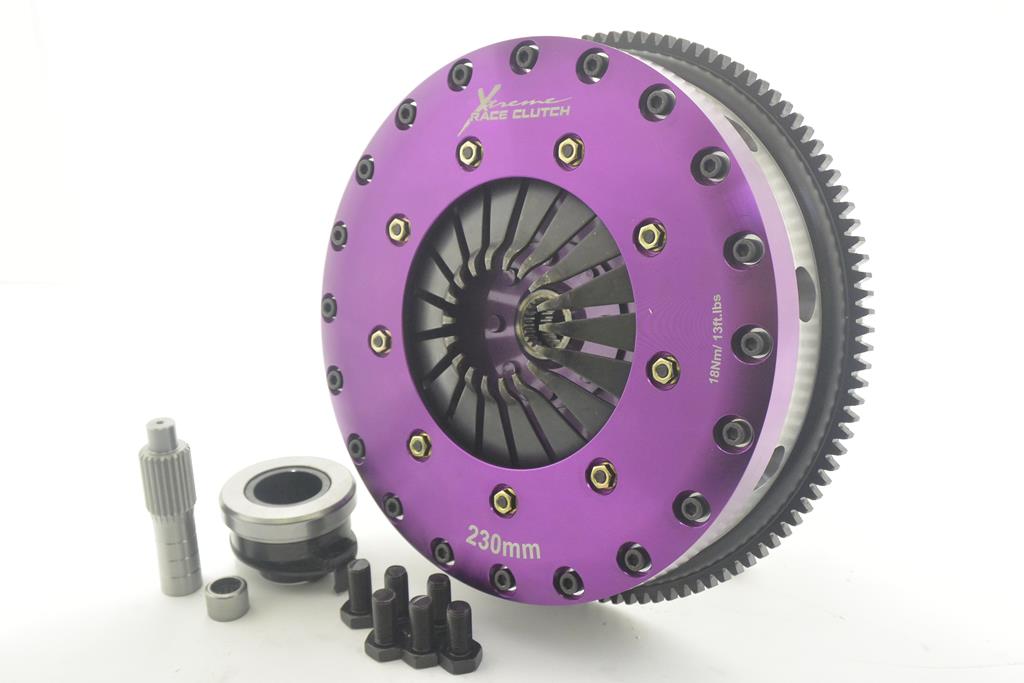

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

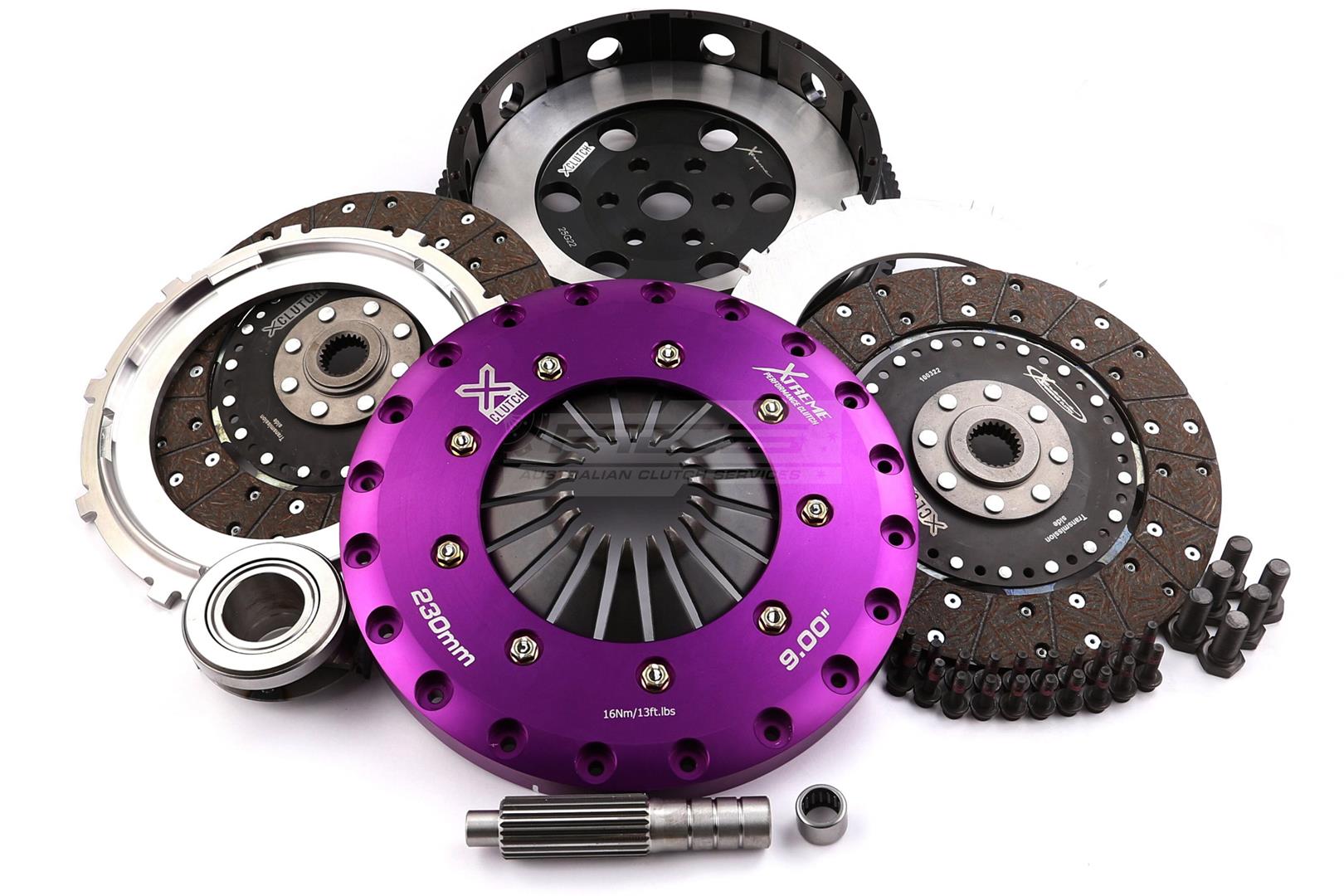

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26.2
Torque (Nm) 1200
Flywheel Step +3.8mm
Design Twin Plate
Stage Multiplate - street use only
Tech Bulletins
Clamp Load
Recommended for High horsepower street driven vehicles
Ring Gear Tooth count
Additional infotmation Conversion from dual-mass flywheel to single-mass flywheel
Compatibility
Mazda 3 2.3 DiSi Turbo MPS (BK3P) 2006.06-2009.06 L3YH 2261 Petrol 184 kW 250 BHP (2006.06 - 2009.06)
Mazda 3 2.3 MPS Turbo (BK14) 2006.12-2009.06 L3M6 2261 Petrol 191 kW 260 BHP (2006.12 - 2009.06)
Mazda 3 2.3 MPS Turbo (BL14) 2008.12-2014.09 L3Y7 2261 Petrol 191 kW 260 BHP (2008.12 - 2014.09)
Mazda 6 2.3 MPS Turbo (GG3P) 2005.12-2007.08 L3KG 2261 Petrol 191 kW 260 BHP (2005.12 - 2007.08)
Mazda CX-7 2.3 MZR DISI Turbo AWD (ER3P) 2007.10-2009.08 L3-VDT 2261 Petrol 190 kW 258 BHP (2007.10 - 2009.08)
Mazda CX-7 2.3 MZR DISI Turbo AWD (ER3P) 2009.06-2013.03 L3-VDT 2261 Petrol 191 kW 260 BHP (2009.06 - 2013.03)
Mazda CX-7 2.5 MZR (ER10L) 2009.07-2013.03 L5-VE 2488 Petrol 120 kW 163 BHP (2009.07 - 2013.03)
