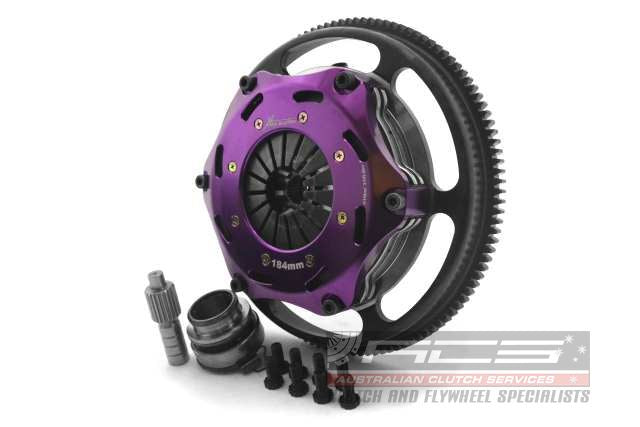

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP Pressure Plate Casting 185-10B-PPC Intermediate Plate 185-10B-IP Pressure Plate Bolt BOLT-8X1.125X50 Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 21
Clutch Disc Spline Diameter (mm) 29.8
Torque (Nm) 1220
Flywheel Step +2.5mm
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins TSB-185-2-XTSB-205TSB-274
Clamp Load
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Lotus Exige 3.5 2012-2021 2GR-FE 3456 Petrol (2012 - 2021)
Lotus Evora 3.5 2009-2016 2GR-FE 3456 Petrol 206 kW 280 BHP(2009-2016)
Lotus Evora 3.5 S 2010.12-2016.04 2GR-FE 3456 Petrol 258 kW 351 BHP (2010.12-2016.04)
