Xtreme Performance - sprung ceramic kit /-1B
Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 320Nm
  • Clamp load 500kg 60% Increased over standard
  • Sprung Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

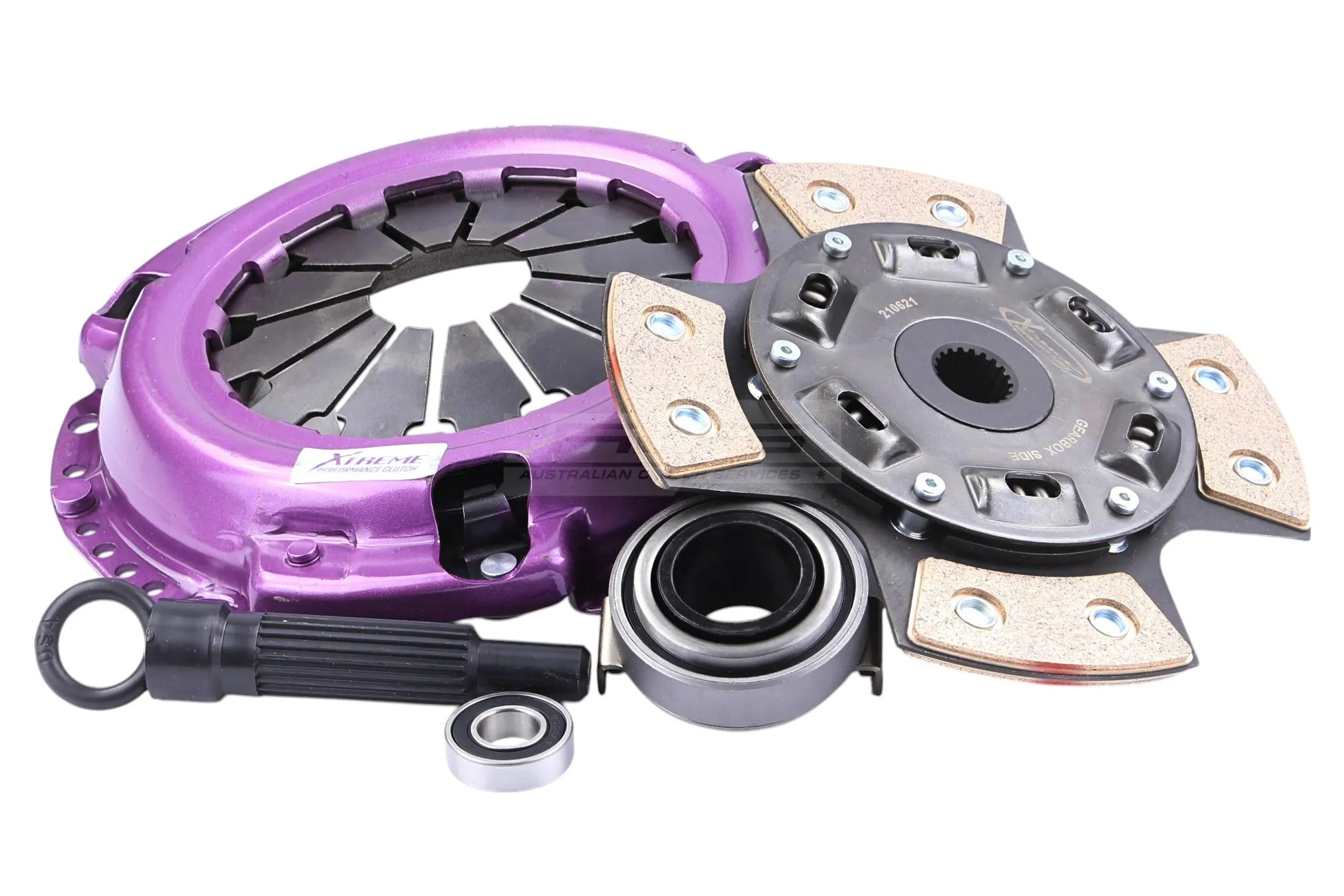

What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 200
Clutch Disc Spline Count 20
Clutch Disc Spline Diameter (mm) 22
Torque (Nm) 320
Flywheel Step -.65mm/.025""
Design Single Plate
Stage Stage 2
Tech Bulletins
Clamp Load 500Kg (60% inc.)
Recommended for Track - Stage 2
Ring Gear Tooth count
Additional infotmation
Compatibility
Honda Civic Gen. V | 1.3 16V (EG3) 1991.10-1995.11 D13B2 1343 Petrol 55 kW 75 BHP (1991.10 - 1995.11) 320 Track Use Not included
Honda Civic Gen. V | 1.5 i 16V (EG4) 1991.10-1995.11 D15Z1, D15B2, D15B3, D15Z2, D15B4 1493 Petrol 66 kW 90 BHP (1991.10 - 1995.11) 320 Track Use Not included
Honda Civic Gen. IX | 1.4 i-VTEC (FK1) 2012.02-2016.01 L13Z4 1339 Petrol 73 kW 99 BHP (2012.02 - 2016.01) 320 Track Use Not included
Honda Civic Gen. V | 1.3 (EG7) 1992.01-1992.12 D13B2 1343 Petrol 55 kW 75 BHP (1992.01 - 1992.12) 320 Track Use Not included
Honda Civic Gen. V | 1.5 (EG8) 1993.06-1995.06 D15Z1 1493 Petrol 88 kW 120 BHP (1993.06 - 1995.06) 320 Track Use Not included
Honda Civic Gen. VI | 1.4 i (EJ9) 1995.11-2001.02 D14A3, D14Z1 1396 Petrol 55 kW 75 BHP (1995.11 - 2001.02) 320 Track Use Not included
Honda Civic Gen. VI | 1.4 i S (EJ9) 1995.11-2001.02 D14A4, D14Z4, D14Z2 1396 Petrol 66 kW 90 BHP (1995.11 - 2001.02) 320 Track Use Not included
Honda Civic Gen. VI | 1.5 i (EK3) 1995.11-2001.02 D15Z6, D15Z4 1493 Petrol 84 kW 114 BHP (1995.11 - 2001.02) 320 Track Use Not included
Honda Civic Gen. VI | 1.6 i (EK1) 1995.10-2000.09 D16Y4 1590 Petrol 88 kW 120 BHP (1995.10 - 2000.09) 320 Track Use Not included
Honda Civic Gen. VI | 1.6 i (EK1) 1995.11-2001.02 D16Y5 1590 Petrol 84 kW 114 BHP (1995.11 - 2001.02) 320 Track Use Not included
Honda Civic Gen. VI | 1.5 i (EK3) 1995.11-2001.02 D15Z6 1493 Petrol 84 kW 114 BHP (1995.11 - 2001.02) 320 Track Use Not included
Honda Civic Gen. VI | 1.5 i (EK3) 1995.09-1999.08 D15B 1493 Petrol 96 kW 131 BHP (1995.09 - 1999.08) 320 Track Use Not included
Honda Civic Gen. VI | 1.6 (EK1, EJ6) 1995.10-2000.09 D16Y4 1590 Petrol 88 kW 120 BHP (1995.10 - 2000.09) 320 Track Use Not included
Honda Civic Gen. VII | 1.4 i (EP1, EU7) 2001.02-2005.09 D14Z6 1396 Petrol 55 kW 75 BHP (2001.02 - 2005.09) 320 Track Use Not included
Honda Civic Gen. VII | 1.4 iS (EP1, EU5, EU7) 2000.11-2005.09 D14Z5, D14Z6 1396 Petrol 66 kW 90 BHP (2000.09 - 2005.09) 320 Track Use Not included
Honda Civic Gen. VII | 1.4 (ES4) 2000.12-2005.09 D14Z5 1396 Petrol 66 kW 90 BHP (2000.12 - 2005.09) 320 Track Use Not included
Honda Civic Gen. VIII | 1.4 (FK1, FN4) 2008.10-2011.12 L13Z1 1339 Petrol 73 kW 100 BHP (2008.10 - 2011.12) 320 Track Use Not included
Honda Domani 1.5 (MA7) 1992.10-1995.09 D15B3 1493 Petrol 69 kW 94 BHP (1992.10 - 1995.09) 320 Track Use Not included
Honda Domani 1.6 (MB4) 1995.10-1999.09 D16A, D16Z2 1590 Petrol 88 kW 120 BHP (1995.10 - 1999.09) 320 Track Use Not included
Honda HR-V 1.5 (RU1) 2015.08- L15B4 1498 Petrol 96 kW 130 BHP (2015.08 - ) 320 Track Use Not included
Honda Integra 1.6 (DB6) 1993.09-2001.08 ZC1 1590 Petrol 88 kW 120 BHP (1993.09 - 2001.08) 320 Track Use Not included
Honda Integra 1.6 4WD (DB9) 1993.09-2001.08 ZC1 1590 Petrol 88 kW 120 BHP (1993.09 - 2001.08) 320 Track Use Not included
Honda Orthia / Partner 1.3 (EY6) 1995.10-2002.09 D13BG 1343 Petrol 67 kW 91 BHP (1995.10 - 2002.09) 320 Track Use Not included
Honda Orthia / Partner 1.5 (EY7) 1995.10-2002.09 D15B 1493 Petrol 77 kW 105 BHP (1995.10 - 2002.09) 320 Track Use Not included
