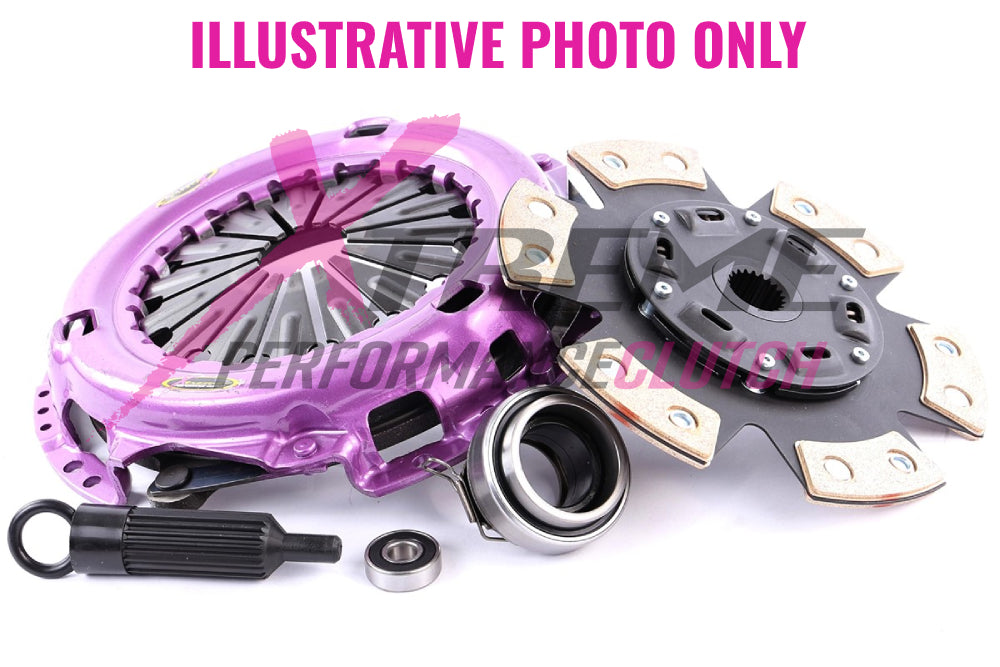

KDE22001-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 360Nm
• Clamp load 600kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	215
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	20.4
Torque (Nm)	360
Flywheel Step	-19.1mm/.752""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	600Kg (30% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Vauxhall	Calibra	2.0 i	1990.06-1997.07	C 20 NE 1998 Petrol 85 kW 115 BHP (1990.06 - 1997.07)
Opel	Calibra	2.0 i (M07)	1989.08-1996.12	C 20 NE 1998 Petrol 85 kW 115 BHP (1989.08 - 1996.12)
Vauxhall	Calibra	2.0 i 4x4	1990.06-1997.07	C 20 NE 1998 Petrol 85 kW 115 BHP (1990.06 - 1997.07)
Opel	Calibra	2.0 i 4x4 (M07)	1990.06-1997.07	C 20 NE 1998 Petrol 85 kW 115 BHP (1990.06 - 1997.07)
Vauxhall	Astra	E | 1.8	1986.01-1990.12	18 SE 1796 Petrol 82 kW 111 BHP (1986.01 - 1990.12)
Vauxhall	Astra	E | 1.8 GTE	1984.09-1991.08	18 E, 18 SE 1796 Petrol 82 kW 112 BHP (1984.09 - 1991.08)
Vauxhall	Astra	E | 1.8 i	1990.01-1991.08	18 E 1796 Petrol 83 kW 112 BHP (1990.01 - 1991.08)
Vauxhall	Astra	E | 2.0	1986.09-1991.08	20 NE 1998 Petrol 85 kW 115 BHP (1986.09 - 1991.08)
Vauxhall	Astra	E | 2.0 GTE	1986.09-1991.08	20 SEH 1998 Petrol 95 kW 129 BHP (1986.09 - 1991.08)
Vauxhall	Astra	E | 2.0 i	1987.01-1991.12	C 20 NE, 20 NE 1998 Petrol 85 kW 115 BHP (1987.01 - 1991.12)
Vauxhall	Astra	E | 2.0 i Cat	1991.01-1993.08	C 20 NE 1998 Petrol 85 kW 115 BHP (1991.01 - 1993.08)
Vauxhall	Astra	F | 1.8 i	1991.09-1998.02	C 18 NZ 1796 Petrol 66 kW 90 BHP (1991.09 - 1998.02)
Vauxhall	Astra	F | 2.0 i	1991.09-1998.02	C 20 NE 1998 Petrol 85 kW 115 BHP (1991.09 - 1998.02)
Vauxhall	Cavalier	Gen. II | 1.8 i	1981.09-1986.08	18 E, 18 SE 1796 Petrol 82 kW 112 BHP (1981.09 - 1986.08)
Vauxhall	Cavalier	Gen. II | 1.8 i	1981.09-1988.08	18 SE 1796 Petrol 82 kW 112 BHP (1981.09 - 1988.08)
Vauxhall	Cavalier	Gen. II | 2.0 i Cat	1986.09-1988.08	C 20 NE 1998 Petrol 85 kW 115 BHP (1986.09 - 1988.08)
Vauxhall	Cavalier	Gen. II | 2.0 SRi 130	1987.03-1988.08	20 SEH 1998 Petrol 95 kW 130 BHP (1987.03 - 1988.08)
Vauxhall	Cavalier	Gen. II | 2000i	1986.09-1988.08	20 SE 1998 Petrol 90 kW 122 BHP (1986.09 - 1988.08)
Vauxhall	Cavalier	Gen. III | 1.8 i Cat	1990.03-1995.11	18 SV, C 18 NZ 1796 Petrol 66 kW 90 BHP (1990.03 - 1995.11)
Vauxhall	Cavalier	Gen. III | 2.0 i	1988.09-1992.10	20 NE 1998 Petrol 85 kW 115 BHP (1988.09 - 1992.10)
Vauxhall	Cavalier	Gen. III | 2.0 i	1988.09-1990.10	C 20 NE, 20 NE 1998 Petrol 85 kW 115 BHP (1988.09 - 1990.10)
Vauxhall	Cavalier	Gen. III | 2.0 i 4x4	1988.09-1992.08	20 SEH 1998 Petrol 95 kW 129 BHP (1988.09 - 1992.08)
Vauxhall	Cavalier	Gen. III | 2.0 i 4x4	1991.01-1992.10	C 20 NE, 20 NE 1998 Petrol 85 kW 115 BHP (1991.01 - 1992.10)
Vauxhall	Cavalier	Gen. III | 2.0 i Cat	1988.09-1995.11	C 20 NE, 20 NE 1998 Petrol 85 kW 115 BHP (1988.09 - 1995.11)
Vauxhall	Cavalier	Gen. III | 2.0 SRi	1988.09-1992.09	20 SEH 1998 Petrol 95 kW 129 BHP (1988.09 - 1992.09)
