EP6114

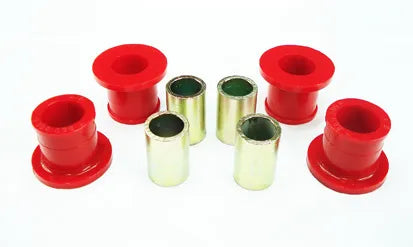

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	BED501
Inner Diameter [mm]	25.6
Material	PU (Polyurethane)
Length [mm]	38.5
Outer Diameter 1 [mm]	35.2
Outer Diameter 2 [mm]	34.5
C/Tube Size	25.4x19.4x38
Flange Thickness 1 [mm]	5
Flange Thickness 2 [mm]	3.5
Tech Info	Includes bushes for BOTH sides

Compatibility
Bedford	Van	CF	CF | 1970-1984	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Bush (4 PKT)
