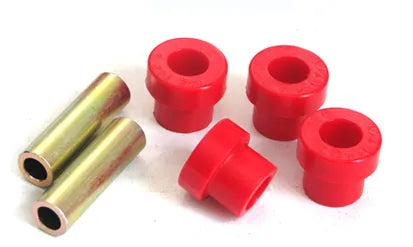

EP6034

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	MAZ142
Outer Diameter [mm]	23
Inner Diameter [mm]	16
C/Tube Size	16x10.2x55 mm
Material	PU (Polyurethane)
Length [mm]	26.5
Flange Thickness [mm]	11

Compatibility
Mazda	323, Incl Protege & Astina	FA4TS Sedan	FA4TS Sedan | 1977-1980	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
Mazda	323, Incl Protege & Astina	FA4TV Wagon	FA4TV Wagon | 1977-1985	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
Mazda	626 & MX6	CB2	CB2 | 1978-1983	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
Mazda	RX7	SA22 Series 1	SA22 Series 1 | 1979-1980	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
Mazda	RX7	SA22 Series 2&3	SA22 Series 2&3 | 1980-1986	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
