EP211

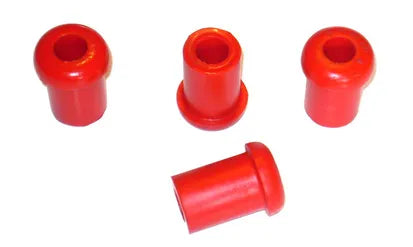

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	CV172
Outer Diameter [mm]	22
Inner Diameter [mm]	12.5
Length [mm]	38.5
Material	PU (Polyurethane)
Flange Thickness [mm]	8.5

Compatibility
Chrysler	Valiant	RV1	RV1 | 1961-1962	BUSHES	Rear Shackle Bushes / Kits	Urethane Leaf Spring Shackle Bush (2 PKT)
Chrysler	Valiant	AP5, AP6, VC, VE	AP5, AP6, VC, VE | 1962-1968	BUSHES	Rear Shackle Bushes / Kits	Urethane Leaf Spring Shackle Bush (2 PKT)
Chrysler	Valiant	VE to VK	VE to VK | 1967-1978	BUSHES	Rear Shackle Upper Bushes	Urethane Leaf Spring Shackle Bush (2 PKT)
Chrysler	Valiant	VE to VK	VE to VK | 1967-1978	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Shackle Bush (2 PKT)
Chrysler	Valiant	CL & CM	CL & CM | 1978-1981	BUSHES	Rear Shackle Upper Bushes	Urethane Leaf Spring Shackle Bush (2 PKT)
