EP1228

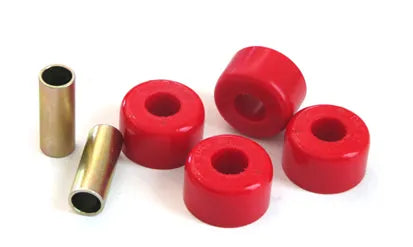

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	9120
Inner Diameter [mm]	16
Length [mm]	22
Material	PU (Polyurethane)
C/Tube Size	16x12.8x42 mm
Outer Diameter 1 [mm]	38
Outer Diameter 2 [mm]	28
Flange Thickness [mm]	3.5

Compatibility
Nissan	1200	Series 110	Series 110 | 1970-1974	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	1200 Ute	B120	B120 | 1969-1985	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	120Y	B210, KB210 & VB210	B210, KB210 & VB210 | 1974-1979	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	620 2WD	K/Pin Susp	K/Pin Susp | 1972-1977	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Stanza	A10	A10 | 1978-1981	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Nissan	Sunny	B310, VB310	B310, VB310 | 1979-1981	BRAKES	Radius / Brake Reaction Rod or Bushes	Urethane Radius Rod Bush (4 PKT)
Volvo	P120 / 1800 Series	P120, P1800	P120, P1800 | 1958-1973	SUSPENSION PARTS	Rear Trailing Arm Upper	Urethane Radius Rod Bush (4 PKT)
