DBA57904.1RS

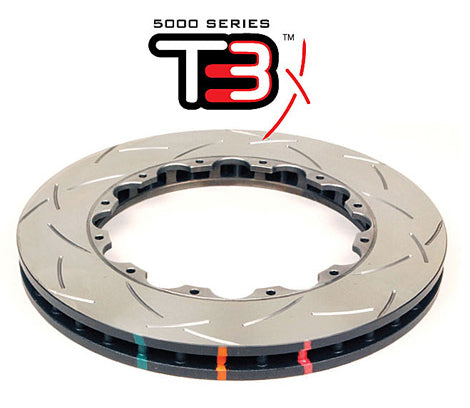

5000 series - T3 Slotted - Rotor Only Right Hand

Diameter [mm]	330
Thickness [mm]	32
Disc Vent	60 Curved Vanes
Annulus [mm] (Maximum useable pad width)	52,5
Pitch Circle Diameter (P.C.D.)	203,2
Inside Diameter [mm]	220
Diameter & Number of Bolt Holes [mm]	6.4 (x12)
Air Gap [mm]	9,5
Offset [mm]	0
Flange Inside Diameter [mm]	190,1
Flange Thickness [mm]	6,3
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Not Included
