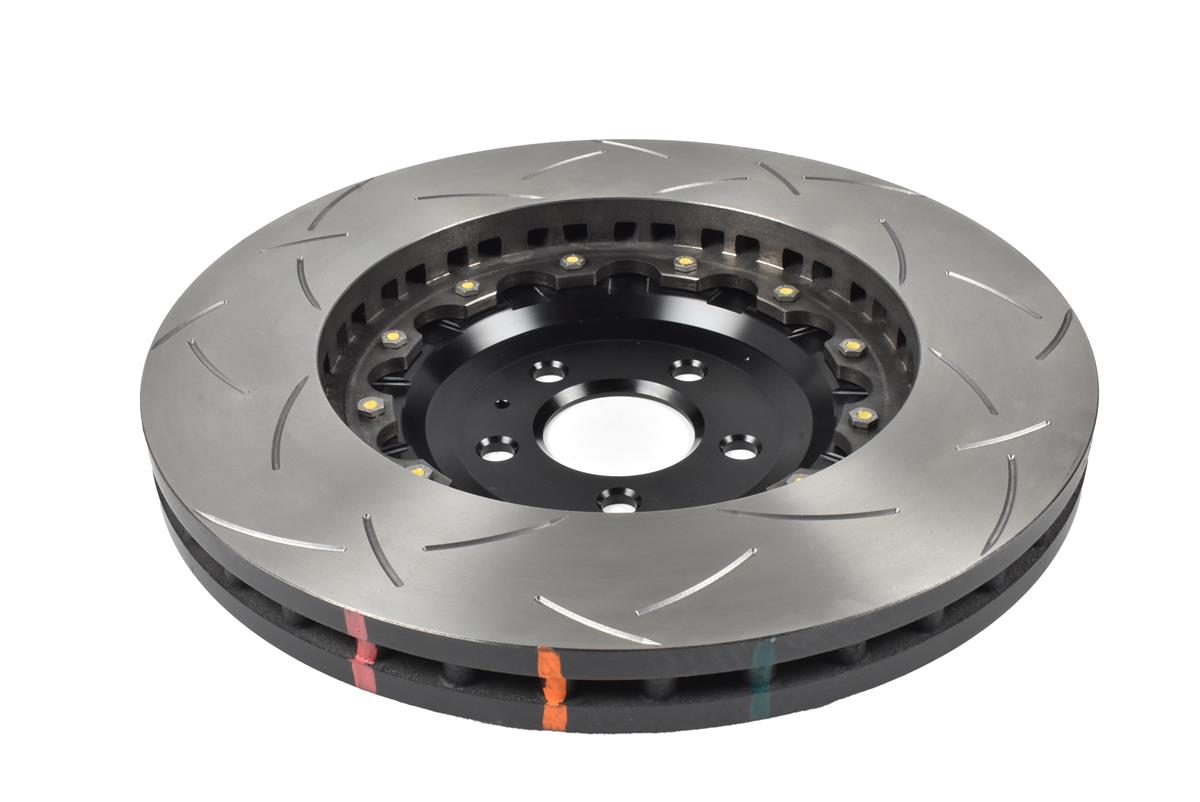

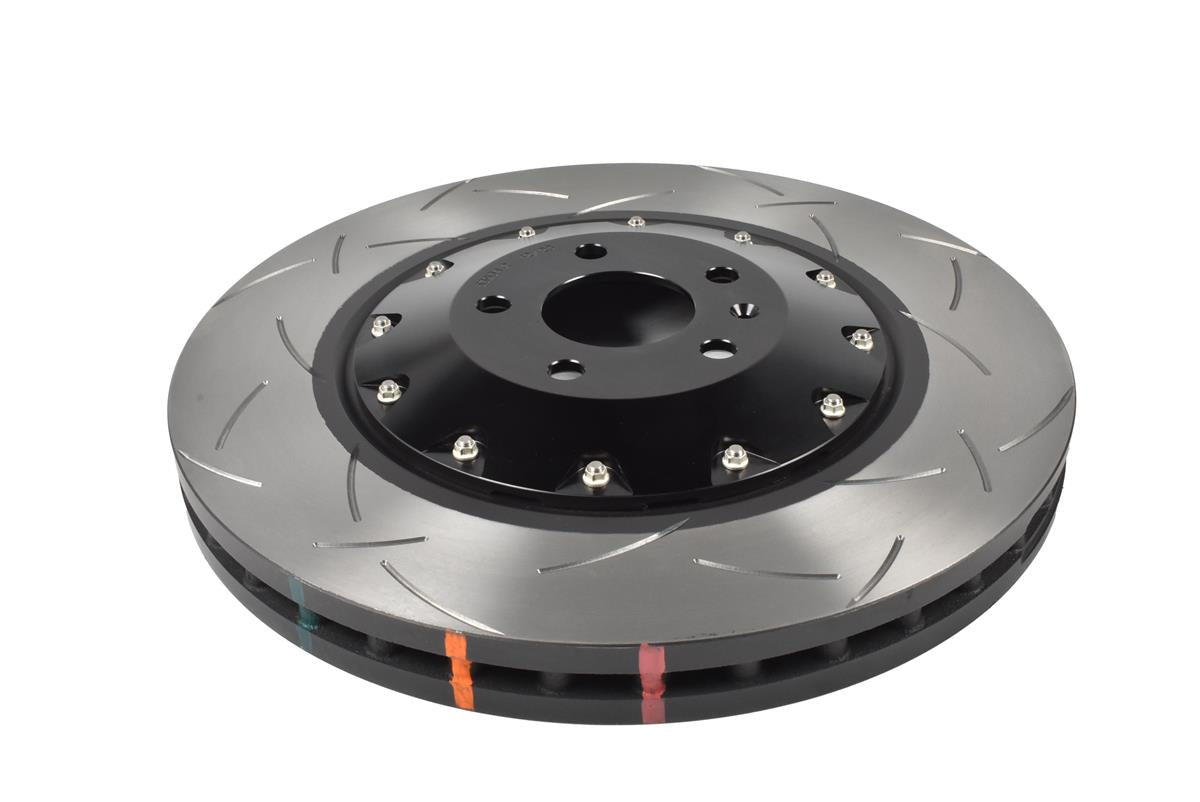

DBA53934BLKS

Feature Description	Advantage	Benefit
"T3 Slot 48 precision CNC machined slots"	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product

Axle	Front
Diameter [mm]	400
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	68
Minimum Thickness [mm]	36
Thickness [mm]	38
Height [mm]	57,2
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Rotor	DBA53934.1S

Compatibility
AUDI	Q7 4M	2.0 Turbo 252BHP (2015-2020)	2015-2020	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	Q7 4M	3.0 TD 218BHP (2015-)	2015-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	Q7 4M	3.0 TD 272BHP (2015-)	2015-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	Q7 4M	3.0 TD Hybrid e-tron 368BHP (2015-)	2015-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	Q8	3.0 TD (45) 231BHP (2018-)	2018-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	Q8	3.0 TD (50) 286BHP (2018-)	2018-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	Q8	3.0 Twin Turbo (55) 340BHP (2018-)	2018-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	SQ7 4M	4.0 Twin TD and Electric Supercharger 435BHP (2016-)	2016-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	SQ8	4.0 Twin Turbo 507BHP (2021-2024)	2021-2024	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	SQ8	4.0 Twin Turbo Diesel and Electric Supercharger 435BHP (2019-2021)	2019-2021	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
AUDI	SQ8	4.0 Twin Turbo Diesel and Electric Supercharger 435BHP (2019-2021)	2019-2021	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
VOLKSWAGEN	Touareg (3rd Gen)	3.0 Turbo 340BHP (2018-)	2018-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
VOLKSWAGEN	Touareg R (3rd Gen)	3.0 R 4motion 462BHP (2020-)	2020-	Brake Caliper: Akebono	Front	Brake Pads: DB15124	Disc Diameter [mm]: 400
