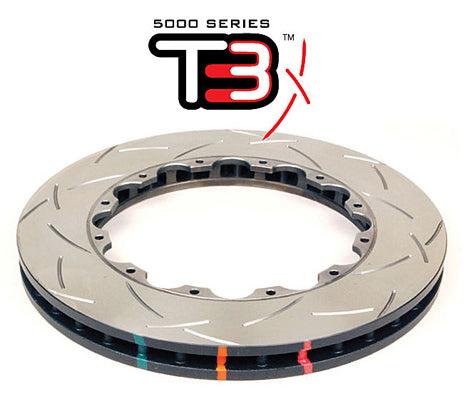

DBA5355.1LS

5000 series - T3 Slotted - Rotor Only Left Hand

Diameter [mm]	282
Thickness [mm]	25,9
Disc Vent	60 Curved Vanes
Annulus [mm] (Maximum useable pad width)	53
Pitch Circle Diameter (P.C.D.)	162,56
Inside Diameter [mm]	177,8
Diameter & Number of Bolt Holes [mm]	6.4 (x10)
Air Gap [mm]	9,9
Offset [mm]	0
Flange Inside Diameter [mm]	146,9
Flange Thickness [mm]	6,35
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included
