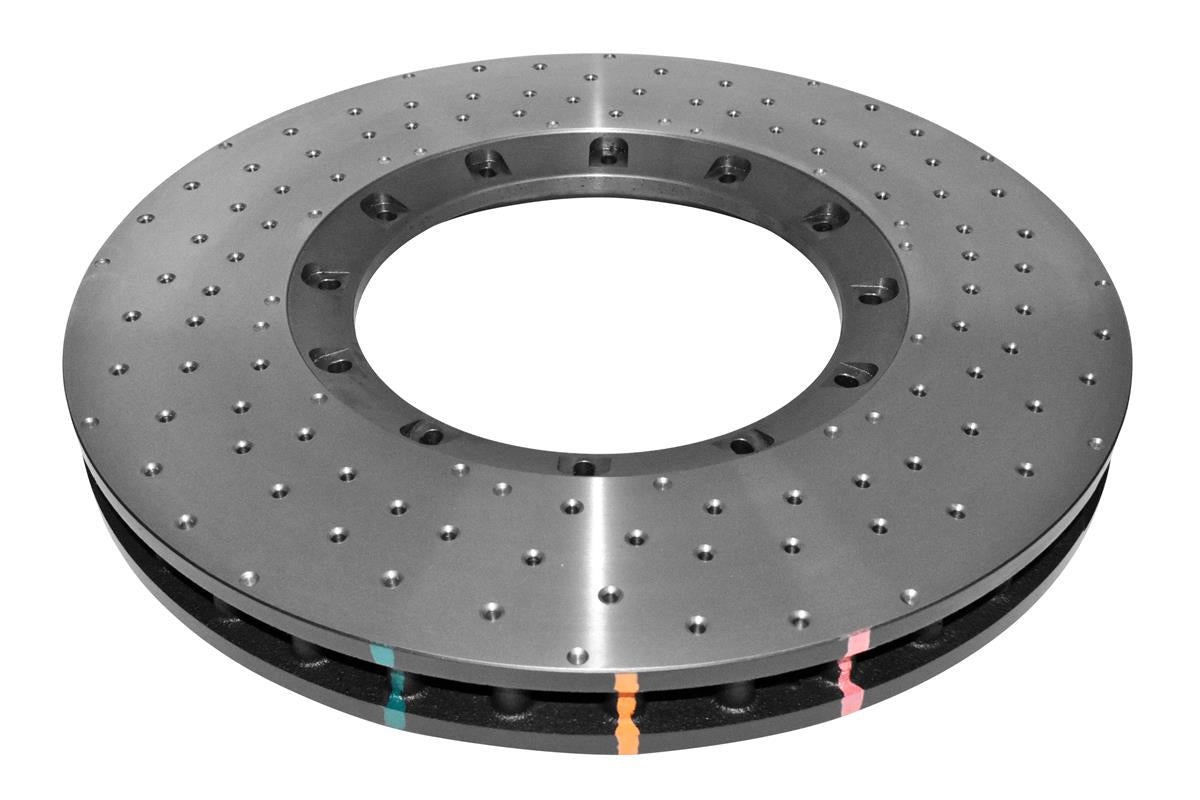

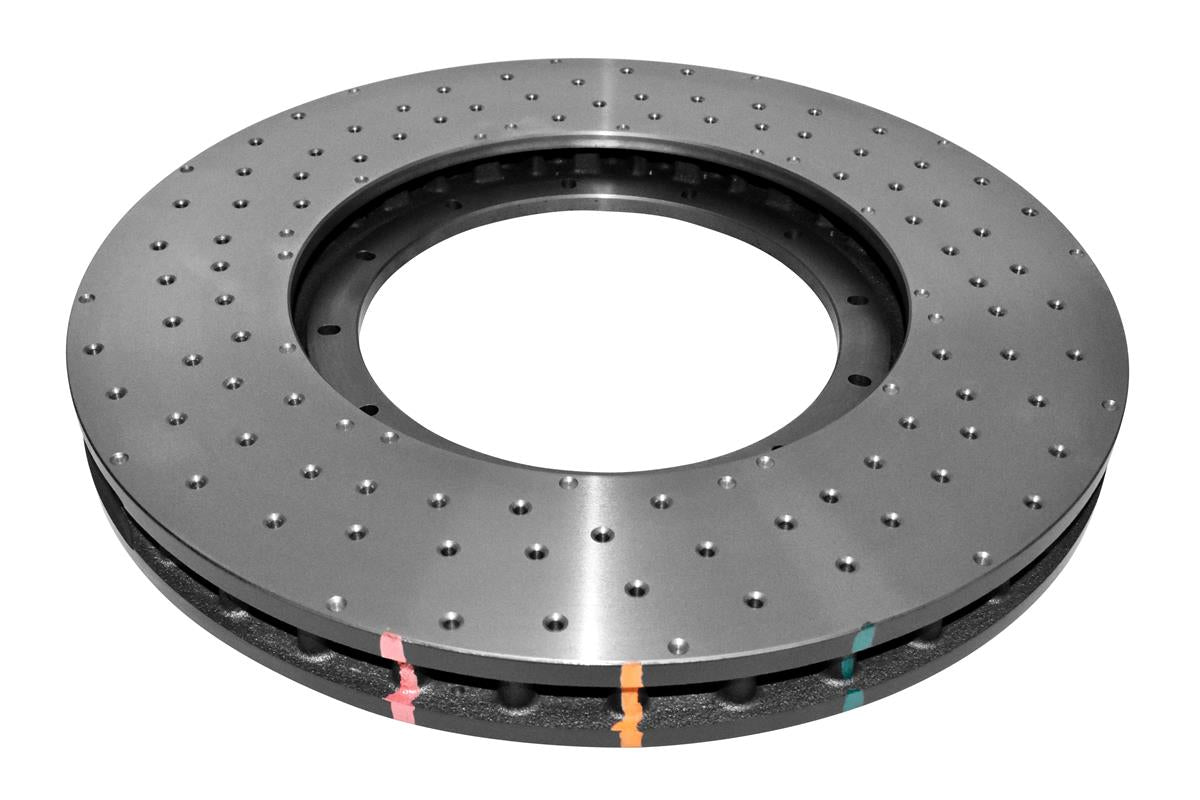

DBA52774.1XD

5000 series - Crossed Drilled, Slotted & Dimpled - Rotor Only

Diameter [mm]	380
Thickness [mm]	36
Disc Vent	Kangaroo Paw
Annulus [mm] (Maximum useable pad width)	77
Pitch Circle Diameter (P.C.D.)	203,2
Inside Diameter [mm]	226
Diameter & Number of Bolt Holes [mm]	6.4 (x12)
Air Gap [mm]	18
Offset [mm]	-18
Flange Inside Diameter [mm]	180
Flange Thickness [mm]	9,5
Hole Type	Elongated Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included
