DBA42657

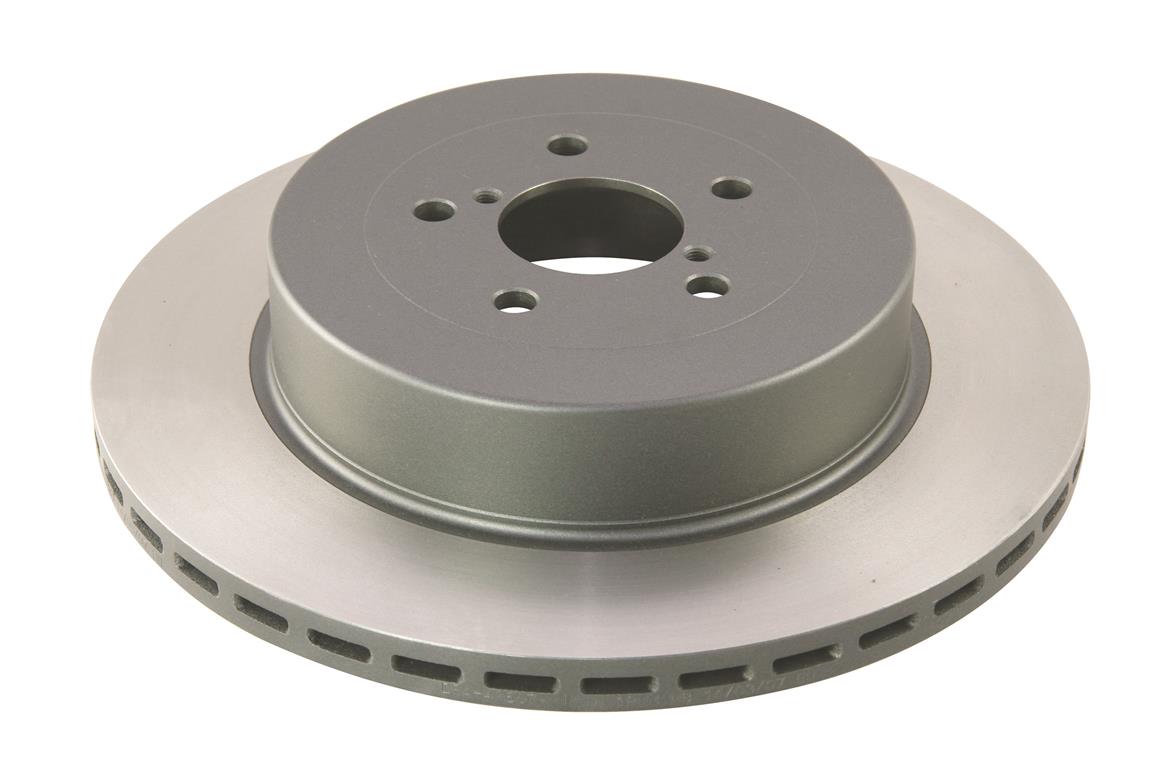

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels.

4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

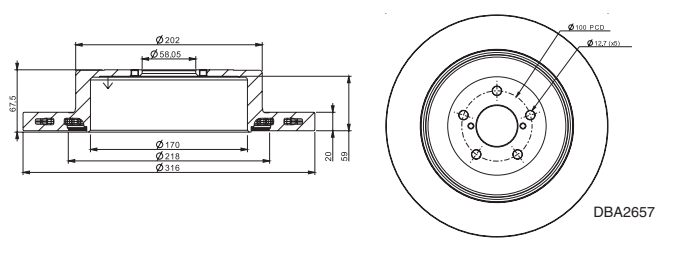

Diameter [mm]	316
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	58
Minimum Thickness [mm]	18
Thickness [mm]	20
Height [mm]	67.5
Pitch Circle [mm]	100
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E11*90R02/06*59755*00

Compatibility
SUBARU	Forester	WRX REAR UPGRADE with 170mm handbrake (1992-)	1992-	Rear	Disc Diameter [mm]: 316
SUBARU	Impreza	WRX REAR UPGRADE with 170mm handbrake (1992-)	1992-	Rear	Disc Diameter [mm]: 316
SUBARU	Liberty	WRX REAR UPGRADE with 170mm handbrake (1992-)	1992-	Rear	Disc Diameter [mm]: 316
