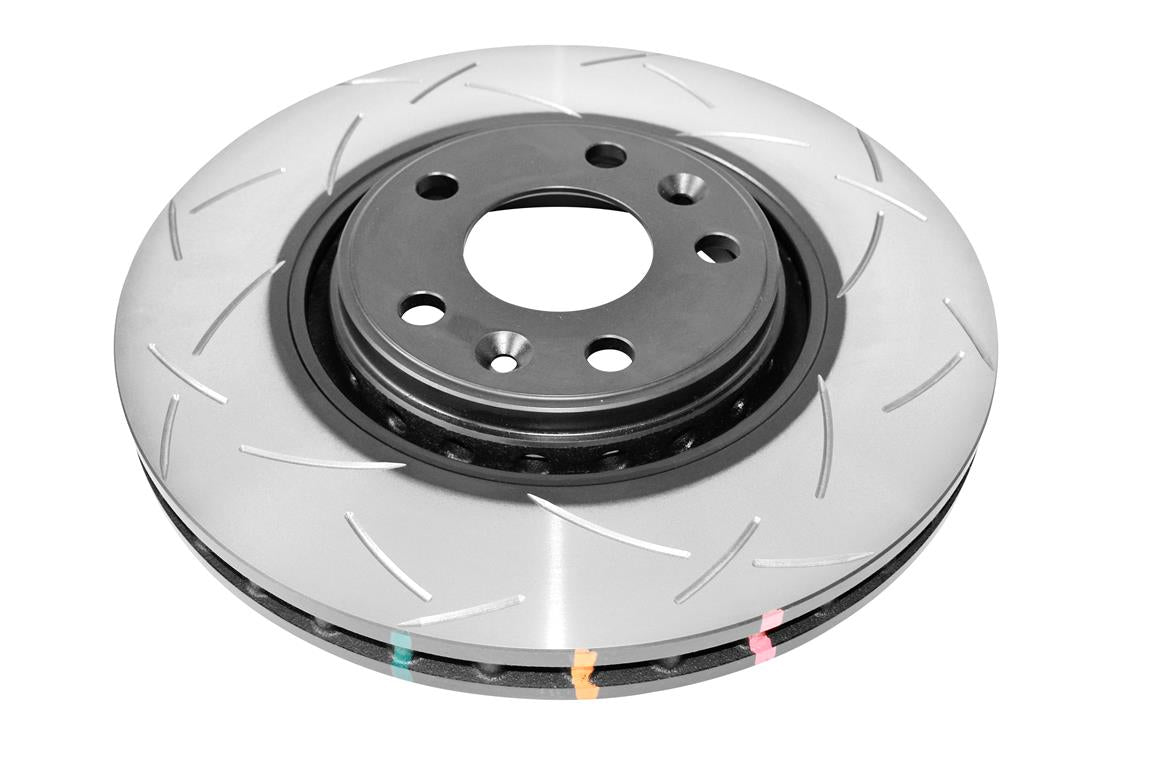

DBA
DBA42368S
DBA42368S
Regular price
€326,30 EUR
Regular price
Sale price
€326,30 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 320 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 68 |
| Minimum Thickness [mm] | 25,4 |
| Thickness [mm] | 28 |
| Height [mm] | 44 |
| Pitch Circle [mm] | 114.3 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60514*00 |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| RENAULT | Clio (Mk4) | 1.6 Turbo RS 200BHP (2012-2019) | 2012-2019 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Clio (Mk4) | 1.6 Turbo RS 220BHP (2015-2019) | 2015-2019 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 1.6 TD 130BHP (2015-) | 2015- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 1.6 TD 130BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 1.6 Turbo 200BHP (2015-2017) | 2015-2017 | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 1.6 Twin TD 160BHP (2015-) | 2015- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 1.6 Twin TD 160BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 1.8 Turbo 225BHP (2017-) | 2017- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 1.8 Turbo 225BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 2.0 TD 160BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 2.0 TD 160BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 2.0 TD 200BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Espace (Mk5) | 2.0 TD 200BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.2 Turbo 115BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.2 Turbo 115BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.2 Turbo 130BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.2 Turbo 130BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.3 Turbo 115BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.3 Turbo 115BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.3 Turbo 140BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.3 Turbo 140BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.3 Turbo 163BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.3 Turbo 163BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.5 TD 110BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.5 TD 110BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.6 TD 130BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.6 TD 130BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.6 TD 160BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.6 TD 160BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.7 TD 120BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.7 TD 120BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.7 TD 150BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 1.7 TD 150BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 2.0 TD 150BHP (2009-2012) | 2009-2012 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Grand Scenic | 2.0 TD 160BHP (2009-2012) | 2009-2012 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 | 2.0 TD 150BHP 4Control (2010-2015) | 2010-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 | 2.0 TD 175BHP (2007-2015) | 2007-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 | 2.0 TD 175BHP 4Control (2010-2015) | 2010-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 | 2.0 TD GT 180BHP (2008-2015) | 2008-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 | 2.0 Turbo 170BHP 4Control (2010-2015) | 2010-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 | 2.0 Turbo GT 205BHP (2008-2015) | 2008-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 Coupe | 2.0 TD 150BHP 4Control (2010-2015) | 2010-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 Coupe | 2.0 TD 175BHP (2007-2015) | 2007-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 Coupe | 2.0 TD 175BHP 4Control (2010-2015) | 2010-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 Coupe | 2.0 TD GT 180BHP (2008-2015) | 2008-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 Coupe | 2.0 Turbo 170BHP 4Control (2010-2015) | 2010-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 Coupe | 2.0 Turbo GT 205BHP (2008-2015) | 2008-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 Coupe | 3.0 TD 235BHP (2008-2015) | 2008-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Laguna 3 Coupe | 3.5 238BHP (2008-2015) | 2008-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Latitude | 3.0 TD 240BHP (2010-2015) | 2010-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Latitude | 3.5 240BHP (2010-2015) | 2010-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Estate (Mk3) Sport Tour | 2.0 Turbo 220BHP (2012-2016) | 2012-2016 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Estate (Mk4) Grand Tour | 1.3 Turbo 160BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Estate (Mk4) Grand Tour | 1.3 Turbo 160BHP Electric Handbrake (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Estate (Mk4) Grand Tour | 1.6 Turbo 165BHP (2017-) | 2017- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Estate (Mk4) Grand Tour | 1.6 Turbo 165BHP Electric Handbrake (2017-) | 2017- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Estate (Mk4) Grand Tour | 1.6 Turbo 205BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Estate (Mk4) Grand Tour | 1.6 Turbo 205BHP Electric Handbrake (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Hatch (Mk4) | 1.3 Turbo 160BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Hatch (Mk4) | 1.3 Turbo 160BHP Electric Handbrake (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Hatch (Mk4) | 1.6 Turbo 205BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Megane Hatch (Mk4) | 1.6 Turbo 205BHP Electric Handbrake (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.2 Turbo 115BHP (2016-2018) | 2016-2018 | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.2 Turbo 130BHP (2016-2018) | 2016-2018 | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.3 Turbo 115BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.3 Turbo 115BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.3 Turbo 140BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.3 Turbo 140BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.3 Turbo 160BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.3 Turbo 160BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.5 TD 110BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.5 TD 110BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.5 TD Hybrid 110BHP (2017-) | 2017- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.5 TD Hybrid 110BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.6 TD 130BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.6 TD 130BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.6 TD 160BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.6 TD 160BHP (2017-) | 2017- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.7 TD 120BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.7 TD 120BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.7 TD 150BHP (2018-) | 2018- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
| RENAULT | Scenic | 1.7 TD 150BHP (2018-) | 2018- | Brake Caliper: Sumitomo | Front | Disc Diameter [mm]: 320 |
| RENAULT | Talisman | 1.6 Turbo 200BHP (2015-) | 2015- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Talisman | 1.6 Twin TD 160BHP (2015-) | 2015- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Talisman Grandtour | 1.6 Turbo 200BHP (2016-) | 2016- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 320 |
| RENAULT | Talisman Grandtour | 1.6 Twin TD 160BHP (2016-) | 2016- | Brake Caliper: Akebono | Front | Disc Diameter [mm]: 320 |
