DBA

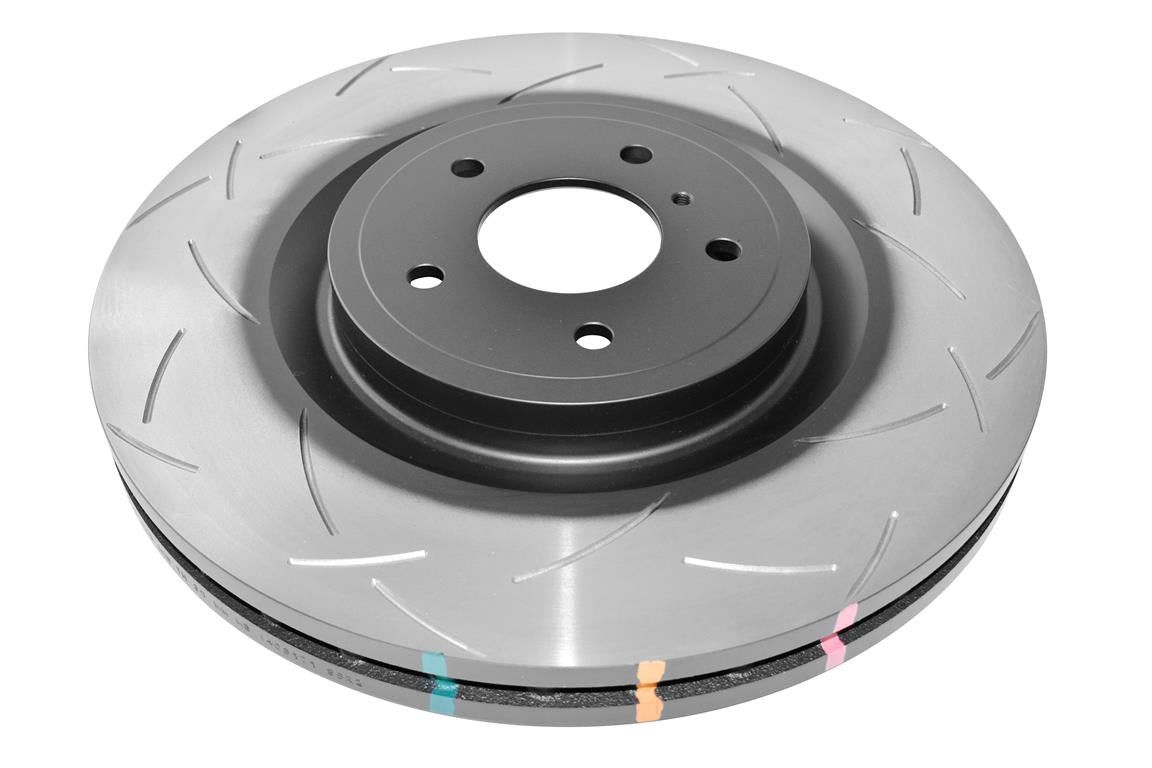

DBA42314S
DBA42314S
Regular price
€326,30 EUR
Regular price
Sale price
€326,30 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 354,6 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 68 |
| Minimum Thickness [mm] | 30 |
| Thickness [mm] | 32 |
| Height [mm] | 49.5 |
| Pitch Circle [mm] | 114.3 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60535*00 |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| INFINITI | FX30D | 3.0 TD (2010-2013) | 2010-2013 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | FX37 | 3.7 (2008-2013) | 2008-2013 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | FX50 | 5.0 (2008-2013) | 2008-2013 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | G37 | 3.7 (2008-2014) | 2008-2014 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | M30D | 3.0 TD (2010-2014) | 2010-2014 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | M35h | 3.5 Hybrid (2011-2014) | 2011-2014 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | M37 | 3.7 (2010-2014) | 2010-2014 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q50 | 3.0 Twin Turbo 304BHP (2016-2020) | 2016-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q50 | 3.0 Twin Turbo 405BHP (2016-2020) | 2016-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q50 Hybrid | 3.5 Hybrid 360BHP (2013-2020) | 2013-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q50 Hybrid | 3.5 Hybrid 360BHP AWD (2013-2020) | 2013-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q60 | 3.7 S 320BHP (2013-2020) | 2013-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q60 Coupe | 2.0 Turbo 211BHP (2016-2020) | 2016-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q60 Coupe | 3.0 Twin Turbo 405BHP (2016-2020) | 2016-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q70 | 2.2 TD 170BHP (2014-2020) | 2014-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q70 | 3.0 TD 238BHP (2014-2020) | 2014-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | Q70 | 3.7 320BHP (2014-2020) | 2014-2020 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | QX70 | 3.0 TD 238BHP (2013-2017) | 2013-2017 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| INFINITI | QX70 | 5.0 390BHP (2013-2017) | 2013-2017 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| NISSAN | 370Z | 3.7 330BHP (2009-2012) | 2009-2012 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| NISSAN | 370Z | 3.7 330BHP (2012-) | 2012- | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| NISSAN | 370Z Nismo | 3.7 355BHP (2009-) | 2009- | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
| NISSAN | Skyline Coupe (V36) V36 | 3.7 Type-S (2007-2014) | 2007-2014 | Front | Brake Pads: DB2400 | Disc Diameter [mm]: 354.6 |
