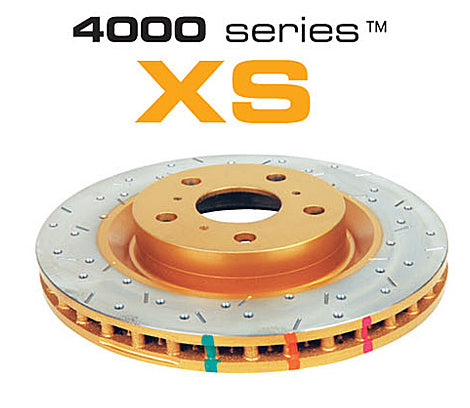

DBA42132XS

Feature Description	Advantage	Benefit
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product
CBN (Cubic Boron Nitride) machine turned	Reduced DTV (Disc thickness variation) and parallelism	Less occurrence of brake shudder or brake pedal

Ideal for enthusiasts looking for an upgrade over stock rotors.

Premium non-directional cross-drilled and slotted design of DBA brake rotors increases the number of outgassing exit points allowing more brake pad friction gasses to escape through.

Brake rotors from DBA Street Series feature with "Kangaroo Paw” – 144 diamond and tear drop pillar ventilation system. Increased surface area results in greater heat dissipation and thus minimises brake fade and increases braking effectiveness of disc brake. CBN (Cubic Boron Nitride) machine turned reduces DTV (Disc thickness variation) and parallelism which brings less occurrence of brake shudder or brake pedal ‘judder’.

While providing a similar performance benefit to the T3 slot, the 4000 XS Series is a popular alternative for open wheel and show cars. We recommend the T3 slot design for more intensive braking applications.

Diameter [mm]	301,5
Disc Vent	Kangaroo Paw
Number of Holes	6
Inner Diameter [mm]	98
Minimum Thickness [mm]	30
Thickness [mm]	32
Height [mm]	60.7
Pitch Circle [mm]	139.7
Stage	Stage 3
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Compatibility
FORD	Ranger	2.0 TD 130BHP 4WD (2019-2023)	2019-2023	Front	Brake Pads: DB2074	Disc Diameter (mm):302
FORD	Ranger	2.0 TD 170BHP 4WD (2019-2023)	2019-2023	Front	Brake Pads: DB2074	Disc Diameter (mm):302
FORD	Ranger	2.0 Twin TD 213BHP 4WD (2019-2023)	2019-2023	Front	Brake Pads: DB2074	Disc Diameter (mm):302
FORD	Ranger	2.2 TD 2WD (2011-2019)	2011-2019	Front	Brake Pads: DB2074	Disc Diameter [mm]: 301.5
FORD	Ranger	2.2 TD 4WD (2011-2019)	2011-2019	Front	Brake Pads: DB2074	Disc Diameter [mm]: 301.5
FORD	Ranger	3.2 TD 4WD (2011-2019)	2011-2019	Front	Brake Pads: DB2074	Disc Diameter [mm]: 301.5
FORD	Ranger (4th Gen)	2.0 Turbo Diesel 170BHP (2023-) rear drums	2022-	Front	Brake Pads: DB2074	Disc Diameter (mm):301,5
MAZDA	BT-50	3.2 TD (2011-2020)	2011-2020	Front		Disc Diameter [mm]: 301,5
VOLKSWAGEN	Amarok (Mk2)	2.0 Turbo Diesel 170BHP (2022-) rear drums	2022-	Front	Brake Pads: DB2074	Disc Diameter (mm):301,5
