DBA
DBA42119S
DBA42119S
Regular price
€223,08 EUR
Regular price
Sale price
€223,08 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |

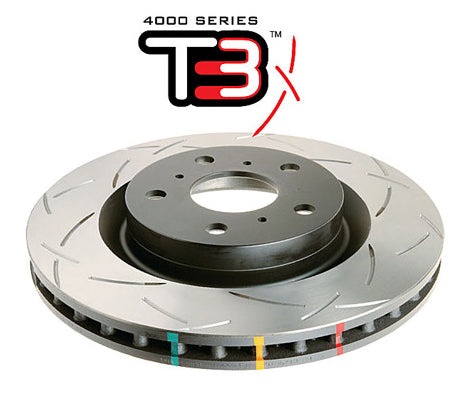

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 265 |
| Disc Vent | Solid |
| Number of Holes | 5 |
| Inner Diameter [mm] | 64 |
| Minimum Thickness [mm] | 9 |
| Thickness [mm] | 11 |
| Height [mm] | 41 |
| Pitch Circle [mm] | 107.95 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| FORD | C-Max (Mk1) | 1.6 100BHP (2007-2011) | 2007-2011 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | C-Max (Mk1) | 1.6 TD 109BHP (2007-2011) | 2007-2011 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | C-Max (Mk1) | 1.6 TD 90BHP (2007-2011) | 2007-2011 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | C-Max (Mk1) | 1.8 125BHP (2007-2011) | 2007-2011 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | Focus (Mk2) | 1.6 (2005-2011) | 2005-2011 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | Focus (Mk2) | 1.6 TD (2005-2011) | 2005-2011 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | Focus CC | 1.6 (2006-2011) | 2006-2011 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | Focus C-Max | 1.6 (2003-2005) | 2003-2005 | Brake Caliper: ATE | Rear | Brake Pads: DB1665 | Disc Diameter [mm]: 265 |
| FORD | Focus C-Max | 1.6 (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | Focus C-Max | 1.8 (2003-2005) | 2003-2005 | Brake Caliper: ATE | Rear | Brake Pads: DB1665 | Disc Diameter [mm]: 265 |
| FORD | Focus C-Max | 1.8 (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
| FORD | Focus C-Max | 2.0 (2003-2005) | 2003-2005 | Brake Caliper: ATE | Rear | Brake Pads: DB1665 | Disc Diameter [mm]: 265 |
| FORD | Focus C-Max | 2.0 (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 265 |
