DBA
DBA2855S
DBA2855S
Regular price
€177,94 EUR
Regular price
Sale price
€177,94 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |

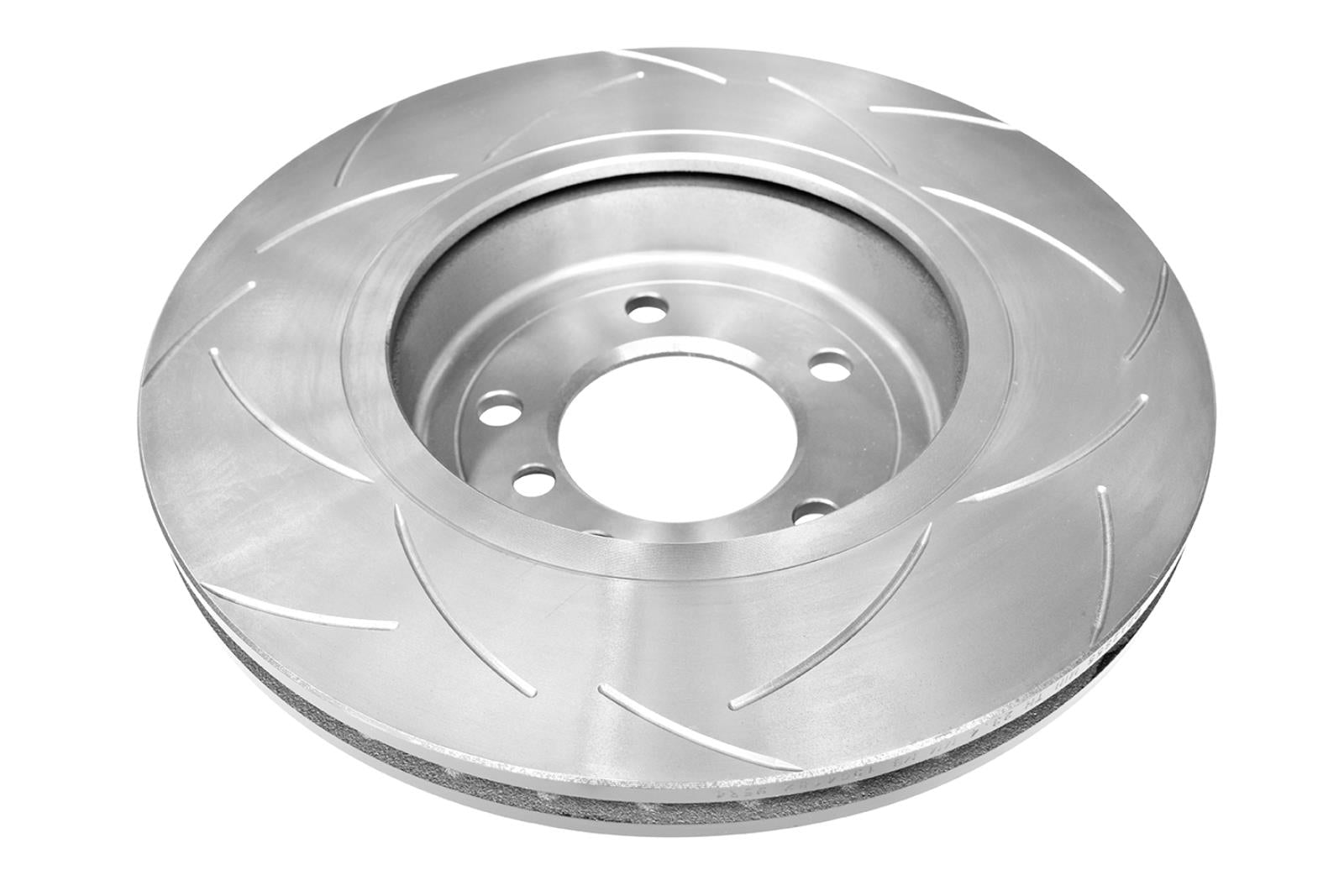

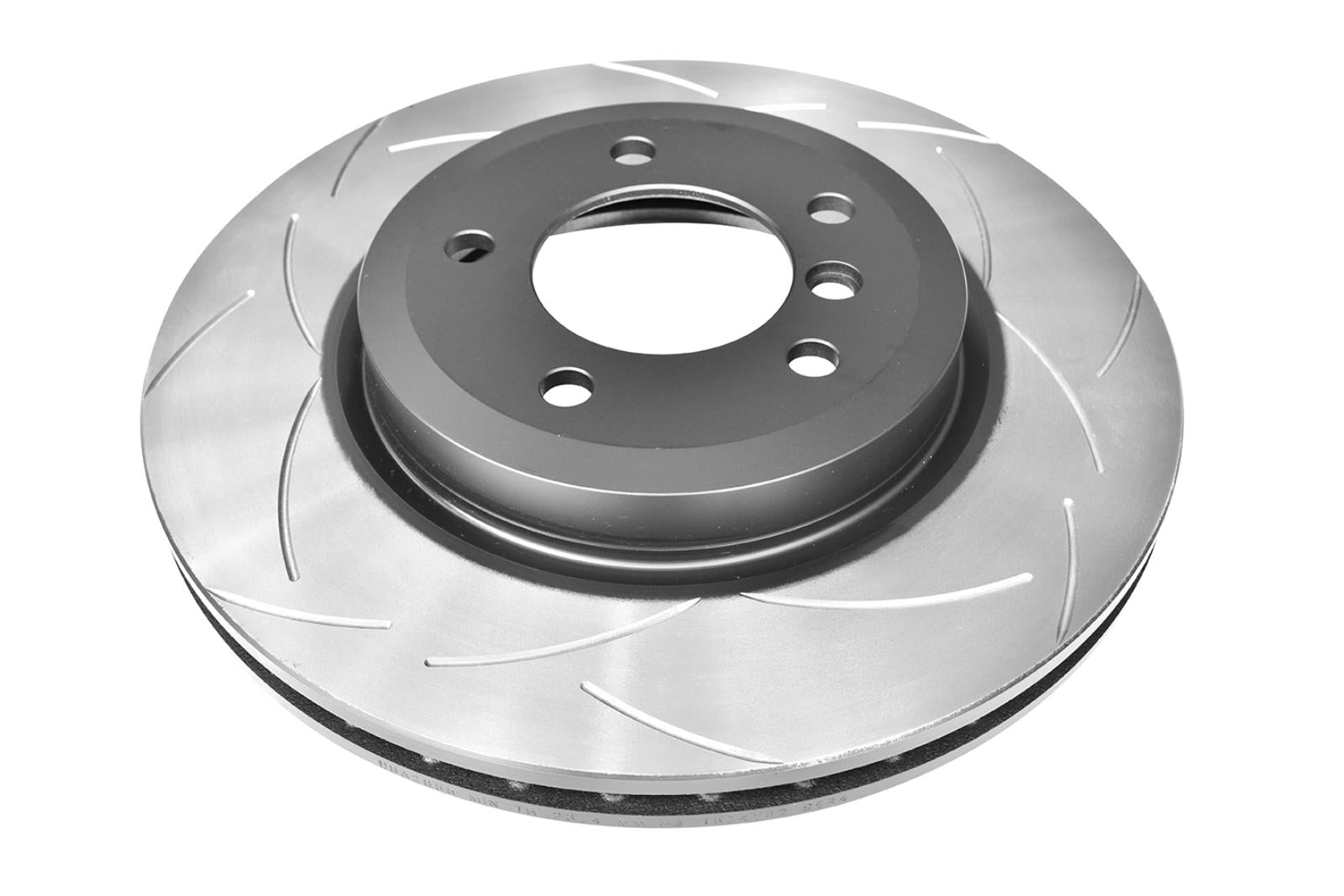

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 325 |
| Disc Vent | Vented |
| Number of Holes | 5 |
| Inner Diameter [mm] | 79 |
| Minimum Thickness [mm] | 23,4 |
| Thickness [mm] | 25 |
| Height [mm] | 52 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60523*00 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | 3 Series (E46) 330 | 2.9 TD (1999-2005) | 1999-2005 | Brake Caliper: ATE | Front | Brake Pads: DB1522 | Disc Diameter [mm]: 325 |
| BMW | 3 Series (E46) 330 | 3.0 (2000-2005) | 2000-2005 | Brake Caliper: ATE | Front | Brake Pads: DB1364 | Disc Diameter [mm]: 325 |
| BMW | 3 Series (E46) 330 | 3.0 TD (2003-2007) | 2003-2007 | Brake Caliper: ATE | Front | Brake Pads: DB1522 | Disc Diameter [mm]: 325 |
| BMW | 3 Series (E46) 330 | 3.0 Touring (2000-2005) | 2000-2005 | Brake Caliper: ATE | Front | Brake Pads: DB1522 | Disc Diameter [mm]: 325 |
| BMW | 3 Series (X 4WD E46) 330 | 3.0 (2000-2007) | 2000-2007 | Brake Caliper: ATE | Front | Brake Pads: DB1364 | Disc Diameter [mm]: 325 |
| BMW | 3 Series (X 4WD E46) 330 | 3.0 TD (2000-2005) | 2000-2005 | Brake Caliper: ATE | Front | Brake Pads: DB1364 | Disc Diameter [mm]: 325 |
| BMW | Z4 E85 | 3.0 Si 265BHP (2006-2009) | 2006-2009 | Brake Caliper: ATE | Front | Brake Pads: DB1522 | Disc Diameter [mm]: 325 |
| BMW | Z4 E86 | 3.0 Si 265BHP (2006-2008) | 2006-2008 | Brake Caliper: ATE | Front | Brake Pads: DB1522 | Disc Diameter [mm]: 325 |
| BMW (ALPINA) | B3 (E46) | 3.3 S (2002-2006) | 2002-2006 | Brake Caliper: TRW | Front | Disc Diameter [mm]: 325 | |
| BMW (ALPINA) | B3 (E46) | 3.3 S (2002-2006) | 2002-2006 | Brake Caliper: ATE | Front | Brake Pads: DB1364 | Disc Diameter [mm]: 325 |
| BMW (ALPINA) | Roadster S (E85) | 3.3 (2004-2005) | 2004-2005 | Brake Caliper: ATE | Front | Brake Pads: DB1131 | Disc Diameter [mm]: 325 |
