DBA
DBA2650S-10
DBA2650S-10
Regular price
€210,31 EUR
Regular price
Sale price
€210,31 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |

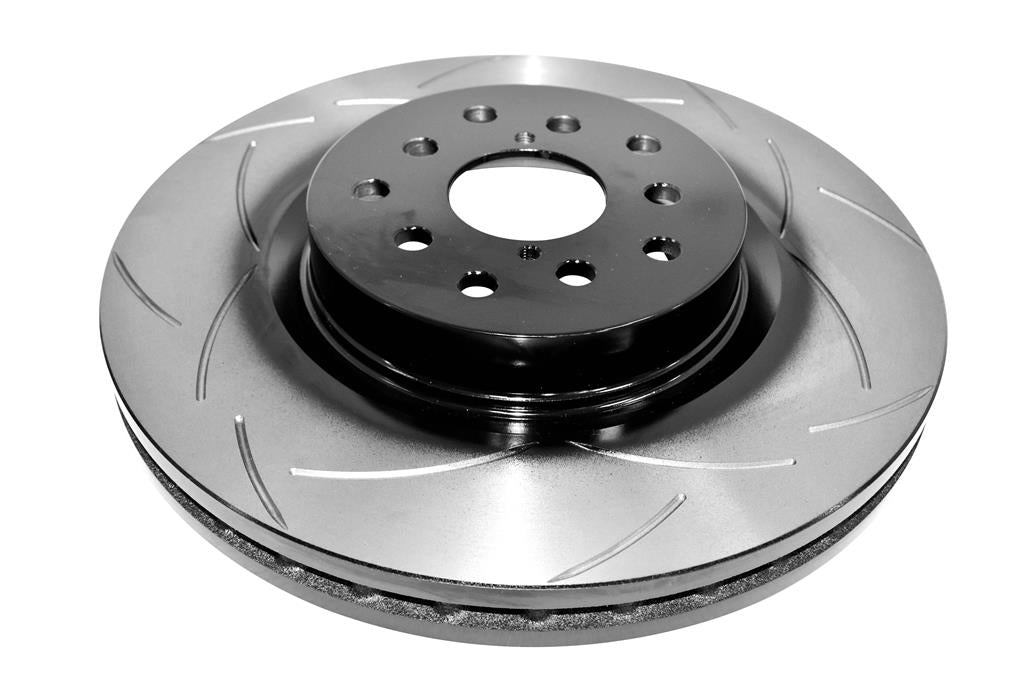

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 316 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 10 |
| Inner Diameter [mm] | 58 |
| Minimum Thickness [mm] | 28 |
| Thickness [mm] | 30 |
| Height [mm] | 56.7 |
| Pitch Circle [mm] | 100 & 114.3 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60521*00 |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| SUBARU | Forester | 2.0 150BHP (2013-2018) | 2013-2018 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Forester | 2.0 TD 147BHP (2013-2018) | 2013-2018 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Forester | 2.0 Turbo 240BHP (2014-2019) | 2014-2019 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Legacy | 2.5 Turbo 265BHP (2009-2014) | 2009-2014 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Legacy | 3.0 245BHP (2003-2010) | 2003-2010 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Levorg VM | 1.6 Turbo 170BHP (2015-2021) | 2015-2021 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Outback | 2.0 TD 150BHP (2015-) | 2015- | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Outback | 2.5 175BHP (2015-) | 2015- | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Outback | 3.6 260BHP (2009-2014) | 2009-2014 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Tribeca | 3.0 (2005-2008) | 2005-2008 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
| SUBARU | Tribeca | 3.6 (2007-2014) | 2007-2014 | Front | Brake Pads: DB1722 | Disc Diameter [mm]: 316 |
