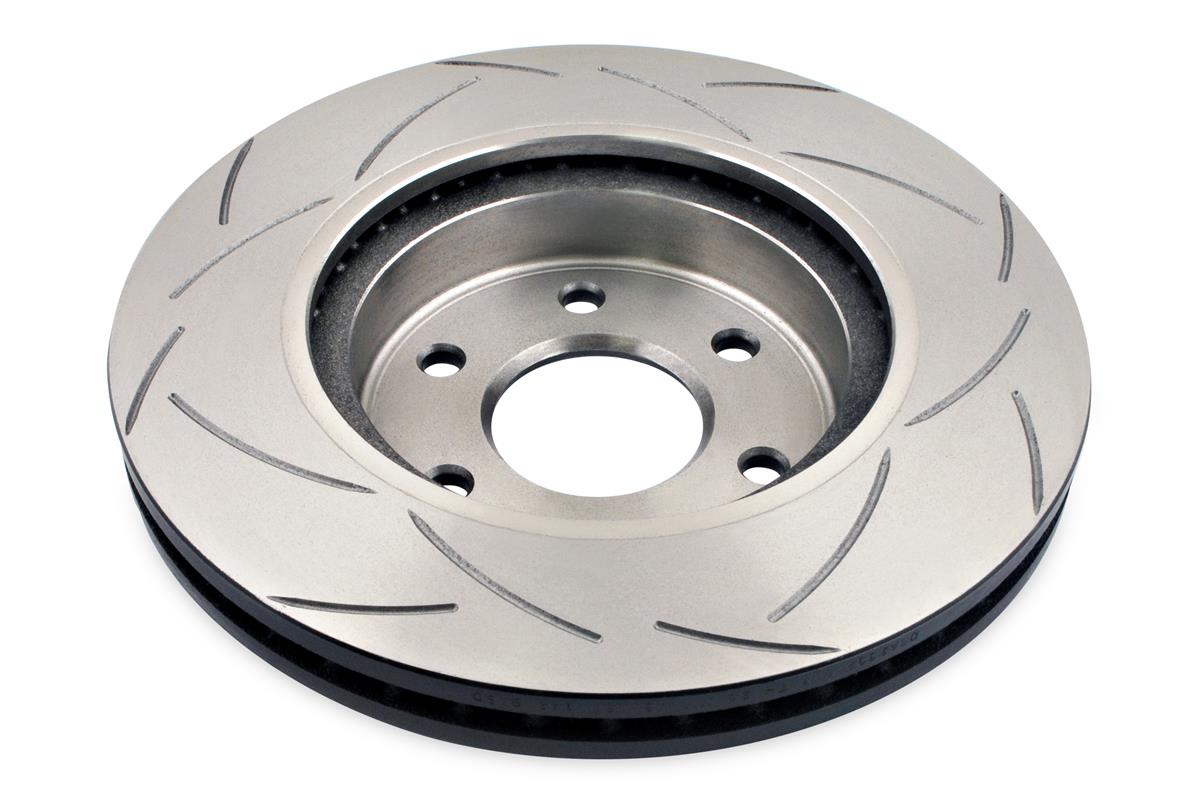

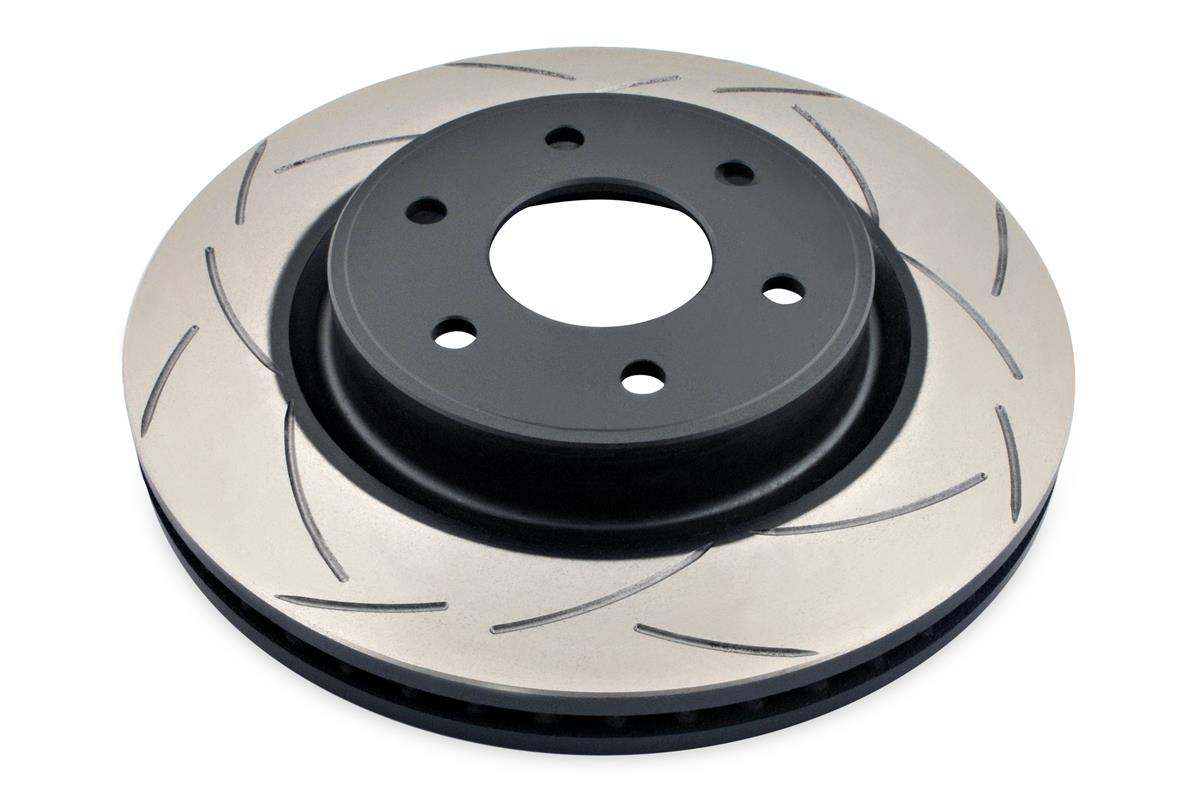

DBA2332S

Feature Description	Advantage	Benefit
"T3 Slot 48 precision CNC machined slots"	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product

Diameter [mm]	295,6
Disc Vent	Vented
Number of Holes	6
Inner Diameter [mm]	68
Minimum Thickness [mm]	26
Thickness [mm]	28
Height [mm]	53
Stage	Stage 2
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E11*90R02/06*60536*00

Compatibility
NISSAN	NP300 Navara D23	2.3 TD 160BHP 2WD (2014-2019)	2014-2019	Brake Caliper: Akebono	Front	Brake Pads: DB2374	Disc Diameter [mm]: 295.6
NISSAN	NP300 Navara D23	2.3 TD 160BHP 4WD (2014-2019)	2014-2019	Brake Caliper: Akebono	Front	Brake Pads: DB2374	Disc Diameter [mm]: 295.6
NISSAN	NP300 Navara D23	2.3 Twin TD 190BHP 4WD (2014-2019)	2014-2019	Brake Caliper: Akebono	Front	Brake Pads: DB2374	Disc Diameter [mm]: 295.6
RENAULT	Alaskan	2.3 TD 190BHP (2017-)	2017-	Brake Caliper: Akebono	Front	Brake Pads: DB2374	Disc Diameter [mm]: 295.6
